Description
BESMAK offers advanced solutions for all varieties of bulding materials testing, including standard and static testing. Backed by more than 30 years of experience, BESMAK provides the technology and the specialized expertise labs need to perform accurate, repeatable tests that ensure materials and components meet standards. These complete solutions include:
• Highly stiff, floor-standing servo-hydraulic load frames for a range of force requirements
• Intuitive, versatile and user-friendly software with powerful test design capabilities
• Digital controllers with high channel density, high capacity and superior configurability
• Rugged, high-performance grips and fixtures

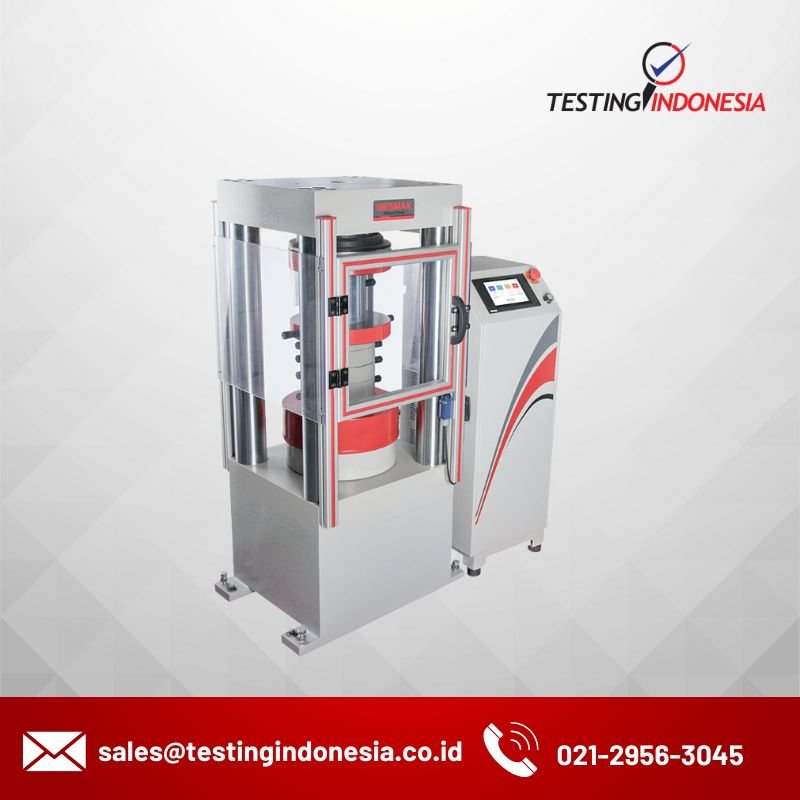

A compression test determines behavior of materials under crushing loads. The specimen is compressed and deformation at various loads is recorded. BESMAK can provide and offer a lot of options for users such as 4-Column and Wall Type Frame Structures, Fully and Semi Automatic, Membrane and Touch Screen concrete compression machines.
While manufacturing machines compliant to standards, BESMAK carries out a number of research and development studies and makes innovations that revolutionize compression machines. Sematron Touch Series Control and Software System, which is fully developed in-house, is capable of high speed data display with 1 kHz data acquisition speed, and reading of different sensors like LVDT, strain gauge, load cell and pressure transducers. Thanks to multiple channel, the controller unit allows to attach different frames with single hydraulic power pack.
With industrial 10 inch LCD display and user-friendly BESMAK Universal Testing Software, users can view the real time graphs and analyze the data point by point, make and save their own test templates, create their own test methods, email results directly from LCD, use the machine in their own language and get online support from BESMAK team.
BCO-C/ST series compression machines comes with
• Rigid 4-column frame
• Hydraulic unit
• 2 x 50 and 1 x 70 mm distance pieces
• 2 channel electronic controller
• Linux based 10 inch industrial LCD display with built in test software
• PC software
• Software user manual
* Contact us for different dimensions and special design frames
* Frames can be sold separately
Ürün Kodu | Ürün Adı |
BCO-C300/ST | Fully Automatic Hydraulic Compression Machine, 300kN Capacity |
BCO-C500/ST | Fully Automatic Hydraulic Compression Machine, 500kN Capacity |
BCO-C1000/ST | Fully Automatic Hydraulic Compression Machine, 1000kN Capacity |
BCO-C2000/ST | Fully Automatic Hydraulic Compression Machine, 2000kN Capacity |
BCO-C2500/ST | Fully Automatic Hydraulic Compression Machine, 2500kN Capacity |
BCO-C3000/ST | Fully Automatic Hydraulic Compression Machine, 3000kN Capacity |
BCO-C4000/ST | Fully Automatic Hydraulic Compression Machine, 4000kN Capacity |
BCO-C5000/ST | Fully Automatic Hydraulic Compression Machine, 5000kN Capacity |
Frames:
Product Code | Product Name |
BCO-C400/FR | 4 Column Frame, 400 kN Capacity |
BCO-C600/FR | 4 Column Frame, 600 kN Capacity |
BCO-C1000/FR | 4 Column Frame, 1000 kN Capacity |
BCO-C1500/FR | 4 Column Frame, 1500 kN Capacity |
BCO-C2000/FR | 4 Column Frame, 2000 kN Capacity |
BCO-C3000/FR | 4 Column Frame, 3000 kN Capacity |
BCO-C4000/FR | 4 Column Frame, 4000 kN Capacity |
BCO-C5000/FR | 4 Column Frame, 5000 kN Capacity |
BCO-C10000/FR | 4 Column Frame, 10000 kN Capacity |
