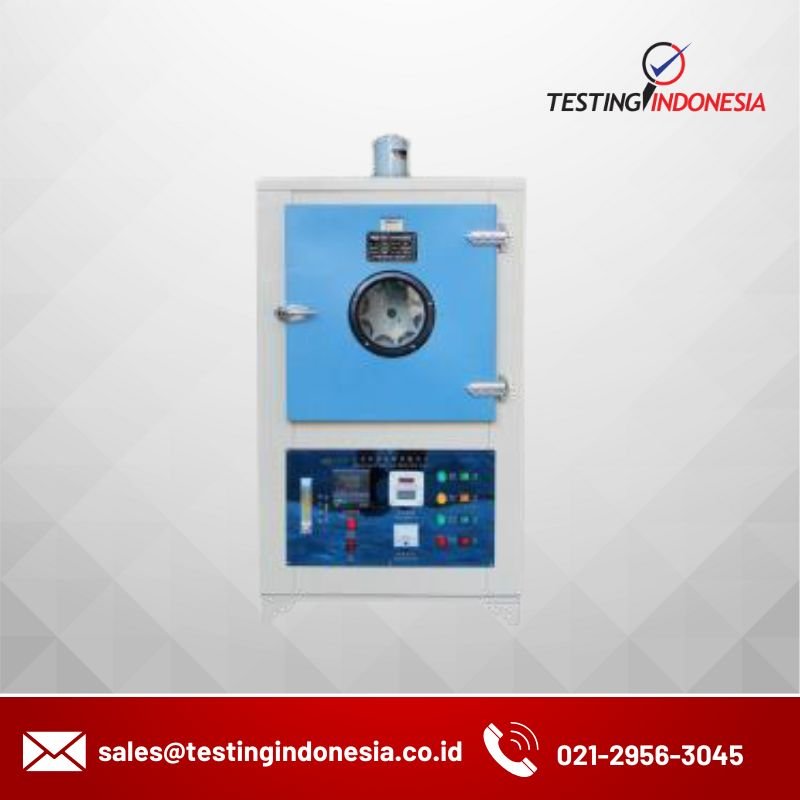

The instrument is suitable for measuring the performance change of semisolid asphalt under the action of heating and air, and can check the aging performance of asphalt in a short time . The product conforms to the JTJ052-2000 standard of the Ministry of Communications of the People’s Republic of China, and is designed and manufactured with reference to the Japanese JIS standard for rotary film ovens.
| Heating wire power kW | 2 |
| Number of heating wires | 2 |
| Working temperature °C | 163±0.5 |
| Maximum temperature ℃ | 200 |
| Fan | Squirrel cage |
| Fan speed r/min | 2800±5% |
| Air volume L/min | 4 |
| Nozzle diameter mm | 1 |
| Sample bottle size (diameter × diameter × height) mm | Φ32×Φ63×140 |
| Rotary brick number r/min | 15±0.2 |
| The number of sample bottles that can be loaded | 8 |
| Total power kW | 2.5 |
| Power supply voltage | AC220V±10% |
| Studio size mm | 450×450×420 |
| Dimensions mm | 680×800×1270 |
| Weight kg | 120 |
