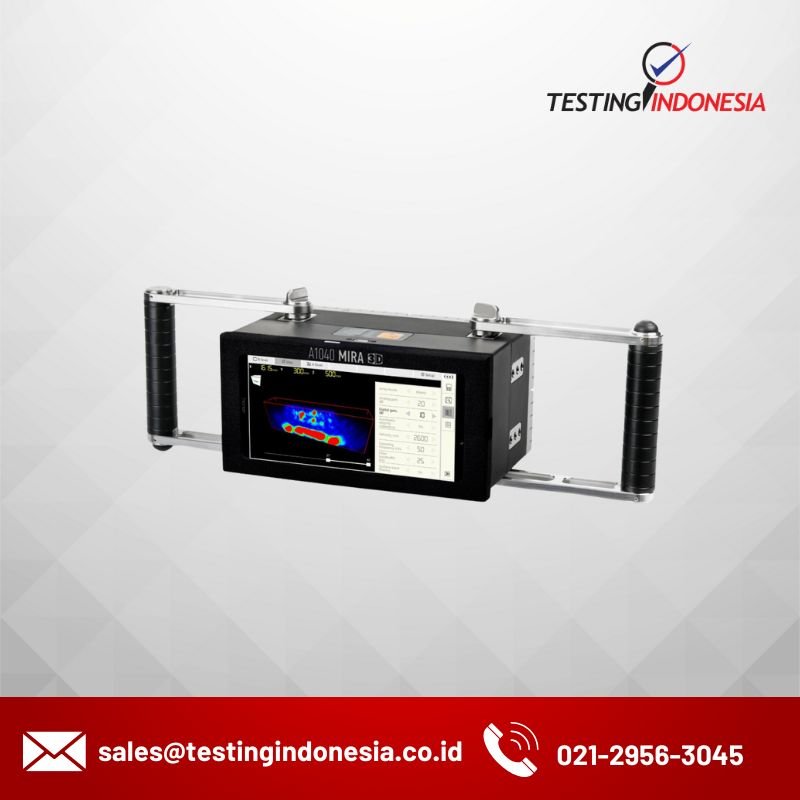

A1040 MIRA 3D PRO

Description

A1040 MIRA 3D PRO is a low frequency ultrasonic tomography system suitable for manual and automated assessment concrete structures with extended aperture for extremely deep penetration applications. Due to its novel 64 A-DPC® sensor technology, it provides unbeatable inspection range, flaw detectability and imaging resolution by implementing three-dimensional FMC / TFM in each instrument position.

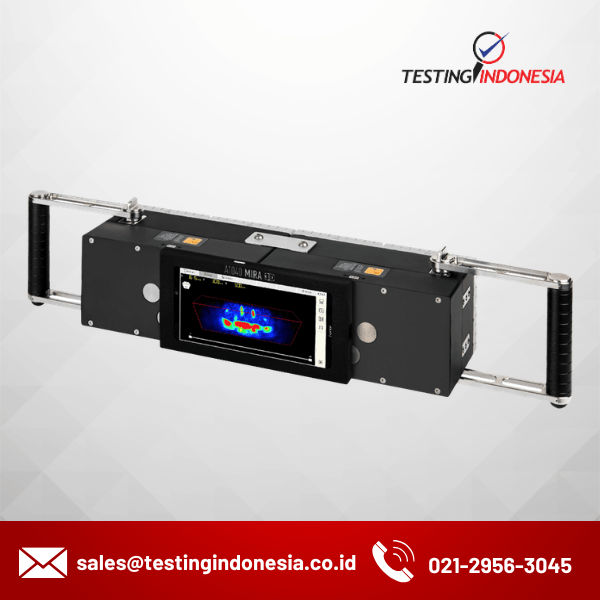

The instrument consists of two lightweight basic units, each containing 4 x 8 Active Dry-Point-Contact transducers with integrated pulser-received circuits and parallel DAQ electronics wirelessly connected to the powerful smartphone that implements image reconstruction and visualization algorithms by means of parallel graphic processor units on-board. This hardware solution allows achieving the high-end performance for real-time 3D-TFM imaging.

By using special transmitting techniques such as enhanced burst energy an outstanding penetration depth has been achieved in combination with 8 x 8 individually driven A-DPC probes. For additional extending the inspection range arbitrary aperture extension can be utilized by two and more array units in one configuration.

INTROVIEW® Pro – Desktop or Laptop software for remote unit control and 3D visualization & analysis of Big Data is an essential part of the instrument delivered in the standard delivery set.

The open data format for customized developments by user – for offline as well as online applications – complete the functional package of this extraordinary instrument.

The ultrasonic tomograph A1040 MIRA 3D PRO is the most advanced system configuration for ultrasonic testing of highly scattering materials, such us concrete and reinforced concrete, stones, rock, composites, ceramics, wood, epoxy, refractory materials. Among others, following main applications can be mentioned as application fields of the instrument:

• Localization of reinforcement rebars and other elements (tendon ducts, anchors, hollow pipes, cables, hollow pipes), also beyond of rebar layers
• Detection of material voids, estimation of their position and size in 3D: cavities, inclusions, honeycombs, cracks
• Thickness measurement by one-side access
• Detection of grouting defects in tendon ducts and grouting couplers
• Assessment of fireproof stones
