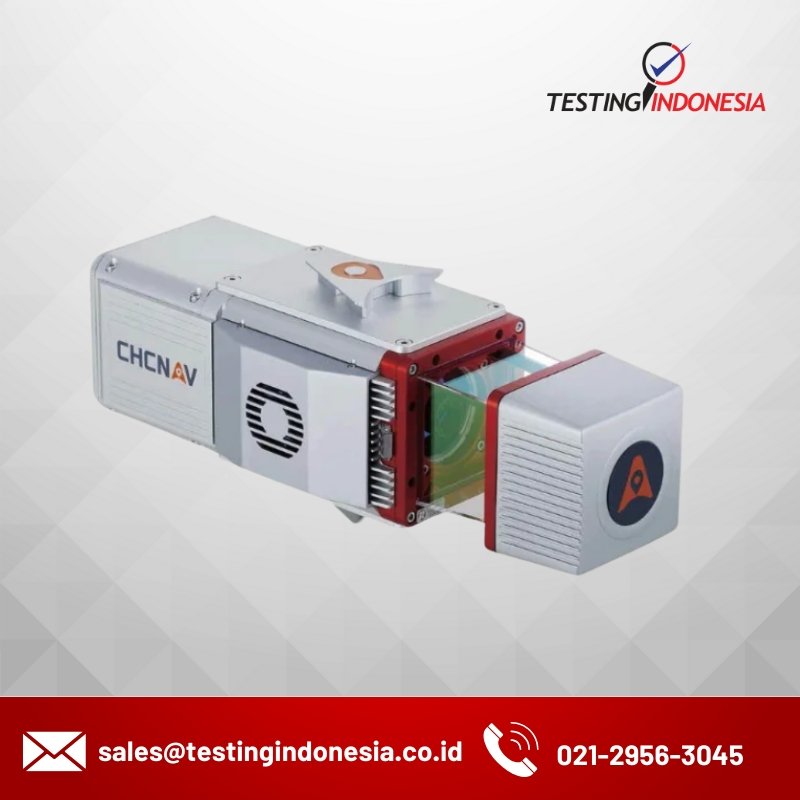

AlphaUni 300


AlphaUni 300/900/1300, belonging to our Alpha Mobile Mapping series, are high-end multi-platform LiDAR systems that have been designed and improved by CHCNAV based on many years of research and data capture experience. AlphaUni series is a fully integrated system with a high-precision laser scanner featuring Riegl’s unique Waveform-LiDAR technology and a high-accuracy inertial navigation system, ready for demanding surveying missions in the air and on the ground, requiring the highest data quality. The AlphaUni series fulfils our goal to provide the most innovative solutions to professionals in the geospatial sector and help them to save time, reduce costs and complete their projects more easily.



2.1 kg total weight
LiDAR weight is a constraint for any drone. The drone needs to lift the entire payload, if not, no data acquisition is possible! The lighter the unit, the higher the productivity, because your UAV can fly longer.


Integrated premium scanners
Users can select either the miniVUX-1 or miniVUX-2 UAV for higher data density. Equipped with industry-leading GNSS and IMU sensors, the AlphaUni300 provides the best combination of point cloud density, precision and survey-grade accuracy.


Support multiple platforms installation
Within 5 minutes, the AlphaUni 300 can be mounted on various platforms, including different models of UAVs, fixed-wing and multi-rotor VTOLs UAS, vehicles, backpacks, USVs and boats, enabling data collection in the most challenging environments.


Long range UHF modem onboard
Equipped with a unique 8 km UHF data transmission, the parameters of AlphaUni 300 can be set remotely. The operating status of the system can be observed wirelessly in real time, reducing mission preparation time and improving operational efficiency.


Powerful and accurate 3D point cloud generation
CoPre is an advanced, user-friendly 3D laser scanning pre-processing software that can process captured raw data, including POS trajectories, LiDAR data, and RGB images. CoProcess is a reality capture post-processing software providing DEM/DTM generation, semi-automated feature extraction, automatic data classification, and dedicated power line and road inspection modules.  With its intuitive interface and efficient workflow, the software significantly improves the productivity of 3D mapping projects.


General system performance

Absolute Hz & V accuracy< 0.050 m RMS
Accuracy conditionsWithout control points, @100 m flight altitude AGL
MountingVehicle independent solution, quickly install & release design, easily switch between airborne, vehicle and backpad mode
Weight of instrument (1)2.1 kg4.5 kg
Dimensions of instrument31.86 × 11.0 × 11.0 cm 12.2" × 4.33" × 4.33"31.6 × 20.9 ×15.6 cm 12.2" × 7.87" × 5.9"
Communications1 x synchronization port for 2nd GNSS antenna1 x synchronization port for 2nd GNSS antenna 1 x RS232 synchronization ports (NMEA support)
Remote controlUp to 8 km, wireless control of instrument parameters and data recording in real time
Point density on UAV setup40 pts/sqm @ 100 m AGL450 pts/sqm @ 100 m AGL620 pts/sqm @ 100 m AGL
4 m/s (14.4 km/h) speed80 pts/sqm (optional upgrade)

Laser scanner

Laser class1 (in accordance with IEC 60825-1:2014)
Max. range, reflectivity >80% (2)330 m1415 m1845 m
Max. range, reflectivity >20% (2)170 m755 m1000 m
Minimum range3 m
Accuracy (3)15 mm10 mm15 mm
Precision (4)10 mm5 mm10 mm
Field of view360°
Maximum scan rate100 000 pts/sec upgrade to 200 000 pts/sec1 200 000 pts/sec1 500 000 pts/sec
Scan speed(selectable)Up to 100 scans/secUp to 200 scans/sec

Positioning and orientation system

GNSS systemMultiple GPS, GLONASS, Galileo, BeiDou, SBAS and QZSS constellation, L-Band, single and dual antenna support
IMU update rateStandard 200 Hz (user selectable up to 600 Hz)
Position accuracy NO GNSS outage0.010 m RMS horizontal, 0.010 m RMS vertical, 0.005 degrees RMS pitch/roll, 0.010 degrees RMS heading
Wheel sensor (DMI)Yes, optional

Imaging system

Camera typeModular upgrade options: DSLR, thermal, multispectral, LB5+ 360° spherical camera for vehicle mount
Airborne default camera setupCHC AS-C420 (calibrated Sony A7 RII)
Resolution7952 x 5304, 42.4 MP, 5 fps


Operating temperature-10 °C to +40 °C-20 °C to +40 °C
Storage temperature-20 °C to +50 °C
IP ratingIP64
Humidity (operating)80%, non-condensing


Input voltage24 V
Power consumption32 W65 W
Power sourceDepending on UAV battery. External battery in for car setup, also support direct vehicle power source
