Description

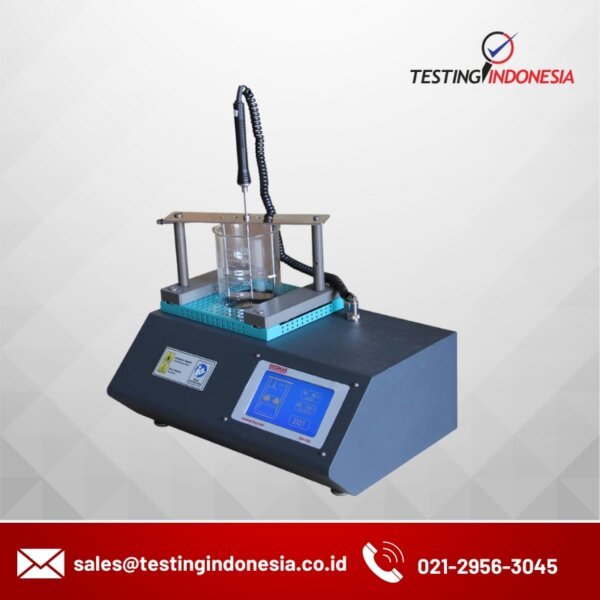

Automatic softening point machine is used to determine the softening point of the bitumen which is designed for EN 1427, ASTM D36, AASHTO T53.
The machine can save temperature for each bitumen sample separately even the diff erence between two samples.
The bath temperature is measured by an electronic system maintaining the gradient (5°C./min) as specifi ed by the Standards. A magnetic stirrer with electronic speed adjustment from 0 to 160 rpm also ensures an uniform temperature in the vessel during the test execution. Two test parameters can be selected by the microprocessor menu: – test on boiled distilled water for softening point from 30 to 80°C. – test on glycerol for softening point from 80 up to 150°C. Integrated control unit with touchscreen and graphical menu , command input and result output. Test data can save and print with suitable printer. The unit consists of, Electronic Control Unit, Temperature sensor (Probe), Optical sensors, Electric Heater, Magnetic Stirrer, Beaker, Ring holder, 10 balls and 10 rings.
Product Code | Product Name |
BAS-515/2 | Automatic Softening Point Machine |
BAS-515/2.1 | Set Of Rings For Automatic Softening Point Machine |
BAS-515/2.2 | Stell Ball For Automatic Softening Point Machine |
BAS-515/2.3 | Double Apparatus For Automatic Softening Point Machine |
BAS-515/3 | Automatic Softening Point Machine with Heating and Cooling |
