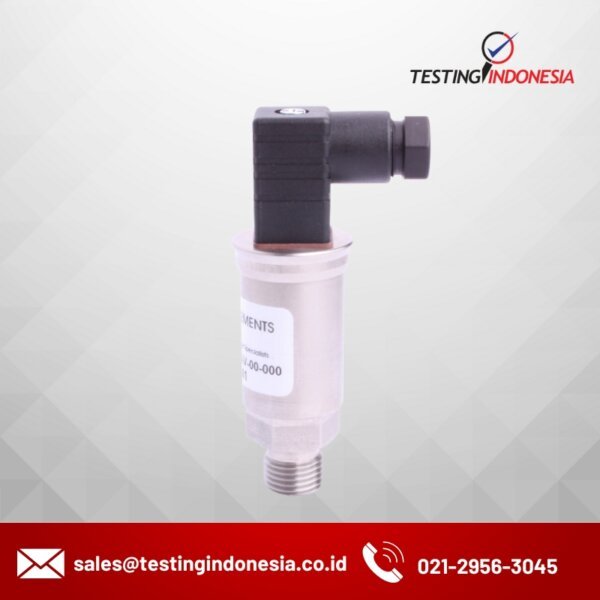

Barometric Pressure Sensor

Category: Tags: , , , , ,

Description

Barometric pressure sensors are pressure sensors that measure changes in atmospheric pressure. They detect variations in atmospheric pressure by the deformation of the diaphragm (a flexible, thin circular membrane) and attached strain gauges which convert the change into an electrical signal. Barometric pressure sensors (also known as atmospheric pressure sensors) measure absolute air pressure relative to a reference of a zero-pressure vacuum.

Applied Measurements barometric pressure sensors Pa600B measure absolute pressure and are designed for the measurement of atmospheric pressure fluctuations. Applied Measurements barometric pressure sensors are ideal for weather applications, including weather forecasting, where pressure changes in the atmosphere need to be monitored.

Barometric Pressure Sensor Applications Include:

  • Weather Applications
  • Weather Forecasting
  • Atmospheric Changes
  • Altitude Compensation
  • Altimeters
  • Remote Weather Stations

Constructed from stainless steel, and available with a variety of process connections, these barometric pressure sensors are designed to withstand humidity, precipitation, and water ingress.

Product Dimensions

Barometric Pressure Sensor Pa600B Gland outline

Barometric Pressure Sensor Dimensions Diagram

Barometric Pressure Sensor Pa600B M12 Outline

Barometric Pressure Sensor M12 Connector Dimensions Diagram
Barometric Pressure Sensor Mini DIN Dimensions Diagram

Wiring Details

Small Plug & SocketIP65 CableM12 x 1, 4-pin Connector6-pin Bayonet Connector
2-wire+ve Supply
-ve Supply
Ground		Pin 1
Pin 2
Earth Pin		Red
Blue
Yellow		Pin 1
Pin 2
Pin 4		Pin A
Pin B
Pin D
3-wire+ve Supply
-ve Supply
+ve Output
Ground		Pin 1
Pin 2
Pin 3
Earth Pin		Red
Blue
Green
Yellow		Pin 1
Pin 2
Pin 3
Pin 4		Pin A
Pin B
Pin C
Pin D
4-wire+ve Supply
-ve Supply
+ve Output
-ve Output		Pin 1
Pin 2
Pin 3
Earth Pin		Red
Blue
Green
Yellow		Pin 1
Pin 2
Pin 3
Pin 4		Pin A
Pin B
Pin C
Pin D

Features

  • Range: 750-1250mbar Absolute
  • Outputs: 4-20mA, 0-5Vdc, 0-10Vdc, 0.5-4.5Vdc, mV/V
  • Environmental Protection: IP65 (IP67 optional)
  • Accuracy: <±0.25%/FS (<±0.1% optional)
  • Silicon-Based Sensing Element
  • Low Power Consumption

Spesification

Nominal Pressure Rangembar absolute750-1250
Permissible Overpressurembar1500
Burst Pressurebar3
Output Signal & Supply VoltageWiring SystemOutputSupply VoltageInput CurrentInput ResistanceOutput Resistance
Pa642B2 – wire4 – 20 mA9 – 32 Vdcn/a<500<500
Pa605B3 - wire0 – 5V dc9 – 32 Vdc<10 mA<500<500
Pa6010B3 - wire0 – 10V dc13 – 32 Vdc<10 mA<500<500
Pa645B3 - wire0.5 to 4.5V dc5 Vdc (2.7 - 5.5Vdc)<3 mA<500<500
Pa602B4 - wirePassive mV/V (un-rationalised)2 – 10 Vdc<5 mA @ 10V<2kΩ-6kΩ<3.5kΩ-6kΩ
Performance
Accuracy (non-linearity, hysteresis, repeatability)% Full Scale Output<±0.25 (BFSL) <±0.1 (BFSL) optional
Setting Errors (Zero Balance + Full Scale Output)2-wire, 3-wire 4-wire un-rationalisedZero <±1% / FS, Span <±0.5% / FS Zero<0.1mV/V, Span ±30%
Permissible Load2-wire 3-wire 4-wireRmax = [(VS - VS min) / 0.02] Ω Rmin = 10 kΩ Rmin = 11kΩ
Influence EffectsSupply Effects Load EffectmV/V & 0.5 to 4.5V – Ratiometric, Other Voltage Outputs - <0.005 % FS / 1V 4 - 20mA = <0.05% FSO / kΩ
Response Time (10% - 90%)ms≤1 (mV/V versions) ≤10 (amplified versions)
Warm-Up Time (amplified versions only)ms2 typ.
Permissible Temperatures & Thermal Effects
Media Temperature˚C-40 to +125
Ambient Temperature˚C-20 to +85
Storage Temperature˚C-20 to +85
Compensated Temperature Range˚C+20 to +80
Thermal Zero Shift (TZS)% / FS / ˚C<±0.04 (standard) <±0.02 (option) <±0.01 (option)
Thermal Span Shift (TSS)% output / ˚C<-0.015
Electrical Protection
Reverse Polarity ProtectionNo damage but also no function
Electromagnetic CompatibilityCE Compliant
Insulation ResistanceMegohms Ω at 50V dc>500
Mechanical Stability
Shock100 g / 11 ms
Vibration10 g RMS (20 ... 2000 Hz)
Materials
Housing & process connection303 Stainless Steel 316L Stainless Steel (optional)
‘O’ ring sealsViton NBR/Nitrile (optional) EPDM (optional) Chemraz (optional)
Diaphragm316L Stainless Steel
Media wetted partsHousing and process connection, ‘O’ ring seal, diaphragm
Misc
Weightgrams100 nominal
Installation positionAny
Operational lifepressure cycles> 100 x 106
Environmental ProtectionMini Plug + Socket M12 x 1 Connector Cable GlandIP65 IP67 IP65
