Accelerator | Brake Pedal Load Cell

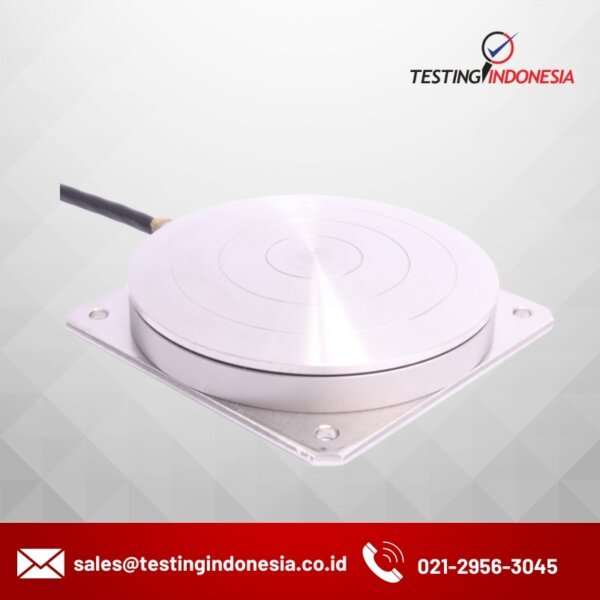

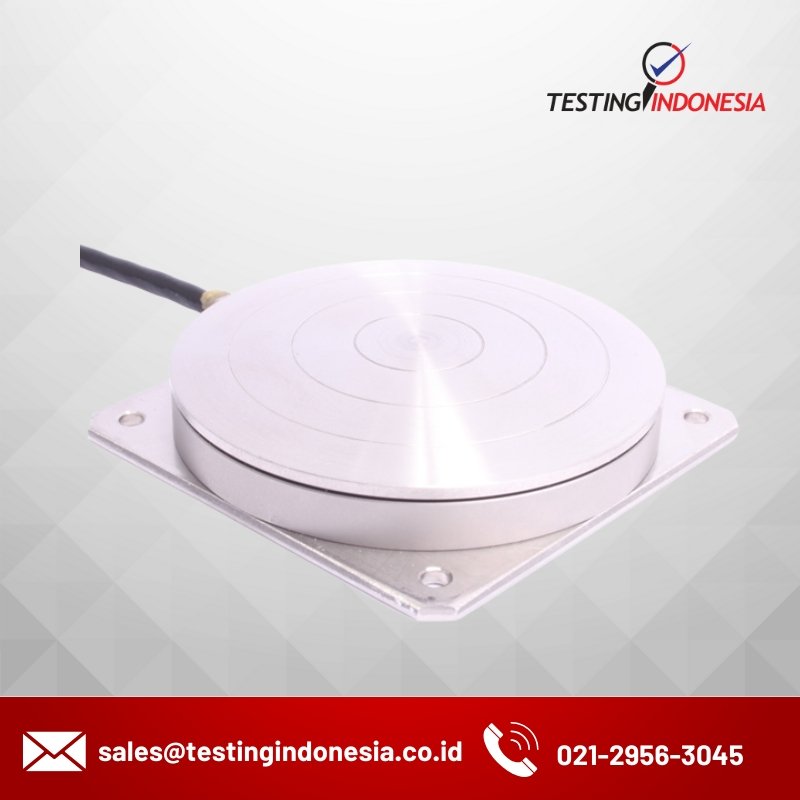

The CCGBP low profile brake pedal load cell is designed to measure brake pedal or accelerator pedal force with ranges from 0-50kg up to 0-250kg. The CCGBP’s low profile of 12.5mm lends it to applications where space is at a premium.

Their integral mounting and loading plate along with their low profile, enables fast and simple installation directly onto the pedal. The brake pedal load cell can also be used on other pedals within the vehicle.

The brake pedal load cell is constructed from stainless steel and features a radial strain gauge arrangement which reduces the effect of any off-centre loading and helps to keep measurement errors to a minimum. Its rugged stainless steel construction and IP65 ingress protection rating ensure a long and maintenance-free life.

Additionally, we can customise the mounting and loading plates so if you need a special version to suit your application please call our sales team who will be happy to discuss your required specification in detail.

Product Dimensions

CCGBP Outline

Wiring Details

Red+ve excitation
Blue-ve excitation
Green+ve signal
Yellow-ve signal
ScreenTo ground – not connected to load cell body


  • Capacities: 0-50kg up to 0-250kg
  • Very Low Profile (12.5mm)
  • Integral Loading & Mounting Plate
  • Robust Design
  • Stainless Steel Construction
  • Output: 2mV/V nominal
  • Environmental Protection: IP65
  • Accuracy: <±2.5%/RC typical


Rated Capacity (RC)kgf0-50 (500N), 0-100 (1000N), 0-150 (1500N), 0-200 (2000N), 0-250 (2500N)
Operating ModesCompression Only
Rated OutputmV/V2 nominal
Zero Balance/Offset±%/Rated Output<5
Non-Linearity±%/Rated Output<2.5
Hysteresis±%/Rated Output<2.5
Repeatability±%/Rated Output<0.5
Temperature Effect on Zero±%/Rated Output/˚C<0.010
Temperature Effect on Output±%/Applied Load/˚C<0.010
Input ResistanceOhms (nominal)350
Output ResistanceOhms (nominal)375
Insulation ResistanceMegohms>2000
Excitation VoltageVolts AC or DC10 recommended (2-15 acceptable)
Operating Temperature Range˚C-20 to +80
Compensated Temperature Range˚C0 to +60
Storage Temperature Range˚C-20 to +80
Safe Overload% of Rated Capacity150
Ultimate Overload% of Rated Capacity300
Deflection @ Rated Capacitymm<0.4
IP Rating (Environmental Protection)IP65
Weight (excluding cable)grams180
Fatigue Life108 cycles typical (109 cycles on fatigue-rated version)
Cable Length (as standard)metres3
Cable Type4 core screened PTFE cable
Construction MaterialStainless Steel
Resolution1 part in 250,000 (with appropriate instrumentation)
