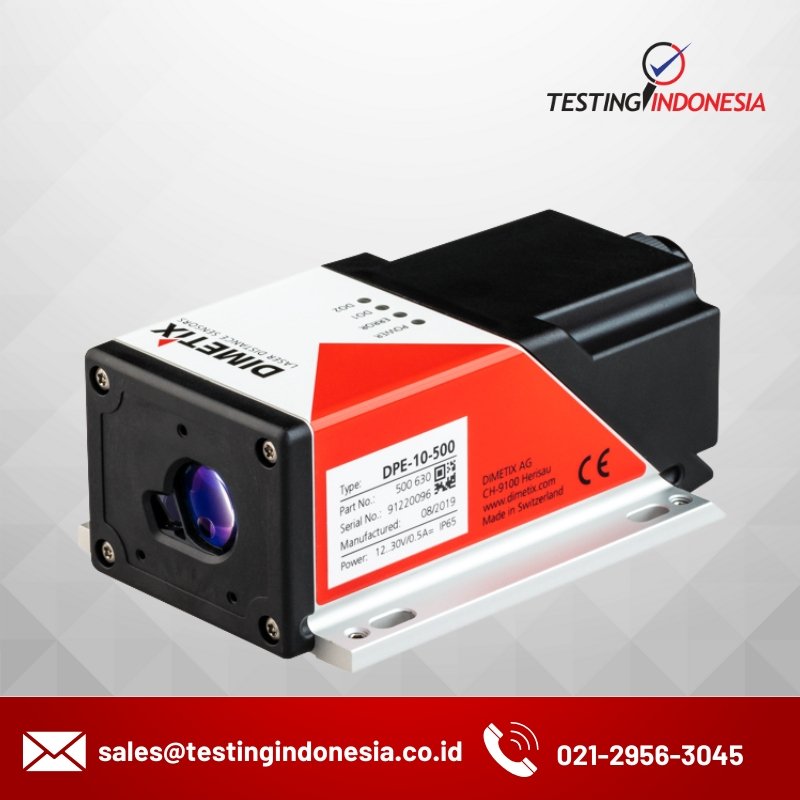

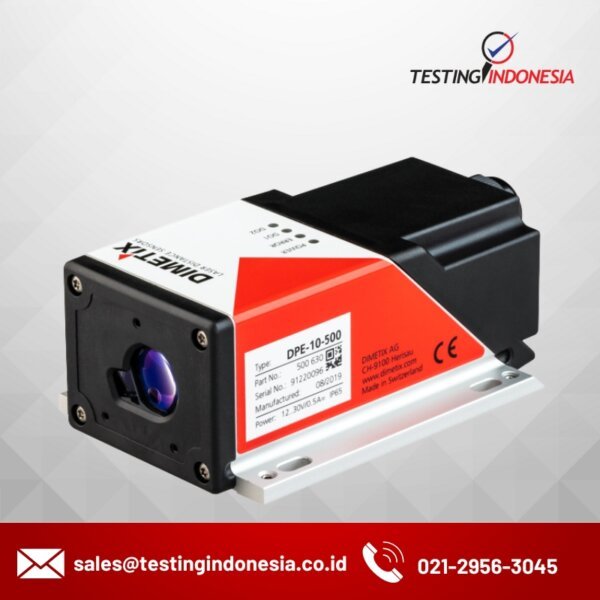

D-Series Dimetix Laser Distance Sensors


The D-Series Dimetix Laser Distance Sensors are at the forefront of our continuous development and innovation. They measure long distances with the highest precision, reliability and speed, even in the most difficult situations. The D-series can measure on dark surfaces – even in exterior applications with solar irradiation. With this series, which is now avilable in a new modern design. Dimetix has expanded its product range with a device, that has an output rate of 1 kHz.


  • Measuring range 0 to 500 m
  • Max. measuring rate 250 Hz
  • 1 mm accuracy
  • Serial interfaces
  • High precision analog output (0.1%)
  • Two programmable digital outputs
  • Digital input
  • Digital output for error signalization
  • Profibus interface (optional)
  • PROFINET, EtherNet/IP and EtherCAT interfaces (optional)
  • Degree of protection IP65
  • Extended temperature range -40...+60°C


Product typeDPE-10-500DPE-30-500DEN-10-500DEH-30-500DAN-10-150DAN-30-150DAE-10-050DBN-50-050
Part No.500630500636500637500638500632500634500633500635
Measuring range on reflective foil~0.5...500 m~40...150 m~40...50 m-
Typical accuracy @ 2σ± 1 mm± 3 mm± 1 mm± 3 mm± 1 mm± 3 mm± 1 mm± 5 mm
Repeatability typ.± 0.3 mm± 0.7 mm± 0.3 mm± 0.7 mm± 0.3 mm± 0.7 mm± 0.3 mm± 1.8 mm
Max measuring rate250 Hz50 Hz10 Hz
Operating temperature-40...+60 °C-10...+50 °C-10...+60 °C-10...+50 °C-40...+60 °C-10...+50 °C
Degree of ProtectionIP65
Power supply12...30 VDC
Laser red, visible
Diameter laser dot at 10m7x3 mm
Diameter laser dot at 50m28x13 mm
Diameter laser dot at 100m55x30 mm
Dimensions (l x w x h)140x78x48 mm
Weight350 g
Analog output, programmable, 0/4...20 mA
Max error analog output± 0.1 %± 0.1 %± 0.2 %
2 digital outputs, programmable
1 digital output, error display
1 digital input, programmable (instead of DO1)
RS-422 with programmable ID
PROFINET (option)
EtherNetIP (option)
EtherCAT (option)
PROFIBUS (extern)
Internal screw terminal
Auto start
Direct connectivity of an external remote display
External trigger for measurement
