Description
Award-winning and versatile 8-channel USB data acquisition system with unmatched price/performance ratio and hand-size footprint. 8 universal analog inputs, 8 digital/counter/encoder inputs, and two high-speed CAN bus inputs.

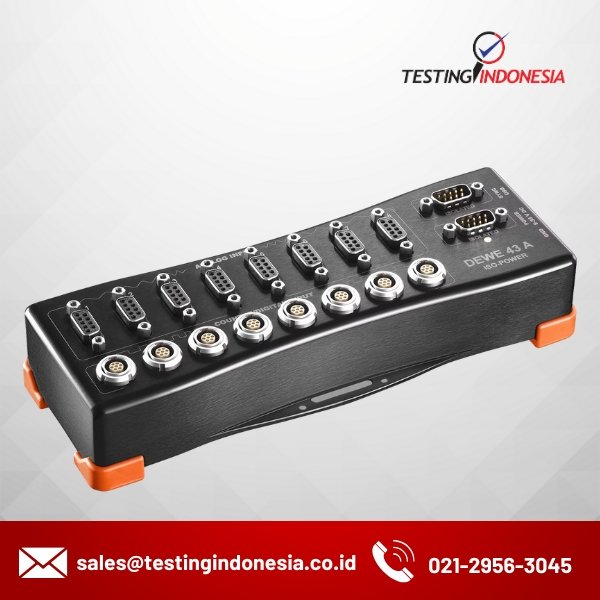

DEWE-43A
8-Channel USB Data Acquisition (DAQ) System
DEWE-43A highlights
Universal Analog Inputs
DEWE-43 comes with universal analog inputs that can accept voltage and full-bridge sensors natively. Additionally, IEPE, charge, full and half bridge, RTD, thermocouple, current, and LVDT signals are supported by using our DSI adapters.24-Bit Sigma Delta ADC
DEWE-43A is equipped with 24-bit sigma-delta analog-to-digital converters with an anti-aliasing filter. The analog sampling rate is software selectable up to 200 kS/s per channel.Sensor Power Supply
Each analog channel on the DEWE-43A provides power for sensor excitation.SuperCounter® Inputs
Each counter channel input is capable of three digital inputs, one event counter, encoder, period, pulse-width, duty-cycle, and precise frequency and angle measurement using patented SuperCounter® technology.Isolated CAN Inputs
DEWE-43A includes two high-speed CAN 2.0b channels with 1 Mbit/sec data throughput. Both ports offer additional support for CCP, OBDII, J1939, and CAN output.Fully Synchronized
All input channels - analog, digital, and CAN - are fully synchronized with each other with microsecond accuracy. Multiple devices can be further daisy-chained and synchronized with the same pin-point synchronization accuracy.Isolated Power Supply
DEWE-43A power supply is internally isolated which is eliminating the possibility of ground loops.Software included
Every Dewesoft data acquisition system is bundled with award-winning DewesoftX data acquisition software. The software is easy to use but very rich and deep in functionality. All software updates are free forever with no hidden licensing or yearly maintenance fees.Dewesoft quality and 7-year warranty
Enjoy our industry-leading 7-year warranty. Our data acquisition systems are made in Europe, utilizing only the highest build quality standards. We offer free and customer-focused technical support. Your investment into the Dewesoft solutions is protected for years ahead.Spesification
| Analog inputs | ||||
| Number of channels | 8 | |||
| Inputs | Voltage, full bridge | |||
| ADC type | 24-bit sigma-delta with anti-aliasing filter | |||
| Sampling rate | Simultaneous 200 kS/sec | |||
| Input type | Differential | |||
| Voltage Mode | ||||
| Ranges | ±10 V | ±1 V | ±100 mV | ±10 V |
| DC accuracy | 0.05 % of value + 1 mV | 0.05 % of value + 0.2 mV | 0.05 % of value + 0.1 mV | 0.05 % of value + 0.1 mV |
| CMRR@ 50Hz/400Hz/1kHz | 85 dB / 92 dB / 89 dB | 97 dB / 97 dB / 88 dB | 100 dB / 97 dB / 89 dB | 101 dB / 97 dB / 89 dB |
| Noise floor | 107 dB @ ±10 V range | |||
| Signal to noise: 0.1 kS/s to 51.2 kS/s 51.2 kS/s to 102.4 kS/s 102.4 kS/s to 200 kS/s | 105 dB 100 dB 75 dB | |||
| Gain Drift | Typical 10 ppm/K, max. 40 ppm/K | |||
| Offset Drift | Typical 2 μV/K + 5 ppm of range/K, max 5 μV/K + 10 ppm of range/K | |||
| Channel-to-Channel Phase Mismatch | <0.1° @ 5 kHz | |||
| Phase-to-Phase Mismatch | 0.6° @ 1 kHz | |||
| Input impedance | 20 MΩ | 47 pF (differential) 10 MΩ || 33 pF (common mode) | |||
| Maximum common mode voltage | ±13 V | |||
| Overvoltage protection | ±70 V input protection | |||
| Excitation Voltage | ||||
| Excitation voltage | ±5 V ±0.1 % bridge sensor supply, 70 mA limit | |||
| Excitation Drift | ±50 ppm/K ±100 μV/K | |||
| Sensor supply | 12 V, 350 mA (Shared between: 8xAI, 8xCounters, 2xCAN) | |||
| Counter/Digital inputs | ||||
| Number of channels | 8 counters/24 digital input, fully synchronized with analog | |||
| Modes | Counting, waveform timing, encoder, tacho, geartooth sensor | |||
| Counter timebase | 102.4 MHz | |||
| Time base accuracy | Typical: 5 ppm, Max: 20 ppm | |||
| Max. Bandwidth | 10 MHz | |||
| Input Filter | 500 ns, 1 μs, 2 μs, 4 μs, 5 μs and 7.5 μs | |||
| Counter resolution | 32-bit | |||
| Input Compatibility, Level | TTL/CMOS (Low: <0.8 V, High >2 V) | |||
| Input termination, impedance | 100 kΩ pull-up to +3.3 V | |||
| Input Protection | ±30 V continuous | |||
| Alarm output | Not available | |||
| Sensor supply | +5 V, +12 V (See bellow: Power, Sensor power supply) | |||
| CAN bus | ||||
| Number of ports | 2 | |||
| Interface type | CAN 2.0B, up to 1 MBit/sec | |||
| Special applications | CCP, OBDII, J1939, CAN output | |||
| Galvanic isolation | Isolated | |||
| Bus pin fault protection | ±36 V | |||
| ESD protection | 8 kv | |||
| Interfaces and options | ||||
| USB | USB-B mini, USB 2.0 interface | |||
| Synchronisation | 2x SIRIUS® SYNC | |||
| Max. Sync-cable length | 100 m (Master/Slave), 200 m (IRIG) | |||
| Power | ||||
| Power supply | 9 - 36 V DC | |||
| Galvanic isolation | ISO-POWER Isolated | |||
| Sensor power supply | Up to 10W total: 12 V, total limit 350 mA (Shared between: 8xAI, 8xCounters, 2xCAN) 5 V, total limit 700 mA (Shared between: 8xCounters, 2xCAN) +/-5 V Exc., Ch. limit 70 mA | |||
| Power consumption | Typ. 6 W, Max. 18 W | |||
| Environmental | ||||
| Operating Temperature | Max. 60 °C down to -20 °C | |||
| Storage Temperature | -40 °C to 85 °C | |||
| Humidity | 5 to 95 % RH non-condensing at 50 °C | |||
| IP rating | IP50 | |||
| Shock & Vibration | Vibration sweep sinus (EN 60068-2-6:2008) Vibration random (EN 60721-3-2: 1997 - Class 2M2) Shock (EN 60068-2-27:2009) MIL-STD-810D | |||
| Physical | ||||
| Dimensions | 225 x 80 x 45 mm | |||
| Weight | 0.72 kg | |||
| Rev: 1628236800 | ||||
