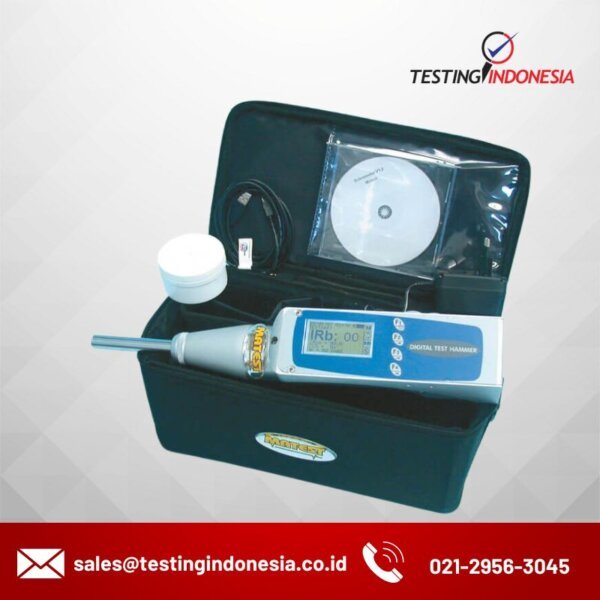

Digital Concrete Test Hammer

Description

This digital concrete test hammer, microprocessor operated, entirely designed and manufactured by Matest with advanced technology, performs basic concrete testing with continuous automatic recording of all parameters in accordance with EN 12504-2 Specifications, register and process data and then transfer them to a PC The unit consists of the standard mechanical model C380, but equipped with an electronic transducer that measures the rebound values and supplies automatically the results on a graphic display.

During test performing:

• Shows index value
• Shows average index value
• Allows to select measuring system in N/mm2 (MPa) or Psi
• Shows numbers of performed rebounds
• Shows date and time
• Identifies tested element
• Identifies automatically and shows rebound angle
• Shows battery life

Main features:

• Possibility to store, display on graphic LCD 64×124 and download data to PC over 20000 tests
• Automatic statistical processing and readings
• Automatic conversion of rebound index to equivalent compression strength in psi, N/mm2, kg/cm2
• High accuracy and resolution

Dimensions with case: 330x180x120 mm

Weight: 3 kg

Supplied complete with data transfer software, data transfer USB cable, battery charger, abrasive stone, carrying case.

NOTE: The digital hammer test is suitable to be connected to the Ultrasonic Tester high performance mod. C372M for combined ultrasonic and rebound tests with automatic data acquisition, processing and store of the results.
