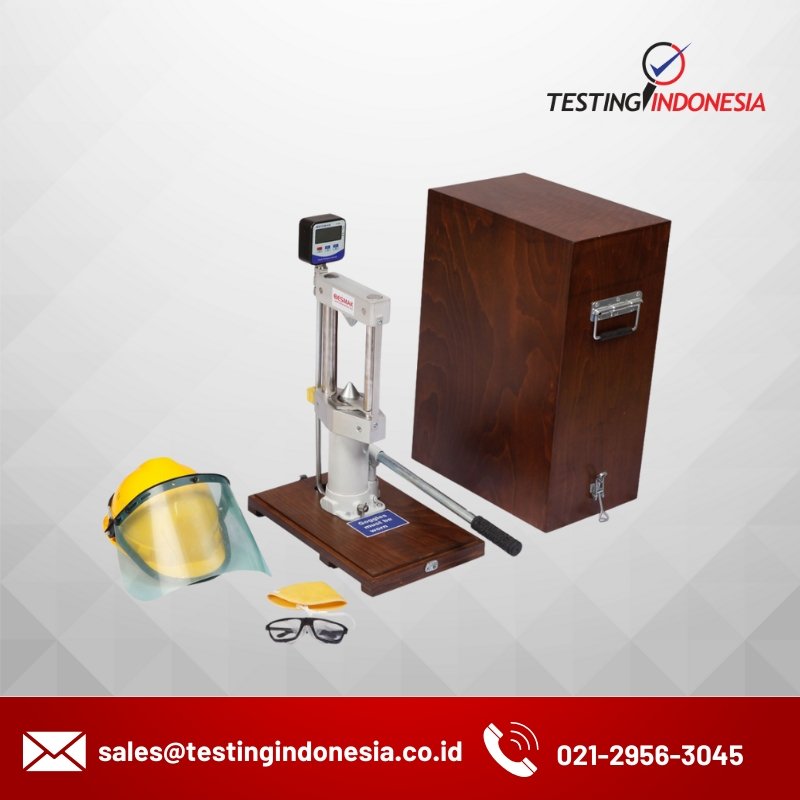

Digital Point Load Tester

Description

This apparatus is used to determine the strength values of a rock specimen, both in the field and in the laboratory.

It consists of a load frame for applying loads up to 55 kN, a mounted hydraulic ram and a pressure gauge have 0.001 kN precision for maximum load indication.

An upper conical platen is fixed on the frame and a lower one on the jack piston. A graduated scale is fixed on the frame and indicates the specimen diameter.

BESMAK Pressure Gauge Indicator gives results with different units; kN, N, t, kg, bar.

The system has a digital display that continuously monitors applied load and direct reading of specimen diameter.

It is portable and light design.

Tester accepts core specimens up to 101.6 mm (4) in diameter.
