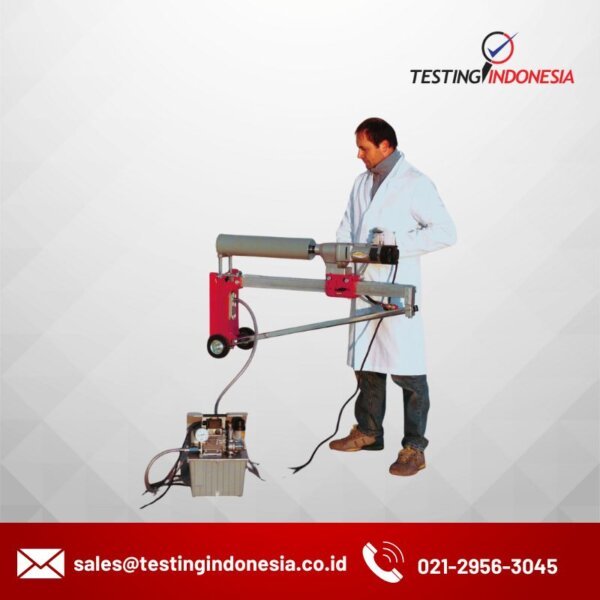

Drilling Machine C324N


The frame and the electric motor are the same of mod. C318N. Drilling Machine C324N is supplied complete with lubricated vacuum pump and pressure accumulation reservoir, which is very useful because it maintains for some times a valid vacuum level also with electric blackout, by avoiding the fall or disconnection of the unit from the wall.

The pump is connected to the utility by means of a ball tap to which a vacuum gage is fitted, that constantly indicates the pressure inside the tank. Coring angle: 0 to 360° under the condition that the surface is sufficiently flat, and not too porous, to allow the vacuum attachment.


Power supply: 230V 1ph 50/60Hz 2200W Dimensions: 600x320x1020 mm + pump Weight: 24 kg + pump 15 kg approx.
