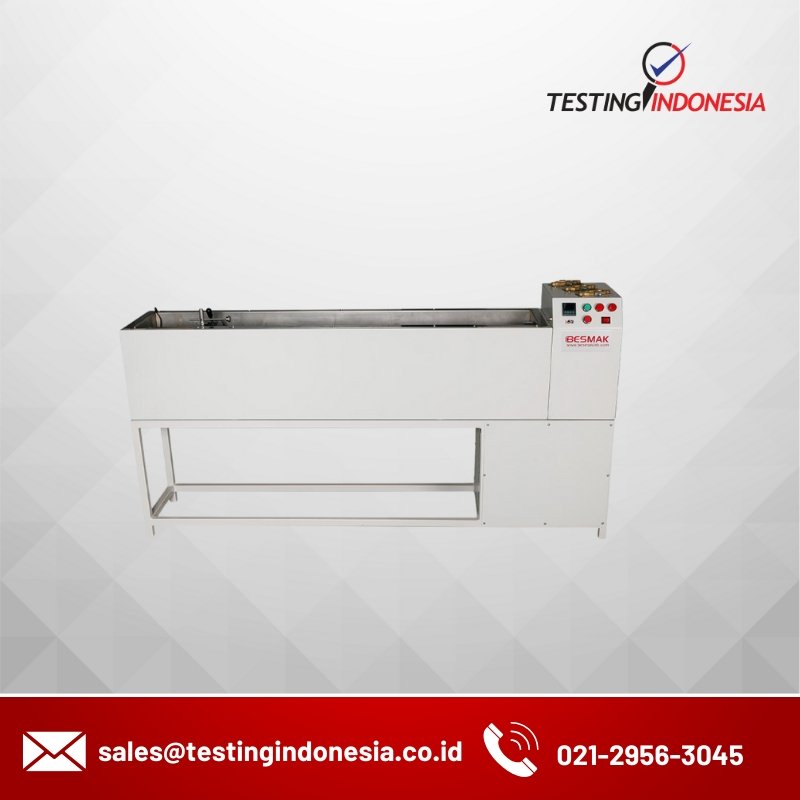

Ductility Machine

Standards:
✅EN 13398 ✅EN 13589 ✅ASTM D113 ✅AASHTO T51 ✅ASTM D113

Description

It determines ductility of formed asphalt or semi-solid bitumen by measuring the distance of elongation before reaching the breaking point of a sample which is pulled apart at a specific speed and temperature.

Automatically works with a 50mm/min speed and maximum stroke length is 1500mm. Water bath temperature is constant at 25 °C ± 0,5 °C. Maximum tensile force is 300N and the accuracy is ± 0,1 N. Consist of Digital control panel.

Inside of the machine is stainless steel and the outside is coated with electrostatic dye. It has a digital control unit and includes circulation pump. The machine comes with 3 moulds and 3 mould base plates.

Cooling unit, completely stainless steel and fiber isolated frame are optional.

Product CodeProduct Name
BAS-518Ductility Device
BAS-518/1Ductility Device Automatic
BAS-518/2Ductilometer
BAS-518/3Ductile Mould
BAS-518/3.1Ductile Mould with Base Plate
BAS-518/4Ductile Base Plate
BAS-518/5Ductility Device Without Cooling System
BAS-518/6Ductility Device with Refrigerating



Spesification

Weight : 113 kg

Dimensions : 1960 mm x 350 mm x 8600 mm

Power : 220-240V 50Hz
