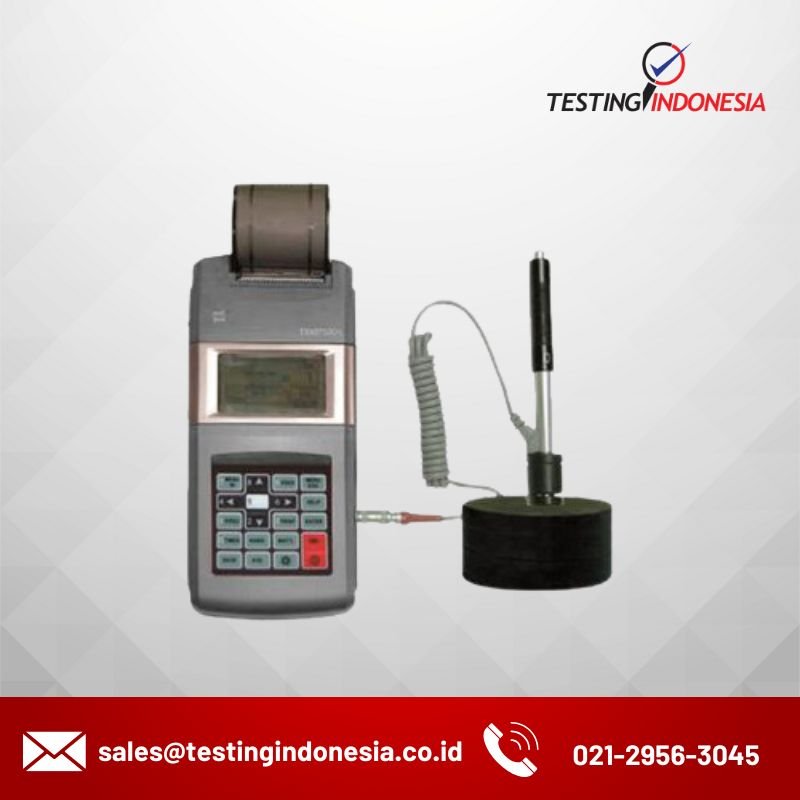

TIME®5301 dynamic rebound Hardness Tester is well suited for hardness testing on large hard metal parts. It can save 48~350 groups of data.
TIME®5301 dynamic rebound Hardness Tester is well suited for hardness testing on large hard metal parts. It can save 48~350 groups of data. The RS232 connector meets more needs like storage and data analysis. It is the most cost-effective solution for normal hardness measurement.
Measuring range | (170-960)HLD (17.9-69.5)HRC |
Hardness scale | HL, HB, HRA, HRB, HRC, HV, HS |
Measuring direction | 360° |
Tolerance | ±6HLD(when HLD=760±30) |
Repeatability | 6HLD(when HLD=760±30) |
Diameter for printer paper | 40mm |
Width for printer paper | 44.5±0.5mm |
Power | 12V/600mA |
Charging time | 2-3.5 hour |
Humidity | ≤90% |
Operating temperature | 0℃~40℃ |
Dimensions (mm) | 234×88×46 |
Weight (g) | 600 |
