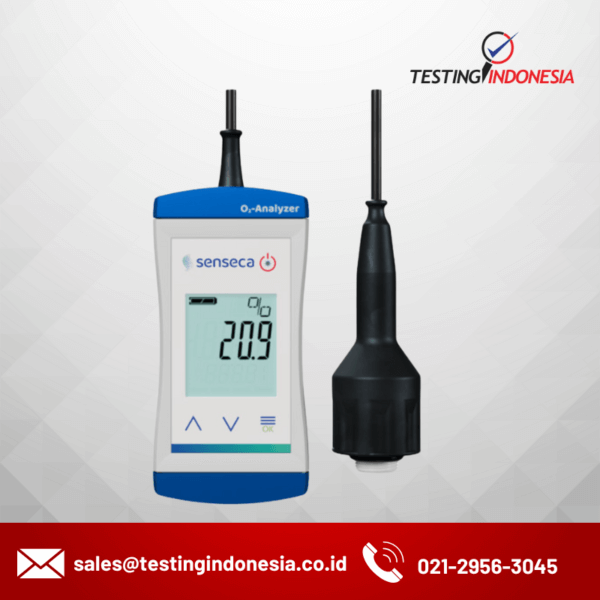

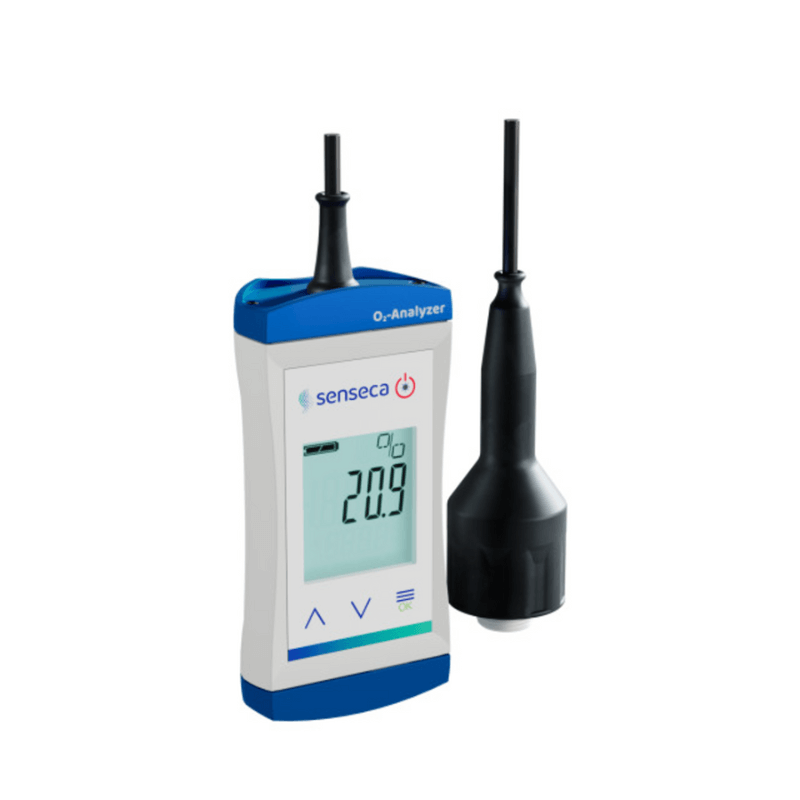

ECO 410(T)-MAX – O₂-Analyser / air oxygen meter (formerly G 1690)

Description

The ECO 410 / 410T deliberately focuses on the essential functions of measurement technology for reliable measurement of the O2 concentration in gases. The sensors used, GOEL 370 and GOEL 381, which are especially suitable for wet environments, are essential for reliability and durability.

The devices also impress with their ergonomics, water protection and display backlight.

This makes the ECO 410 / 410T an inexpensive and precise immersion gas detector, but it is also an inexpensive yet high-quality entry-level device for many other oxygen measurements – for example inert gas measurements.

ATTENTION:
The device is used for additional control. It does not replace an approved measuring device or safe methods for creating gas mixtures!

Display
Thanks to the backlight, the three-line LCD display offers ergonomic wide-angle visibility – by day and by night.
The HOLD function enables the display values to be frozen.

Power supply
2 powerful AA batteries, the energy-saving design and the configurable automatic switch-off function
ensure long operation.
Configurable LCD backlight for further energy saving options.

Spesification

Spesifikasi
Protection classIP65 / IP67, sensor IP54
Measurement rate1 meas/s
Power supply2 x AA-Alkaline batteries (scope of delivery)
Power consumptionca. 0.8 mA, ca. 2.8 mA with backlight
Weightca 175 g (including batteries and sensor)
Housing materialbreak proof ABS, screw locked battery compartment
Measuring range0,0 ... 100.0 % by volume O₂ (also for values <=0.2 and over 36 vol.% O₂)
ConnectionsThread M16x1, 3.5 mm audio plug socket
Response time90% in < 10 sec., depending on temperature
Operating conditions-20 ... +50 °C; 0 ... 95 % r.h. (short-term condensation possible)
Nominal temperature25 °C
Storage temperature-20 ... +50 °C (without batteries)

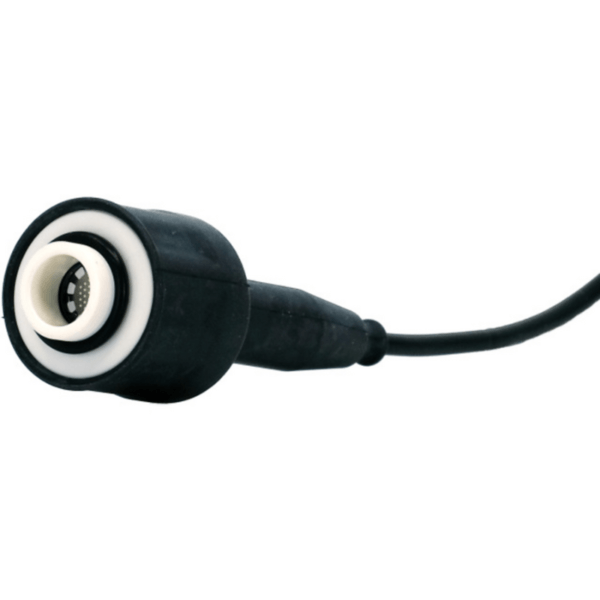

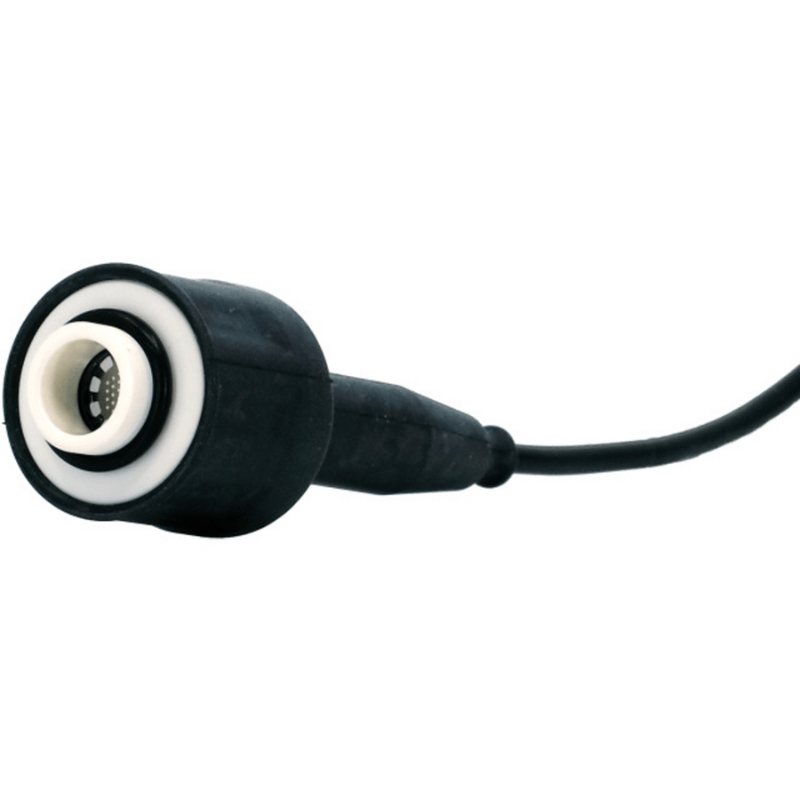

Sensor cable0.95 m, audio plug, elastic sensor protector
Display3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at the push of a button
Dimensions108 x 54 x 28 mm (instrument without cable and sensor)
Accuracy (nominal temperature)< 35 Vol.-% O₂: ±0,25 Vol.-% O₂ 35...100 vol.-%O₂: ±2%*(measured value 20.9 vol.-%O₂)
Automatic Power-OffYes, configurable by the user
Battery life> 3000 h typ. continuous operation (without backlight)
Housingbreak-proof ABS, polyester (front panel)
Operating conditions sensor0 … 45 °C (recommended 5 … 30 °C) 600 ... 1750 hPa abs.
Accuracy - calibrated to ambient airECO 410-35: - Sensor GOEL 370 - < 35 vol. % O₂: -0.2 … +0.35 vol. % O₂ - 35…100 vol. % O₂: not specified - Sensor life time at 20.9 vol. % O₂ ca 2 yearsECO 410-MAX: - Sensor GOEL 381 - < 35 vol. % O₂: ± 0.25 vol. % O₂ - 35…100 vol. % O₂: ± 2% * (value - 20.9 vol. % O₂) - Sensor life time at 20.9 vol. % O₂ >3 years
Application areafor shielding gases with the lowest O₂ content or high-percentage oxygen mixtures with a low CO₂ content
Permissible differential pressure diaphragm | environmentmax ±0.25 hPa
Process connectionThread M16x1
Sensor service lifeat 20.9% O₂ by volume > 3 years
Sport diver versionMOD calculation for nitrox up to 36% Resolution 1ft. Resolution 1m
