Description

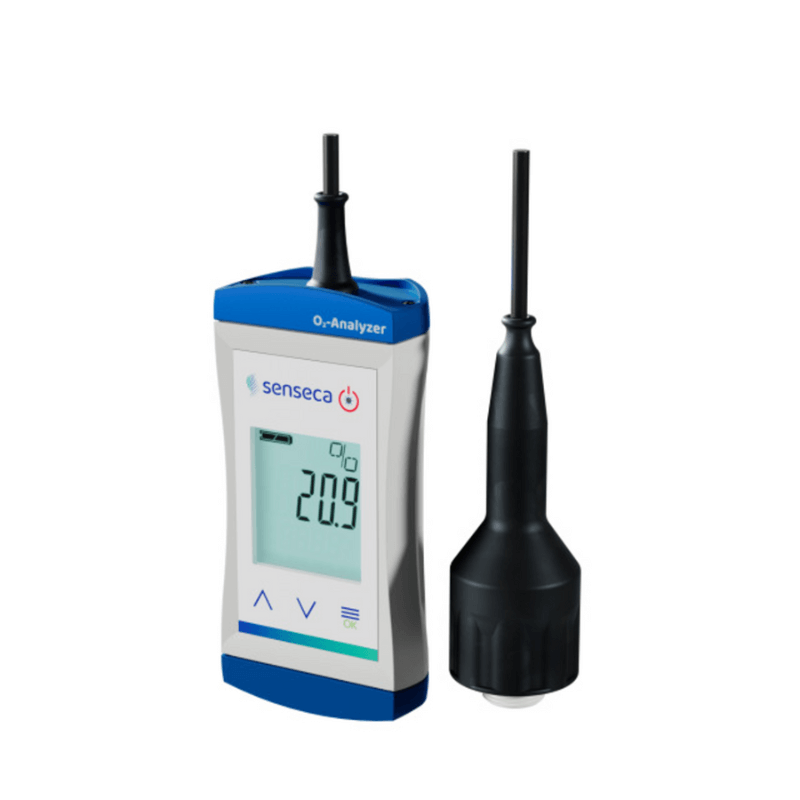

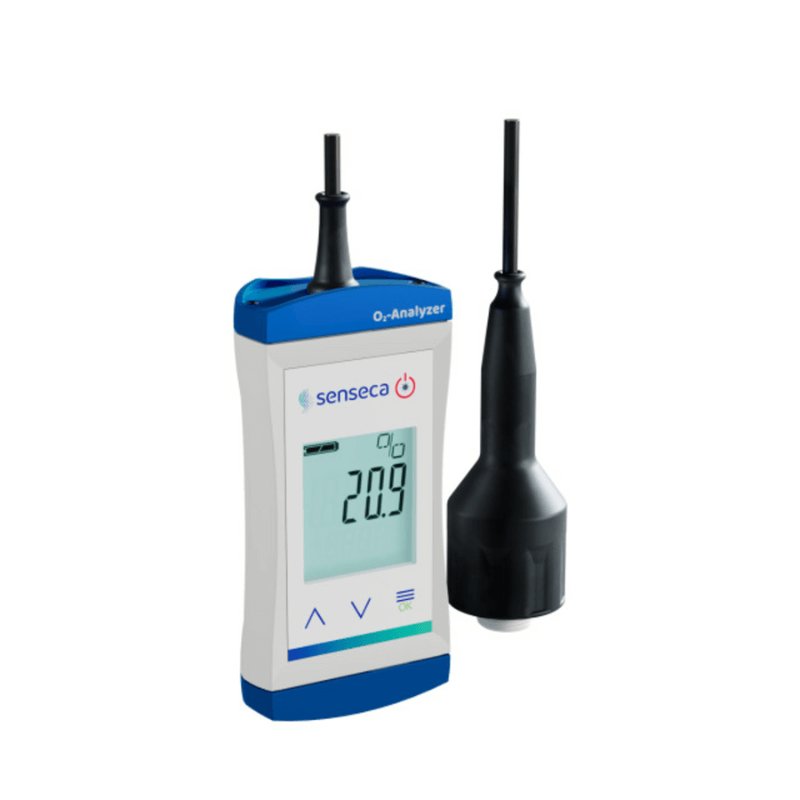

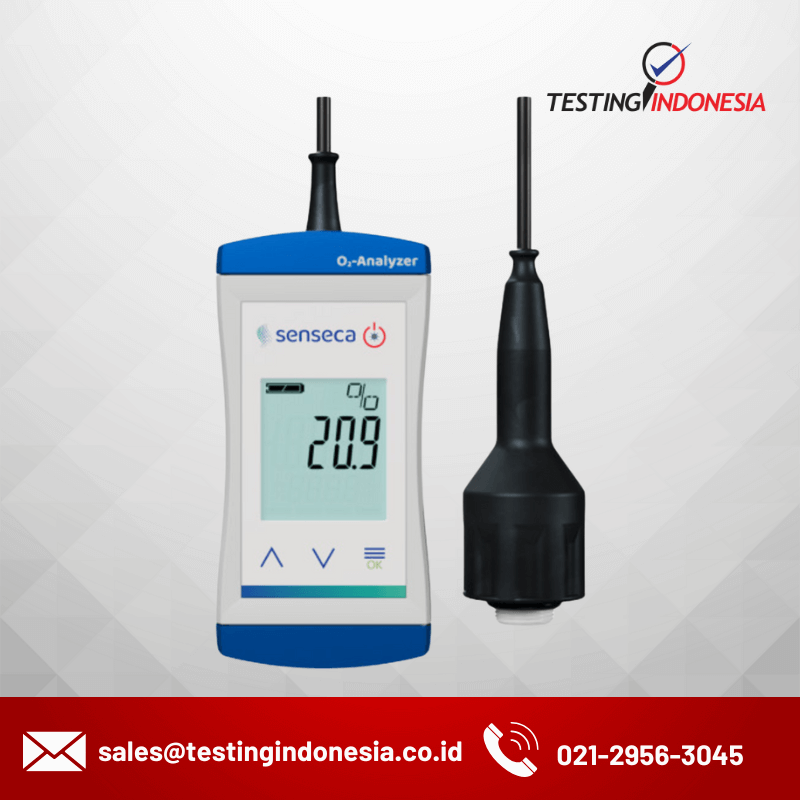

The ECO 410 / 410T deliberately focuses on the essential functions of measurement technology for reliable measurement of the O2 concentration in gases. The sensors used, GOEL 370 and GOEL 381, which are especially suitable for wet environments, are essential for reliability and durability.

The devices also impress with their ergonomics, water protection and display backlight.

This makes the ECO 410 / 410T an inexpensive and precise immersion gas detector, but it is also an inexpensive yet high-quality entry-level device for many other oxygen measurements – for example inert gas measurements.

ATTENTION:
The device is used for additional control. It does not replace an approved measuring device or safe methods for creating gas mixtures!

Display
Thanks to the backlight, the three-line LCD display offers ergonomic wide-angle visibility – by day and by night.
The HOLD function enables the display values to be frozen.

Power supply
2 powerful AA batteries, the energy-saving design and the configurable automatic switch-off function
ensure long operation.
Configurable LCD backlight for further energy saving options.

Spesification

Category	Specification
Protection class	IP65 / IP67, sensor IP54
Measurement rate	1 meas/s
Power supply	2 x AA-Alkaline batteries (scope of delivery)
Power consumption	ca. 0.8 mA, ca. 2.8 mA with backlight
Weight	ca 175 g (including batteries and sensor)
Housing material	break proof ABS, screw locked battery compartment
Measuring range	0,0 ... 100.0 % by volume O₂ recommended for 0.2 ... 35.0 % vol. O₂, outside reduced accuracy
Connections	Thread M16x1, 3.5 mm audio plug socket
Response time	90% in < 10 sec., depending on temperature
Operating conditions	-20 ... +50 °C; 0 ... 95 % r.h. (short-term condensation possible)
Nominal temperature	25 °C
Storage temperature	-20 ... +50 °C (without batteries)

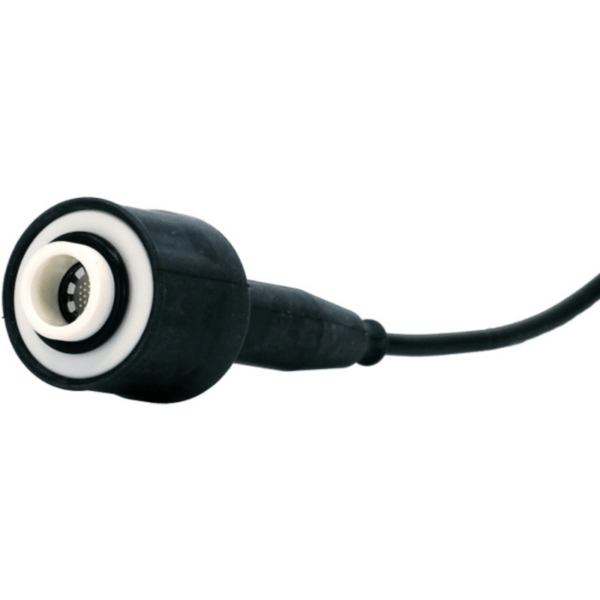

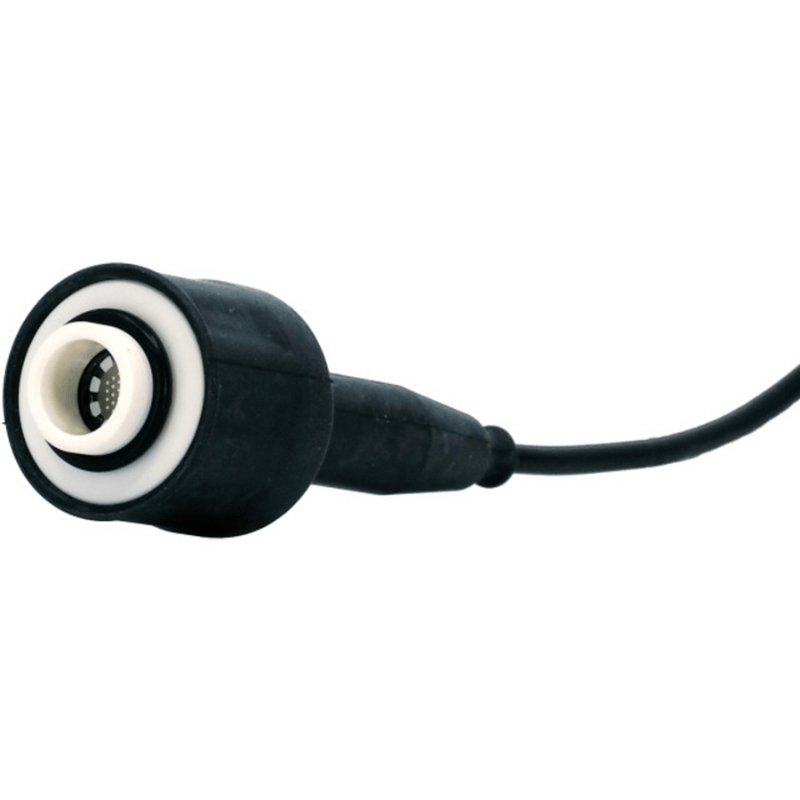

Sensor cable	0.95 m, audio plug, elastic sensor protector
Display	3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at the push of a button
Dimensions	108 * 54 * 28 mm (instrument without cable and sensor)
Accuracy (nominal temperature)	< 35 Vol.-% O₂: -0,2 … +0,35 Vol.-% O₂ - Not specified beyond this
Automatic Power-Off	Yes, configurable by the user
Battery life	> 3000 h typ. continuous operation (without backlight)
Housing	break-proof ABS, polyester (front panel)
Operating conditions sensor	0 … 45 °C (recommended 5 … 30 °C) 600 ... 1750 hPa abs.
Accuracy - calibrated to ambient air
ECO 410-35:	Sensor GOEL 370
	< 35 vol. % O₂: -0.2 … +0.35 vol. % O₂
	35…100 vol. % O₂: not specified
	Sensor life time at 20.9 vol. % O₂ ca 2 years
ECO 410-MAX:	Sensor GOEL 381
	< 35 vol. % O₂: ± 0.25 vol. % O₂
	35…100 vol. % O₂: ± 2% * (value - 20.9 vol. % O₂)
	Sensor life time at 20.9 vol. % O₂ >3 years
Application area	Standard for diving gas for recreational diving, protective gases with increased CO₂ content and much more.
Permissible differential pressure diaphragm	environment: max ±0.25 hPa
Process connection	Thread M16x1
Sensor service life	at 20.9% O₂ by volume approx. 2 years
Sport diver version	MOD calculation for nitrox up to 36%
	0 bis + 169 ft. MOD
	0 bis + 60m MOD
