ECO 522 – Waterproof universal conductivity measuring device (formerly G 1410)

Category:

Description

When developing the new ECO-Line, the main focus was placed on the essential functions of the measurement technology.
Pure measurement with a focus on precision, speed and reliability packed into a compact housing, which is characterized by a convincing price/performance ratio.
The new handheld meters also impress with their ergonomic design, dust and water-protected design in accordance with IP 65/67 and the illuminated display.
The compact ECO 522 conductivity meter has a special measuring cell for high-resolution ultrapure water applications.

Application

Freshwater and seawater aquariums, reverse osmosis and similar filters, cleaning processes, cooling/lubrication processes, plant cultivation and agriculture; laboratories, quality assurance, service

Spesification

Protection class: IP65 / IP67
Accuracy:
 Conductivity: Typ. ±1 % of mv ±0.5 % FS
Temperature: ±0.3 °C
Power supply: 2 x AA Alkaline batteries (included)
Power consumption: <1 mA
Weight: approx. 200 g
Housing material: Impact resistant ABS, polyester front panel
Measuring range:
 Conductivity: 0 ... 2000 μS/cm 0.00 ... 20.00 mS/cm 0.0 ... 100.0 mS /cm
TDS: 0 ... 2000 mg/l
Salinity (PSU): 0.0 ... 50.0 g/kg water
Temperature: -5.0 ... +105.0 °C

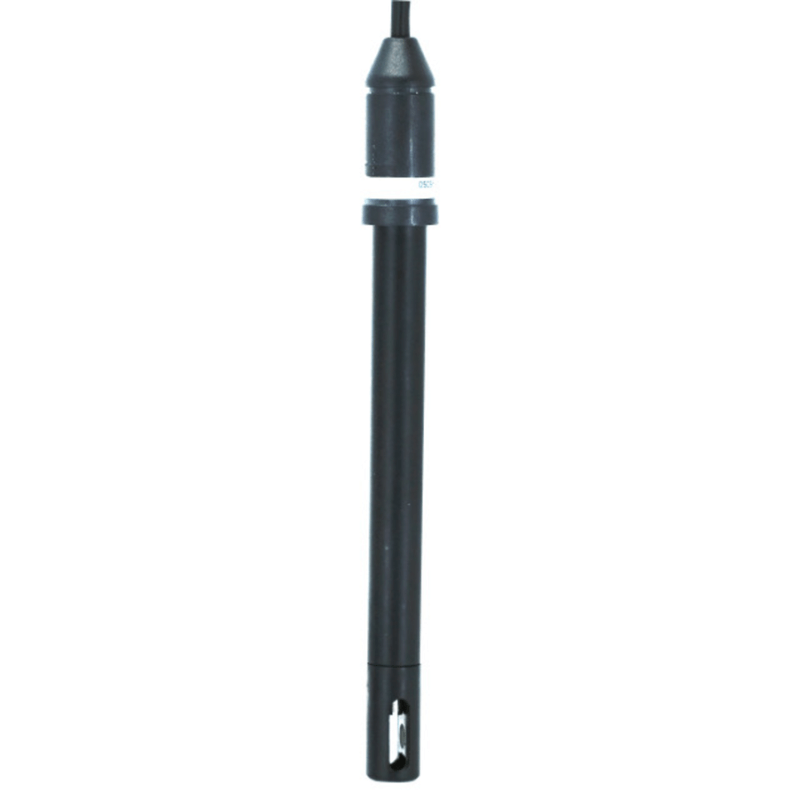

Sensor: 2-pole meas. cell, Ø 12 mm graphite
Connections: Fixed 2-pole measuring cell with integrated temperature sensor
Storage temperature: -20 ... +50 °C (without batteries)
Display: 3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at keypress
Dimensions: 108 x 54 x 28 mm (instrument without sensor) (H x W x D)
Additional functions: automatic Measuring range shifting, automatic temperature compensation
Automatic Power-Off: Yes, configurable by the user
Battery life: > 1000 h
Measuring: Conductivity, salinity, TDS
Operating conditions instrument: Instrument: -20…+50°C; 0 ... 95 % r.H, Sensor: -5..+80 °C (temporarily 100 °C)
Cable length: 1.2 m
Conductivity accuracy up to 2000 μS per cm: ±0.5 % of meas. v., ±0.5 % FS
Measuring range conductivity: 0..2000 μS/cm, 0,00..20,00 mS/cm, 0,0..100,0 mS/cm (With automatic Measuring range shifting)
Measuring range Salinity (PSU): 0.0..50.0 g/kg
Measuring range TDS: 0..2000 mg/l
Oxygen: ±1.5 % of meas. value ± 02 mg/l or -> 0.2
Reference temperatures: 20 and 25 °C
Temperature range: -5.0 ... +105.0 °C
Temperature accuracy: ±0.3 °C
Temperature compensation: Off: deactivated, nLF: non linear, acc. To EN 27888
