ECO510 – Waterproof pH meter (formerly G 1500)

Description

When developing the ECO 51x series, the focus was placed on the essential functions of measurement technology.
Pure measurement with a focus on precision, speed and reliability, packaged in a compact housing, is what makes the outstanding price-performance ratio, Made in Germany, possible.
The handheld meters also impress with their ergonomic design, dust and water-protected design in accordance with IP 65/67 and the illuminated display.
The compact pH meters are a real alternative to pH sticks on the one hand and high-priced, complex devices on the other.
The ECO 510 meter enables measurements in the pH range, while the ECO 511 also offers the option of pH/redox measurements with a temperature input (Pt1000)

Applications

The measuring devices can be used in aquaristics, aquaculture and water monitoring, plant cultivation, agriculture, laboratories, quality assurance, service and food.
Applications without temperature input necessary: Measuring in pools, well-water, etc.: Temperature is constant – can be entered manually once.
Applications where temperature input of ECO 511 is recommended: Field measuring, e.g. surface water, wastewater, etc.: Temperature is compensated most precise and comfortable!

Display

Thanks to backlight, the three-line LCD display offers ergonomic wide-angle visibility - by day and night.

Power supply

2 powerful AA batteries, the energy-saving design and the configurable automatic switch-off function ensure long operation.
Configurable LCD backlight for additional energy-saving options.

Spesification

KategoriSpesifikasi
Protection classIP65 / IP67 (only with electrodes with waterproof BNC connection)
Accuracy±0.02 pH ± 1 digit (at nominal temperature 25 °C)
Power supply2 x AA alkaline batteries (included)
Power consumption<1 mA
Weightapprox. 130 g
Housing materialImpact resistant ABS, polyester front panel
Measuring range0.0…14.00 pH

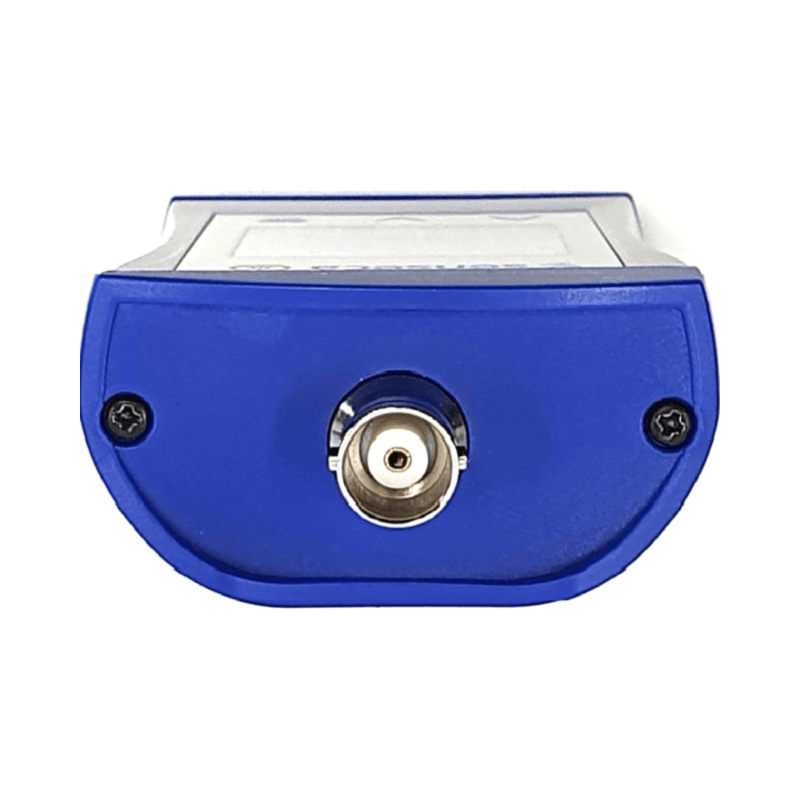

ConnectionspH electrode connectible via BNC, standard GE 114 WD
Temperature compensationCan be set on the device
Operating conditions-20...50 °C device (note the application range of the electrode, usually -5...50°C)
Storage temperature-20 ... +70 °C (without batteries)
Display3-line with battery status display, Backlight, protected by shatterproof glass, Overhead display at the touch of a button
Dimensions108 x 54 x 28 mm (incl. BNC: 116 x 54 x 28 mm)
Battery life> 3000 h typ. continuous operation
InputBNC pH electrode connector (Temperature input manually)
Max cable length3 m
Recommended electrodesStandard GE 114 WD, GE100

Catalogue

umn_fam_ECO510_ECO511_en.pdf dsh_fam_ECO51x_en.pdf
