Traditional technology reinvented

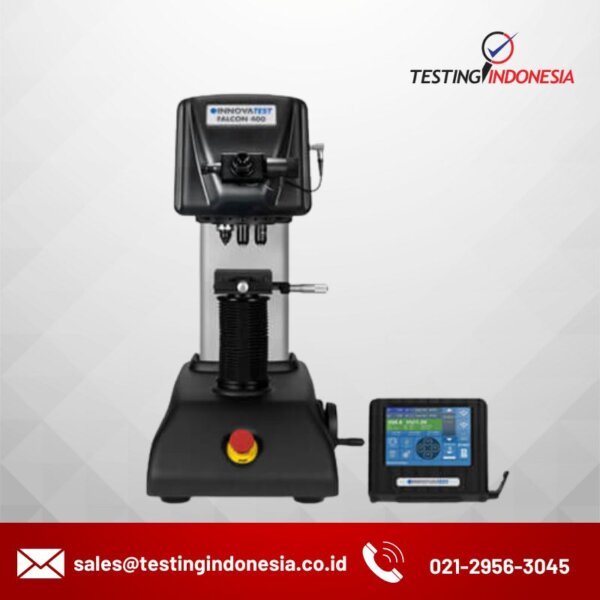

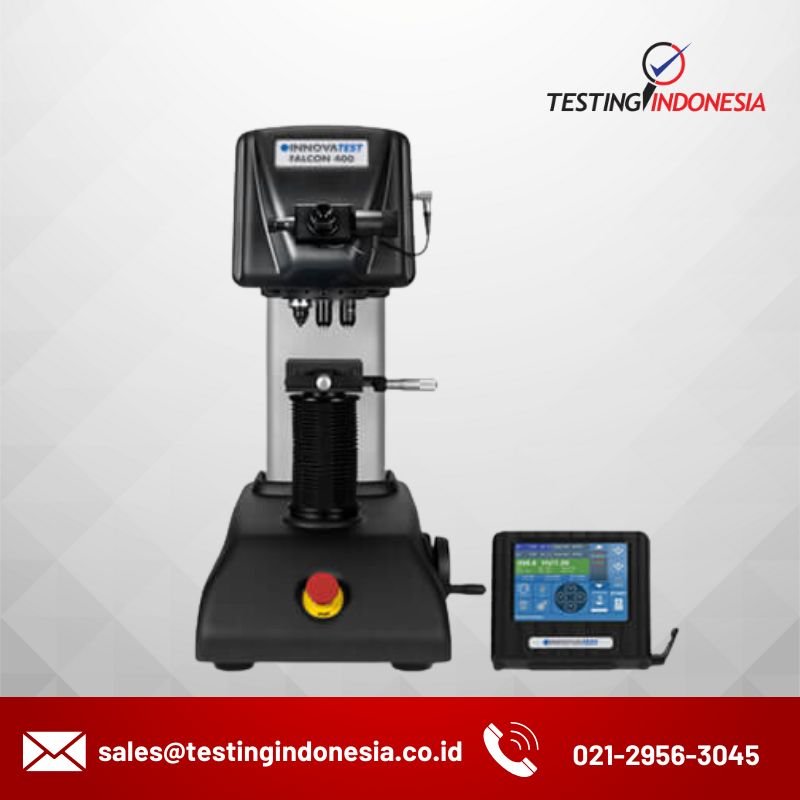

The FALCON 400 improves on the conventional hardness testing methods by focusing on elimination of user influence on the test results. The advanced force sensor technology utilizes an electronically controlled loadcell closed loop system with force feedback to achieve absolute accuracy, reliability and repeatability, on all of the forces used for a testing.

The innovative software functions of I-Touch™ workflow control, allows file storage, test program setting and storing, limit settings, conversions to other hardness scales, system setup and convex and concave sample test settings that contribute to the exceptional repeatability and reproducibility of test results.


Scales: Micro Vickers, Vickers, Knoop Brinell Test Forces: 5gf – 31.25kgf (multi load cell, closed loop) Eyepiece: 15X magnifying eyepiece Objectives: 5X, 10X, 20X, 50X, 100X 6 Position Turret: 2 indenters, 4 objectives Illumination: Power LED Control: i-Touch full color touch screen
Z-Axis: Manually operated, fine adjustable on the side XY-Stage: Manual, 100mm X 100mm, travel 25mm X 25mm Workpiece Acc.: 150mm (H) X 170mm (D) Output: USB Camera & Autom.: Optional Impressions™ automation packages, camera mounted invisibly under top cover, motorized stages
