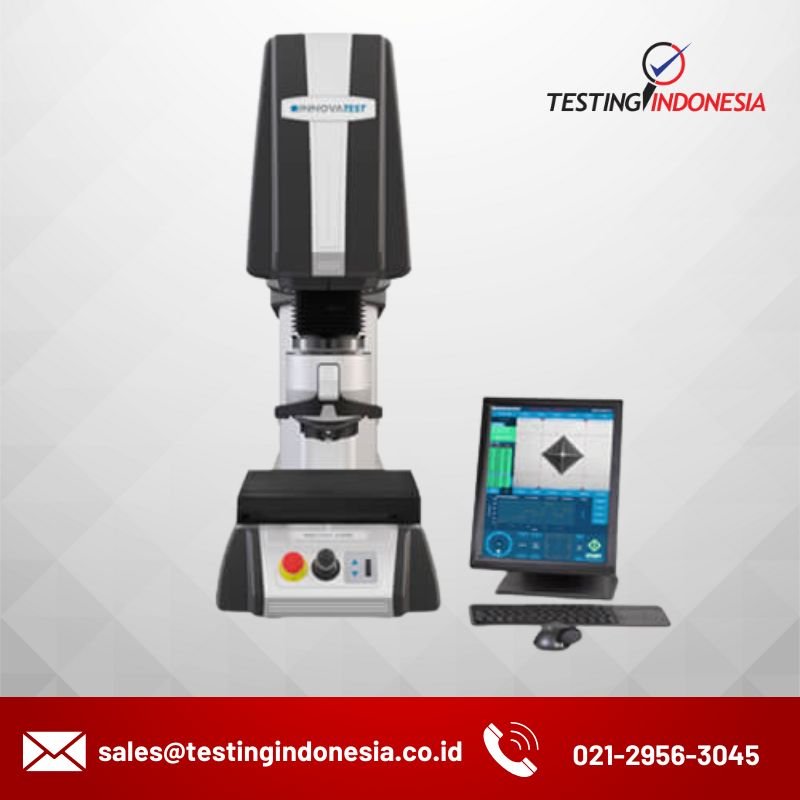

FALCON 5000

Description

The cutting edge, of the leading edge

The FALCON 5000 Series Micro Hardness testing systems provide exceptional performance and are designed with enhancements that deliver unparalleled accuracy and reliability, improved ergonomics and an overall enhanced and pleasant experience for the operator.

The IMPRESSIONS™ tester control and work flow software forms an integral component of the testing system, decreasing set up time and increasing testing efficiency. The use of programmable test patterns and specific designed software applications are developed upon the request of demanding users.

FALCON 5000 hardness testing instruments are routinely used for testing metals and plastics, in the aerospace and automotive industry, laboratories for sample evaluation, or to conduct common but versatile testing tasks.

Highlights

Scales: Micro Vickers, Vickers, Knoop, Brinell

Test Forces: 10gf – 250kgf (multi load cell, closed loop)

Camera: 18 Megapixels, Full HD camera system, with zoom and auto-focus

Overview Camera: Full HD optical zoom stage overview camera

Objectives: 2.5X, 5X, 10X, 20X, 40X, 60X, 100X

8 Position Turret: 2 indenters, 4 objectives, Class 2 laser for positioning and optional integrated overview camera

Illumination: Power LED

Control: Fully integrated i7 Controller, Windows 10 operated, 15” industrial touch screen, IMPRESSIONS™ advanced workflow software, includes automatic measurement, stage control & pattern configurator, keyboard & mouse

Z-Axis: Descending test head, with collision detection, CNC motorized, ball bearing slide, with fast up down and digital scroll wheel for fine adjustment

XY-Stage: Manual, motorized stages or/and anvils or work tables at choice

Joystick: X-Y-Z control over integrated joystick

Workpiece Acc.: 150mm (H) X 230mm (D). XL model : 300mm (H) X 225mm (D)

Output: USB, LAN, Bluetooth

Software: Large choice of software options, features, plugins and add-ons, Q-DAS certified
