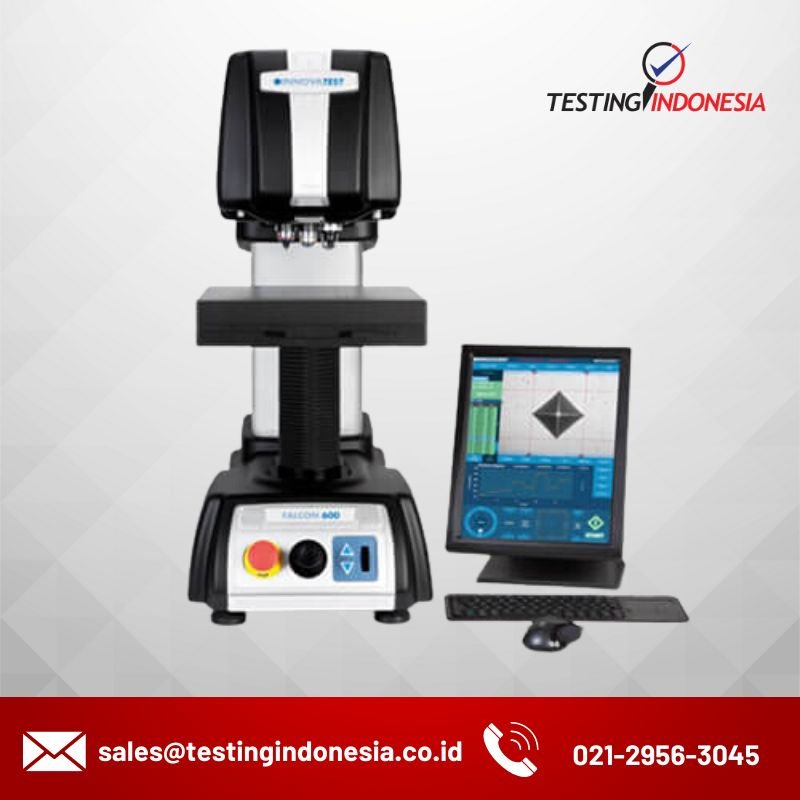

The FALCON 600 Automated Hardness Testing System provides a fully integrated platform for your complete Vickers, Knoop & Low Force Brinell hardness testing needs.

Coming from a leading edge of mechanical design, with a range of CNC stages and best in class optics, 18 Megapixels, 4K, full color image technology, to a fully featured, easy to use, User Interface.

A standard force range of 1gf to 62.5kgf, optional going down to forces as low as 0.1gf, to be used in combination with any thinkable software application, provides a micro hardness testing machine for today, tomorrow and better… for the future.


Scales: Micro Vickers, Vickers, Knoop, Brinell Test Forces: 0.1gf – 62.5kgf (multi load cell, closed loop) Camera: 18 Megapixels, 4K, Full HD camera system, with zoomand auto-focus Overview Camera: Standard Full HD optical zoom stage overview camera Objectives: 2.5X, 5X, 10X, 20X, 50X, 100X 6 Position Turret: 2 indenters, 4 objectives, with collision detection system Control: Fully integrated i7 Controller, Windows 10 operated, 15” industrial touch screen, IMPRESSIONS™ advanced workflow software, includes automatic measurement, stage control & pattern configurator, keyboard & mouse
Illumination: Power LED Z-Axis: CNC motorized, ball bearing slide, with fast up down and digital scroll wheel for fine adjustment XY-Stage: Manual or motorized Joystick: X-Y-Z control over integrated joystick Workpiece Acc.: 200mm (H) X 170mm (D) Output: USB, LAN, Bluetooth Software: Large choice of software options, features, plug-ins and add-ons, Q-DAS certified
