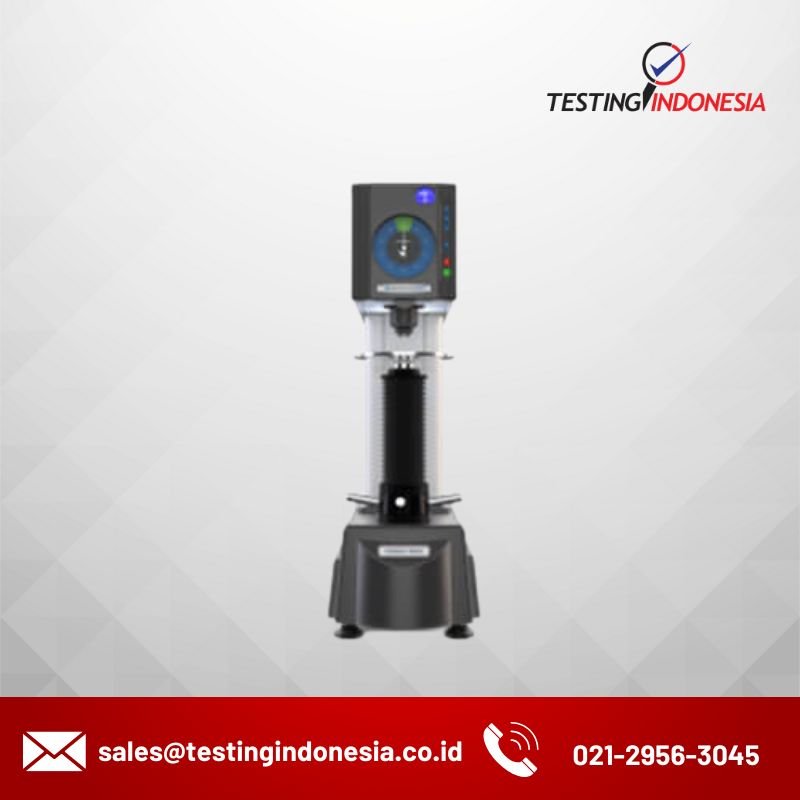

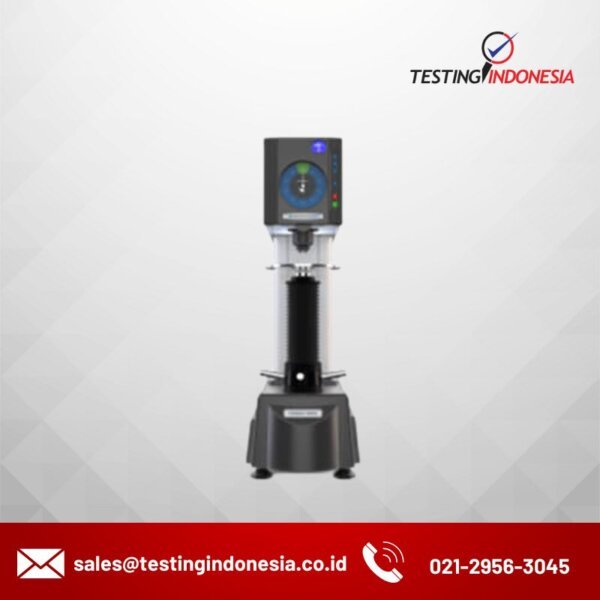

FENIX 200ACL

Description

Affordable Rockwell testing, re-invented
A load cell, closed loop, force feedback, test force application system that is absolutely unique in this class of instruments. Limited mechanical structure, without weights or weight selection.Hardness scales can be selected on the digital display. Conduct Rockwell hardness testing with great force precision and without the disadvantage of a relative complex mechanical dead weight system. The internal system can be serviced by removing the side and top covers, no need to turn the machine around.

Highlights

Scales: Rockwell & Brinell Test Forces: 10kgf pre-load, 60, 100, 150kgf main load. All Brinell test forces from 10kgf -187.5kgf. Automatic, Load cell, closed loop, force feedback Load App. System: Meets or exceeds the requirements of ASTM and ISO Indicator: Adjustable dial indicator: reading 0.5 HR Rockwell units
Display: Dwell time, test force setting, scale selection, calibration Illumination: LED indenter & workpiece illumination Bottom Shell: ABS, protects tester against falling objects Workpiece Acc.: 260mm (H) X 150mm (D)
