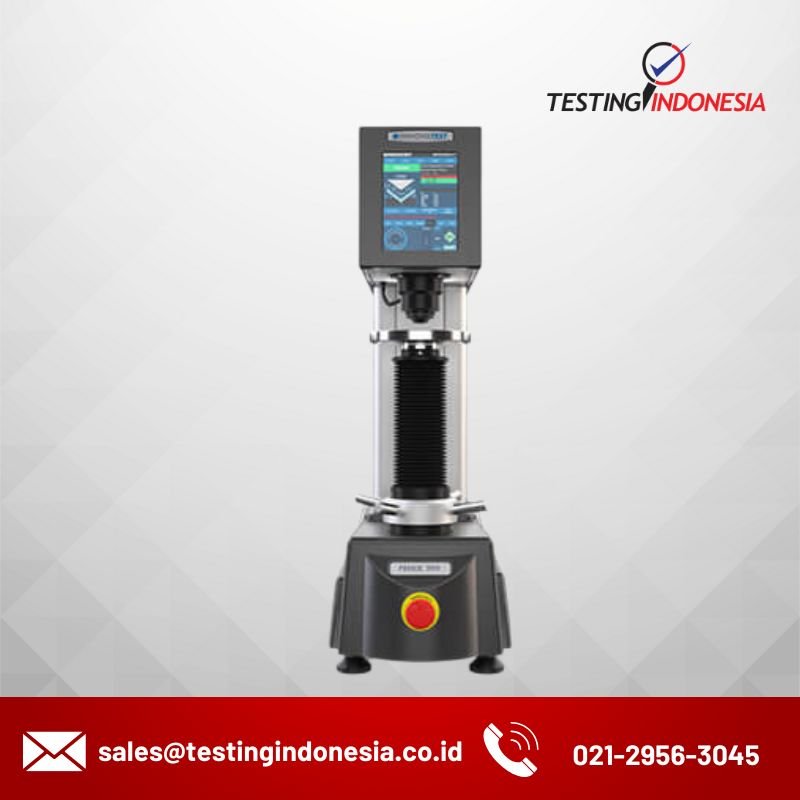

The IMP version of the FENIX 300RS combines the excellent force application and measuring system with an advanced machine controller running on Windows 10.

Make connection to your network by WIFI or LAN, connect to a printer, a Quality system or MS application; the IMPRESSIONS™ LT system offers great flexibility.


Scales: Rockwell, Superficial Rockwell & Brinell (optional) Test forces: 3, 10kgf pre-load, 15, 30, 45, 60, 100, 150kgf main load. All Brinell test forces from 1kgf -250kgf (optional). Automatic, Load cell, closed loop, force feedback Load app. system: Meets or exceeds the requirements of ASTM and ISO Display: 6.5” industrial full color touch screen Software: IMPRESSIONS™ LT Software, workflow control, integrated inductrial PC, Windows 10 licensed.
Memory: 128 GB Output: USB, RJ45, WiFi Ilumination: Integrated power LED test spot illumination Bottom shell: Replaceable ABS bottom cover avoids body damage. Workpiece Acc.: 240mm (H) X 150mm (D)
