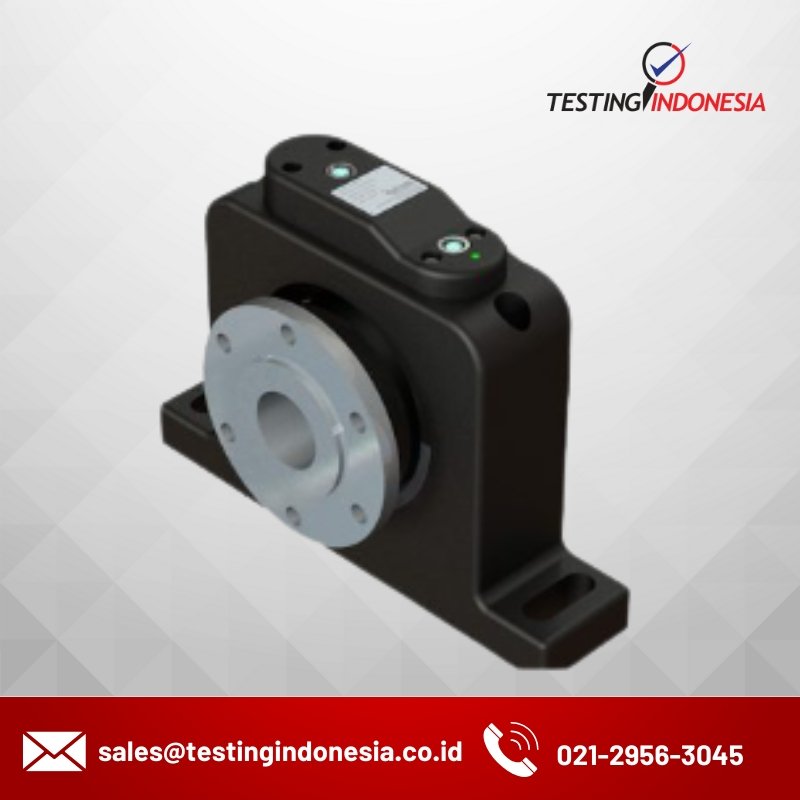

FF425 Non-Contact Flange Torque Transducer

Contactless torque transducers with flange couplings at either end with measuring ranges from 0-100nm up to 30knm as standard (bespoke sensors up to 16mnm) for a variety of in line static and rotary torque measurement applications.

Description

Series FF425 Non-Contact Rotary Torque Transducer and Series FF410 Static/Reaction Torque Sensor

The Datum Electronics Series FF425 flange non-contact rotary torque transducer and FF410 torque sensors have been designed to fit easily inline with any drive train or test rig using standard DIN size couplings. With Flange couplings at either end of the torque transducer, it has many advantages over other torque measurement systems on the market.

sensor torsi ff425

The FF425 rotary torque transducer utilises a strain gauged shaft for accurate and reliable torque measurement and a set of rotating on shaft conditioning electronics. The digital signals are transmitted to the non-rotating part of the system or stator providing a reliable and highly accurate torque measurement solution.

Using our revolutionary new electronics as used in our industry standard, our M425 inline rotary torque sensor,  the FF425 gives customers higher resolution with up to 24bit resolution and the ability to choose their sample rates from 1 up to 4000sps.

FF425 Non-Contact Torque Sensor Range

FF425 Torque Sensor Measurement Range
Torque Sensor Size12345
Torque Sensor Range: A 0-100Nm0-250Nm0-1,000Nm0-5,000Nm15,000Nm
Torque Sensor Range: B0-500Nm0-2,000Nm0-10,000Nm20,000Nm
Torque Sensor Range: C 0-25,000Nm
Torque Sensor Range: D 0-30,000Nm
Max Shaft Speed (rpm)0-10,0000-10,0000-10,0000-8,0000-6,000

The FF410 Static/Reaction Torque Sensor Range

If you’re looking to measure static torque? Then the Datum Electronics Series FF410 Reaction torque sensor with standard DIN flanges will be an ideal and cost-effective choice. This static torque sensor was based on our FF425 series of rotary torque transducers and is used to measure torque with no rotation or angular acceleration. As in the FF425 Flange to Flange Torque Sensor range, FF410 Reaction transducer design uses the same basic shaft components and cutting-edge strain gauge technology, allowing us to keep the reaction torque transducer competitively priced with a high torsional stiffness included.

Easy Fit into Drive Train

The 410 Static Non-Contact Torque Transducer and FF425 Flange to Flange Rotational Torque Sensors easily fit into your existing test rig, test bench or drive train. Using standard DIN flanges, fitting and coupling, the FF 425 dynamic torque sensors and FF110 static torque transducers are made more efficient than other options available. The minimum operating envelope of the Datum flange to flange torque meters starts from 100mm and will increase depending upon torque measurement requirements.

Features

The FF425 non-contact rotary flange to flange torque sensor has 11 standard torque ranges. The torque sensor offers very high accuracy, operational stability, high signal resolution and wide range of signal outputs across the whole range of torque from 0-100Nm and up to 30,000Nm.

  • Fully Non-Contact Transmission and Hardware
  • Accuracy: 0.1%
  • Non-Linearity: 0.1%
  • Repeatability: 0.05%
  • Sample Rate: 1 to 4000 samples per second
  • Serial Torque Outputs: SCADA outputs, including RS485, RS232, Ethernet, Modbus UPD, USB Logging
  • Analogue Torque Outputs: 4-20mA configured 4-20mA (4-12-20mA): +/-10Vdc, +/-5Vdc, 0-10Vdc or 0-5Vdc
  • Operating Range: -10 to +70˚C
  • Environmental Protection: IP54 (see RS425 Torque Sensor for IP67/68)
  • Power Supply: 10-24Vdc 250mA

Dimension

   ABCDEFMNO
Torque Sensor SizeRated Load
(Nm)
Rated Load
(lb ft)
Rotational
Speed (RPM)
Shaft Length Face to FaceBody WidthFlange
Dia.
Male/Female Flange Coupling extrusion/
depth
Male/Female
flange coupling
Ø H7/
h6 TOL (mm)
(ISO 286)
Flange ThicknessBase lengthOverall
height
Base
fixing slot.
Centre
to centre
(mm)
Size 10-1000-1000-10,00097.5501002.5578220143.5188
Size 2 – A0-2500-2000-10,00097.5501002.5578220143.5188
Size 2 – B0-5000-4000-10,00097.5501002.5578220143.5188
Size 3 – A0-1,0000-7500-10,00097.5501202.5758220143.5188
Size 3 – B0-2,0000-1,5000-10,000107.5501202.5758220143.5188
Size 4 – A0-5,0000-4,0000-8,00013750180311012220172.5188
Size 4 – B0-10,0000-8,0000-8,00015760185311015220172.5188
Size 5 – A0-15,0000-12,0000-6,000216602505.514020300212.5266
Size 5 – B0-20,0000-15,0000-6,000216602505.514020300212.5266
Size 5 – C0-25,0000-20,0000-6,00021660285617520300212.5266
Size 5 – D0-30,0000-25,0000-6,00021660315619022300212.5266
