Flush Diaphragm Pressure Transducer

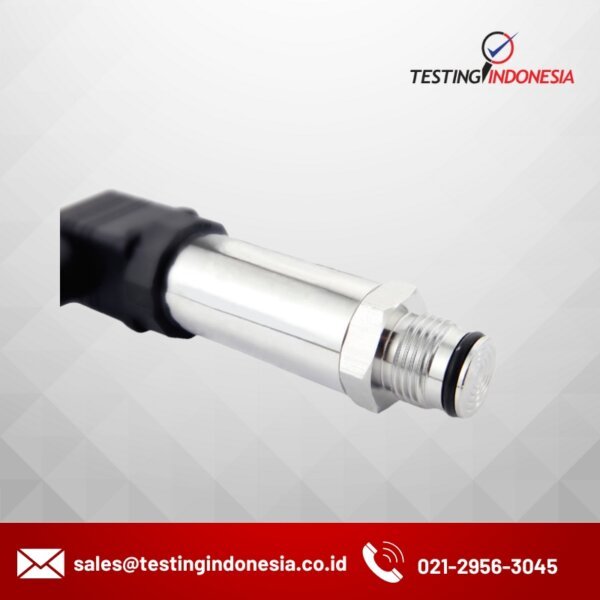

The P600FD flush diaphragm pressure transducer is designed for use in food, process and industrial applications.  It is ideal to use where the media is either viscous, contains particulates or solids, or is otherwise liable to block the port of a conventional pressure transducer with a recessed diaphragm or pressure port.

The P600FD flush diaphragm pressure sensor is also particularly suitable for applications where cavity-free installation or low volumetric displacement is required.

The wetted parts of the flush pressure sensor are manufactured from 316 Stainless Steel and Nitrile, ensuring excellent long-term performance.

The process connection is a ½” BSP male as standard, while electrical output is an industry standard 2 wire 4-20mA signal, which exits through a DIN43650 plug & socket rated to IP65, for harsh environments.


  • Ranges: 0-5bar up to 0-400bar
  • Outputs: 4-20mA
  • Environmental Protection: IP65
  • Accuracy: <±0.3%/FS
  • ½” BSP or 1″ BSP Pressure Port (1″ BSP only below 6bar)
  • Flush Sensing Diaphragm
  • ATEX Version: II 1 GD EEx ia IIC T4


  • Ideal to use in Viscous/Partially Solid Media – Perfect for the Food Industry
  • ATEX Certified Explosive Atmosphere Versions Available
  • Protected from Low-Pressure Water Jets to Suit Most Environments
  • Save Time With In-Field Span and Zero Adjustments – No need to send in your pressure sensor for re-calibration for those minor changes.
  • Stainless Steel Construction Offers Excellent Long-Term Performance

Technical Spesification

Input pressure range
Nominal Pressure RangeBar (gauge)561016254060100160250400
Permissible OverpressureBarx 1.5x 1.5x 1.5x 1.5x 1.5x 1.5x 1.5x 1.5x 1.5x 1.5x 1.5
Output Signal & Supply VoltageNumber of WiresOutputSupply Voltage
P642FD2 - wire4 - 20mA13 - 36Vdc (unregulated)
P642FDX2 - wire4 - 20mA (ATEX)13 - 28Vdc (unregulated)
P605FD3 - wire0 - 5Vdc13 - 30Vdc (unregulated)
P6010FD3 - wire0 - 10Vdc13 - 30Vdc (unregulated)


Accuracy (non-linearity, hysteresis, repeatability)% Full Scale Output<±0.30 (BFSL)
Zero Offset and Span Tolerance% Span±1
Zero Offset and Span Adjustment% Full Scale Output±5 with easy access trimming potentiometers
Media Temperature˚C-20 to +85
Ambient Temperature˚C-20 to +85 (-20 to +70 ATEX version)
Storage Temperature˚C+5 to +40
Thermal Zero Shift (TZS)% / FS / ˚C<±0.04 typical
Thermal Span Shift (TSS)% / FS / ˚C<±0.04 typical
Reverse Polarity ProtectionProtected against supply voltage reversal up to 50Vdc
Media CompatibilityAny media compatible with 316L Stainless Steel & Nitrile
Weightgrams90 nominal
Insulation ResistanceMegohm @ 50 Vdc>100
Electrical ConnectionMating socket with screw terminal connections to DIN 43650
Pressure Connection1/2” BSPP male with integral Nitrile seal and flush 316L diaphragm. 1” BSPP male wih semi-flush diaphragm optional.
Response Time (10% - 90%)ms≤1
Environmental ProtectionIP65
Load Driving Capability4 - 20mA versionsupply voltage - 10V / 0.02A (i.e. 36V - 10V / 0.02A = 1300Ω
0-5V / 0-10V versions>5kΩ / >10kΩ
Long Term Stability% / Full Scale< 0.2 / 6 months
Operational LifePressure Cycles> 108 typical
ATEX Approval (4-20mA versions only)Ex II 1 G Ex ia IIC T4 Ga (zone 0)
Ex II 1 D Ex ia IIIC T135°C Da (zone 20)
EX I M 1 Ex ia I Ma (group I M1)

Product Dimensions

*All dimensions are show in mm

Wiring Details

Pin No.2 Wire (4 - 20mA)3 Wire (0 - 5Vdc / 0 - 10Vdc)
1+ve supplycommon
24 - 20mA signal+ve supply
3not fitted+ve output
to caseto case
