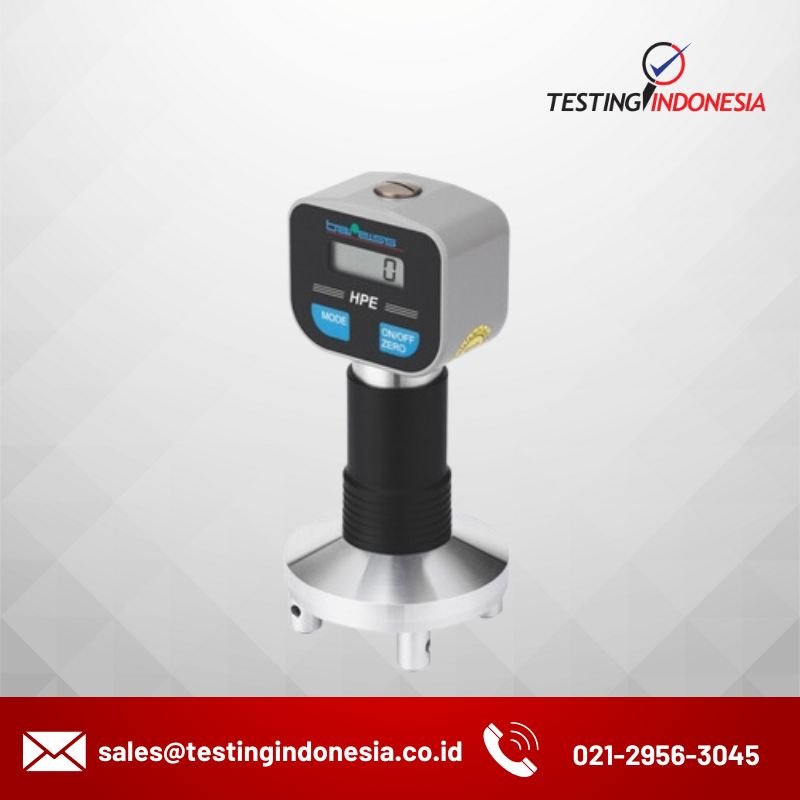

Hardness tester for fiberglass, thermo plastics, aluminum HPE II Barcol


Hardness testing on flat and slightly curved samples.

Advantages of the Barcol tester

Display with two lines gives information about test series, measuring process, result and number of saved results.

Resolution 1 Barcol


Memory: for 300 measured values Lithium battery: 3.6V with approx. 2000 hours operating time Data output: RS 232 Measurement: LxWxH 190 x 70 x 40 mm Weight: 600 g


  • Calibaration
  • Testing devices in loan
  • Measurement Service
  • Maintenance Contract
  • Training


DIN EN 59, ASTM D 2583


Test stand for Barcol Tester

Test stand for Barcol Tester

The Bareiss test stand is determined for  series of measurements and serves for Barcol Tester. The pick-up device allows a quick and easy  fixation of the hardness testers.

Reference plate Barcol

Reference plate Barcol

Standard block is used to ensure the metrological capability of the measuring device during the frequency of recalibration. The rubber blocks are embedded in a holder made of stainless steel.

Scope of delivery: single block, incl. DAkkS/DKD certificate

Range Of Application

Hardness determination on fiberglass rein-forced plastics, thermoset material, hard thermoplastic resin, aluminium etc. minimum material thickness 1,5 mm
