Description
This product is suitable for testing the setting time of various cements, admixtures and concrete mixtures with different concrete mix ratios under different temperature environments.

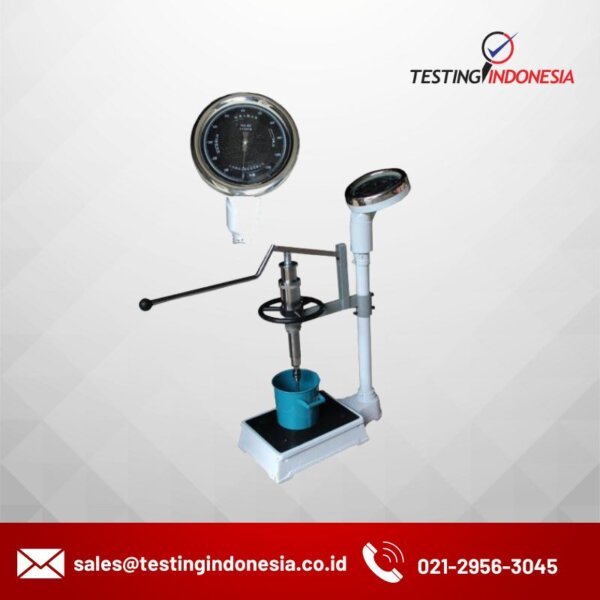

HG-80 Concrete Penetration Resistance Tester
Spesification
- Display mode: pointer
- Maximum measured value（N）: 1200
- Up the sample mold diameter (mm):Φ160
- Under the sample mold diameter (mm):Φ150
- Sample mold height（mm）: 150
- Penetration depth（mm）: 25
- Minimum division value (N): 1
- Indication error（N）: ±10
- Stylus loading area（mm2 ）: 100，50， 20
- Penetration resistance（MPa）: 0.2～3.5， 3.5～20， 20～28
- Dimensions（mm）: 700×350×1000
- Packing size（mm）: 730×360×1040
- Weight（kg）: 40
