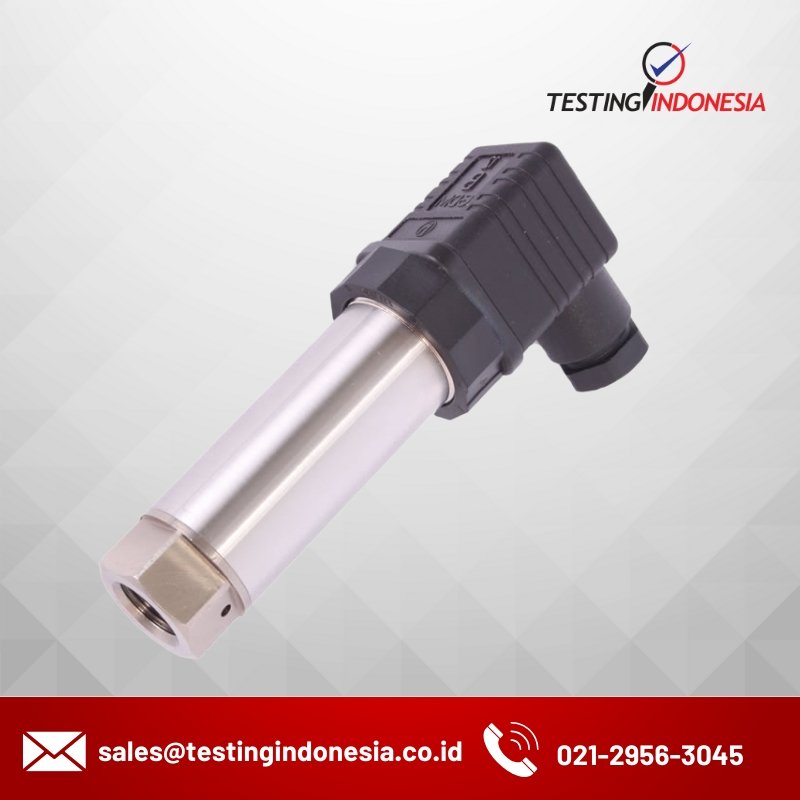

High Range Pressure Transmitter

Category: Tags: ,

Description

The P600FA high range pressure transmitter is designed for the measurement of pressure across a wide range of general purpose and industrial applications including hydraulics, medical, research and development and a range of steel manufacturing and preparation processes.

The P600FA high range pressure transmitter offers superb media compatibility as standard with its all-Titanium Alloy pressure port and sensing element.  The process connection is a high-pressure F-250-C Autoclave type.

The P600FA high range pressure transmitter offers a 2-wire 4-20mA electrical output as standard while 0-100mV, 0-5Vdc and 0-10Vdc are optional.

Specifications

  • Ranges: 0-1000bar up to 0-5000bar
  • Outputs: 4-20mA, 0-5Vdc, 0-10Vdc, 0-100mV
  • Environmental Protection: IP65
  • Accuracy: <±0.25%/FS
  • High Pressure F-250-C Autoclave Fitting
  • Field-Adjustable Span & Zero (±10%)

About

  • Save Time With In-Field Span and Zero Adjustments – No need to send in your pressure sensor for re-calibration for those minor changes.
  • Titanium Construction Offers Excellent Long-Term Performance
  • Superb Media Compatibility Thanks to its Titanium Alloy Pressure Port
  • ATEX Certified Explosive Atmosphere Versions Available
  • Protected from Low Pressure Water Jets to Suit Most Environments

Technical Specifications

Input Pressure Range
Nominal Pressure RangeBar (gauge)1000150020002500300040005000
Permissible Overpressurex nominalx 1.5x 1.5x 1.5x 1.5x 1.5x 1.25x 1.2
Burst PressureBar4000400040006000600060006000

Output signal & supply voltageNumber of WiresOutputSupply VoltageSupply Current
P610FA4 – wire10 mV/V5 to 15 Vdc (regulated)0.6mA/V
P605FA3 - wire0 – 5 Vdc13 to 30 Vdc (unregulated)13mA
P6010FA3 - wire0 – 10 Vdc13 to 30 Vdc (unregulated)13mA
P642FA2 - wire4 – 20 mA10 to 36 Vdc (unregulated)N/A

Performance
Accuracy (non-linearity, hysteresis, repeatability)% Full Scale Output<±0.25 (BFSL)
Zero Offset and Span Tolerance% / Span±0.5% (at room temperature)
Zero Offset and Span Adjustment% / Full Scale Output±5 adjustment with easy access trimming potentiometers on amplified versions only
Media Temperature˚C-50 to +125
Ambient Temperature˚C-40 to +85 (-20 to +70 ATEX Version)
Storage Temperature˚C+5 to +40
Thermal Zero Shift (TZS)% / FS / ˚C<±0.02
Thermal Span Shift (TSS)% / FS / ˚C<±0.02
Reverse Polarity ProtectionProtected against supply voltage reversal up to 50Vdc (amplified version only)
Media CompatibilityAny media compatible with BT9 Titanium Alloy
Weightgrams125 nominal
Insulation ResistanceMegohm @ 50 Vdc>100
Input Resistance and Output ResistanceΩ1500 ±30% (P610FA only)
Electrical ConnectionMating socket with screw terminal connections to DIN 43650
Pressure ConnectionF250-C Autoclave fitting. Thread Type 9/16-18UNF-2B (female)
Response Time (10% - 90%)ms≤1
Environmental ProtectionIP65
Load Driving Capability4 - 20mA versionSupply voltage - 10V / 0.02A (i.e. 36V - 10V / 0.02A = 1300Ω
0 - 5V / 0 - 10V versions>5kΩ / >10kΩ
Long Term Stability% / Full Scale< 0.2 / 6 months
Operational LifePressure Cycles> 108 typical
ATEX Approval (4-20mA versions only)Ex II 1 G Ex ia IIC T4 Ga (zone 0)
Ex II 1 D Ex ia IIIC T135°C Da (zone 20)
EX I M 1 Ex ia I Ma (group I M1)

Product Dimensions

*All dimensions are show in mm

Wiring Details

Pin No.2 Wire (4 - 20mA)3 Wire (0 - 5Vdc / 0 - 10Vdc)4 Wire (10mV/V)
1+ve supplycommon-ve supply
24 - 20mA signal+ve supply+ve supply
3not fitted+ve output+ve output
⏚to caseto case-ve output
