High Temperature Pressure Transducers (VW)

Category: Tags: ,

Description

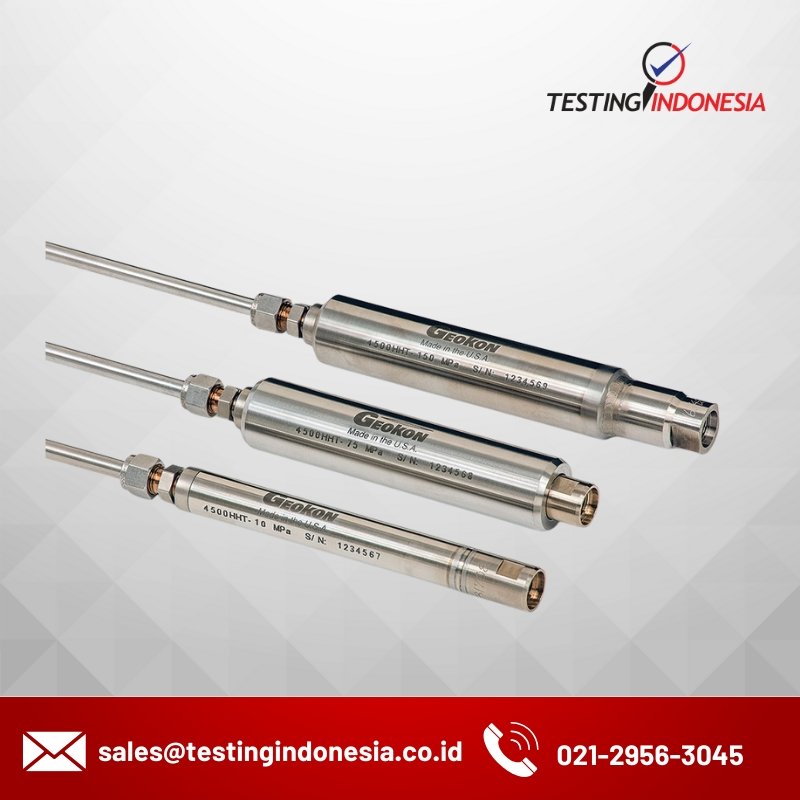

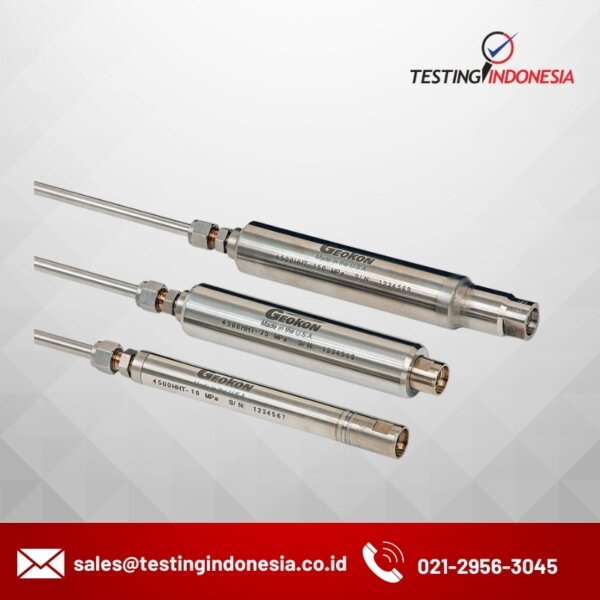

The GEOKON 4500HHT Series High Temperature Pressure Transducers are designed for monitoring downhole pressures and temperatures in oil recovery systems and geothermal applications, where the temperature may be as high as 250°C. These sensors are supplied with either mineral insulated cables, or with tubular encapsulated cables (TEC) inside stainless steel tubing.

Spesification

  • Standard Ranges: −100 to 350, 700 kPa; 1, 2, 3, 5, 7.5, 10, 20, 50, 75, 100, 150 MPa
  • Over Range: 1.5 × rated pressure
  • Resolution: 0.025% F.S. (minimum)
  • Accuracy: ±0.1% F.S.
  • Linearity: <0.5% F.S. (±0.1% F.S. optional)
  • Temperature Range: 0°C to +250°C
  • Length × Diameter¹: 191 × 19 mm (−100 to 700 kPa; 1, 2, 3, 5, 7.5, 10 MPa) 191 × 32 mm (20, 50, 75 MPa) 216 × 32 mm (100, 150 MPa)
