HMP SON

Name: Testingindonesia
Rating: 5

Categories: Alat Uji Daya Dukung Tanah, Soil Tags: alat daya dukung tanah, alat dcp otomatis, alat standard penetration test, Dynamic Cone Penetrometer, jual alat dcp otomatis, jual dynamic cone penetrometer

Description

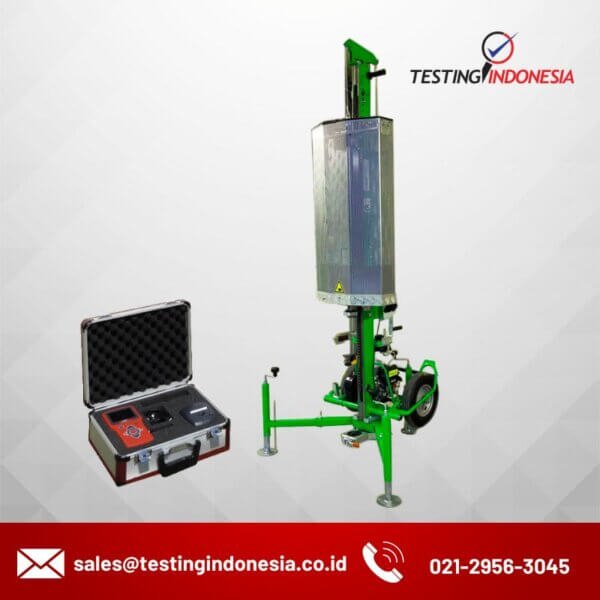

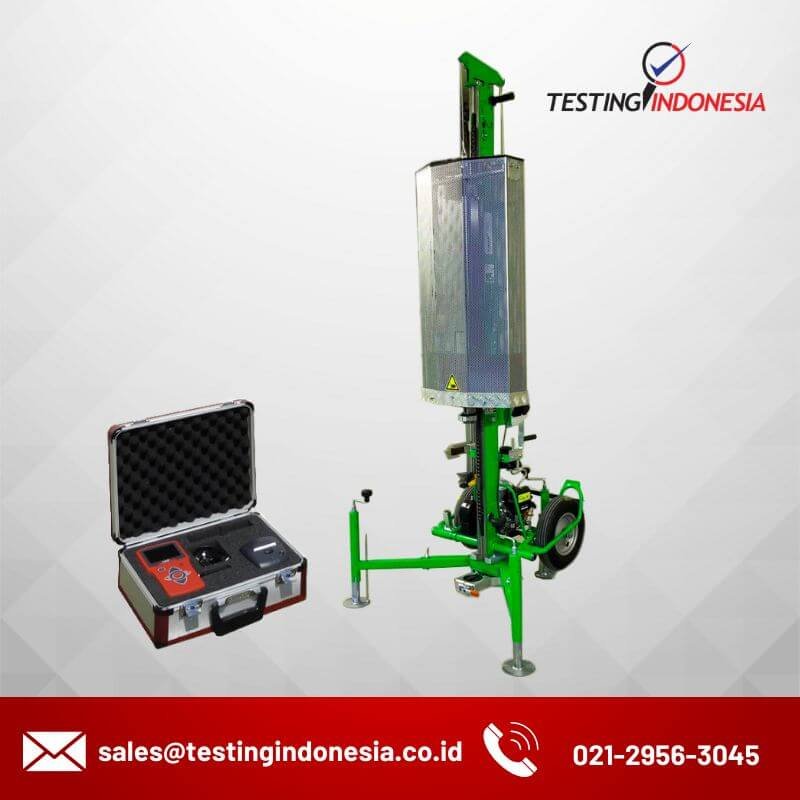

HMP SON Sebuah Tools Soil Investigation Untuk DCP (Dynamic Cone Penetration), SPT (Standard Penetration Test) & Pengambilan Sample Tanah (Soil Sampling) Dalam Satu Sistem

Soil investigation yang tadinya merupakan sesuatu yang terkesan pekerjaan kasar, membutuhkan banyak tenaga kerja, menghabiskan banyak waktu dan space yang besar sehingga sulit/mahal dalam pengangkutan (transportasi alat).

Tapi sekarang, sudah berubah menjadi lebih sederhana, bisa dilakukan oleh satu operator, space yang ringkas, serta *pengukuran yang cepat & otomatis menggunakan HMP-SON.

Kelebihan HMP SON untuk Soil Investigation:

✅Mencatat dan mengevaluasi nilai ukur tanpa kesalahan.
✅Menghemat waktu karena menggunakan sistem otomatis.
✅Hasil pengukuran bisa langsung print atau cetak di tempat.
✅Mencatat dan menyimpan jumlah pukulan per kedalaman penetrasi 10 cm
✅Mudah Dipasang dan Dioperasikan

Tools Soil Investigation HMP SON ini sesuai standar EN ISO 22 476-2.

Application

Dynamic probing acc. to DIN EN ISO 22476-2 is used for subsoil investigation and provides information about the bulk density of the existing soil layers. It supplies important hints on excavation resistance and possible settlements.

A distinction is made between heavy dynamic probing (DPH), medium dynamic probing (DPM) and light dynamic probing (DPL).

During dynamic probing, the probing rod, equipped with a tip and a defined cross-section, are driven into the soil by means of a standardized, constant impact THE DYNAMIC PROBING force. The penetration resistance provides a precise statement on the soil stability.

The weight (ram) is lifted again by means of compressed air in the case of pneumatic penetrometer and by means of a chain hoist in the case of me-chanical penetrometer.

The penetration resistance results from the number of impacts, which is re-quired to ram the probe to a defined penetration depth.

The number of impacts per 10 cm is inserted in proportion to depth in the probing graph. No samples are taken during this measurement.

The weight (ram) is lifted again by means of compressed air in the case of pneumatic penetrometer and by means of a chain hoist in the case of me-chanical penetrometer.

The penetration resistance results from the number of impacts, which is re-quired to ram the probe to a defined penetration depth.The number of impacts per 10 cm is inserted in proportion to depth in the probing graph. No samples are taken during this measurement.

Areas of application

Determination of layer boundaries during examination of subsoil for buildings, bridges, roads and other construction projects
Verification of compaction work and fills
Determining the bedding conditions of non- cohesive soils

Advantages

Enormous time savings due to automation

automatic logging of impacts and corresponding penetration depth
automatic evaluation
measurement result immediately available at the push of a button
documentation directly at the site
no more counting, no more tally lists

Reliable and precise

fault-resistant measurement
objectively more precise, since it is independent of examiner and fatigue-free
manufactured according to latest technical standards
precise, robust, durable

Automatic logging - and evaluation unit

low tare weight, ergonomic design
can be handled easily by one person
easily retrofittable
easy to assemble
intuitive menu navigation
GPS to localize the measuring point
automatic storage, evaluation and archiving
interface for printer and PC

HMP SON Pro M

Dynamic probing with the mechanical penetrometer

HMP SON-M for mechanical penetrometer The measuring instrument HMP SON-M records the stroke rate acoustically. Simultaneously to that the penetration depth is determined via an ultrasonic sensor. The allocation and storage of the number of strokes per 10 cm penetration depth is carried out automatically.
