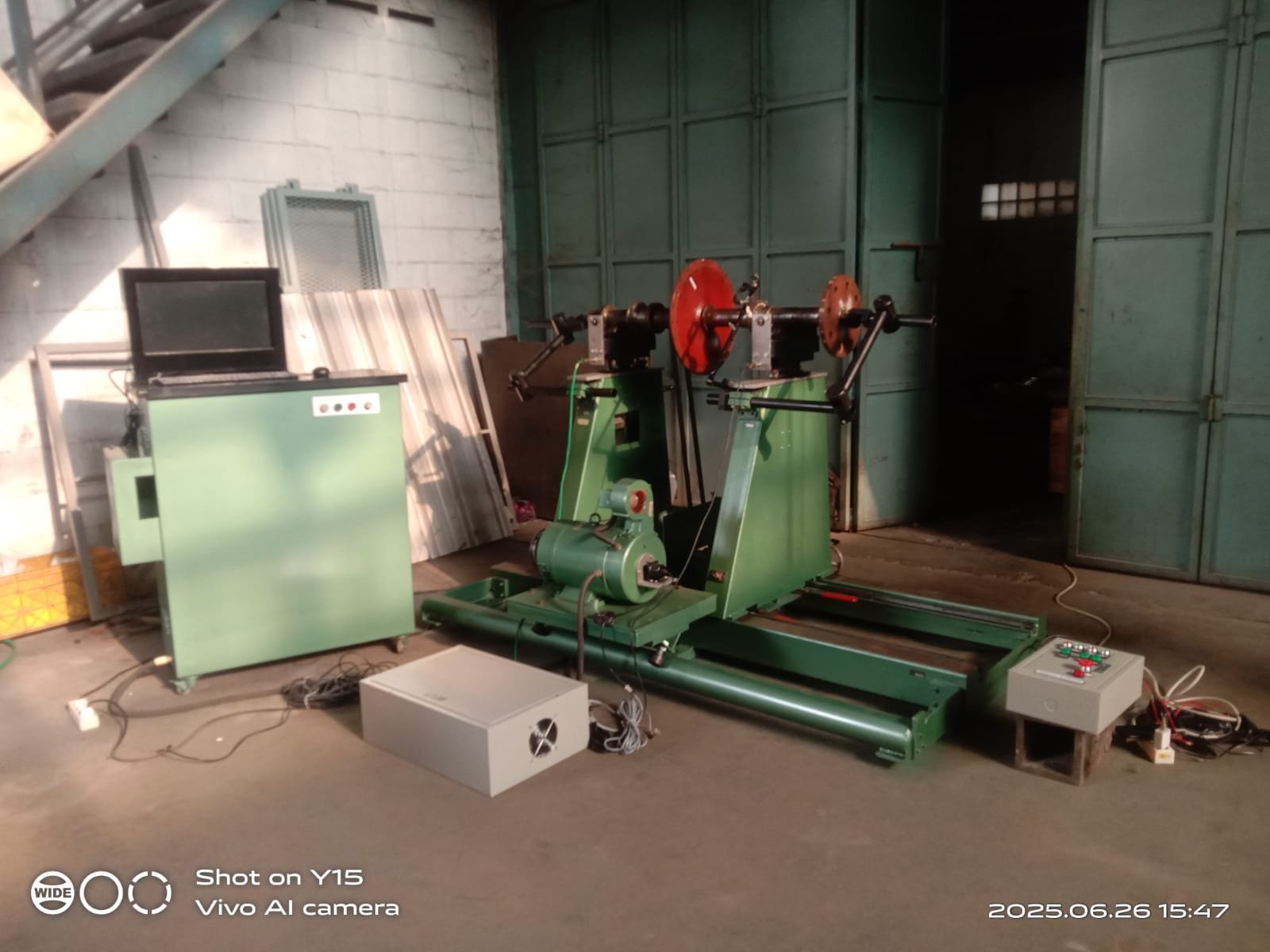

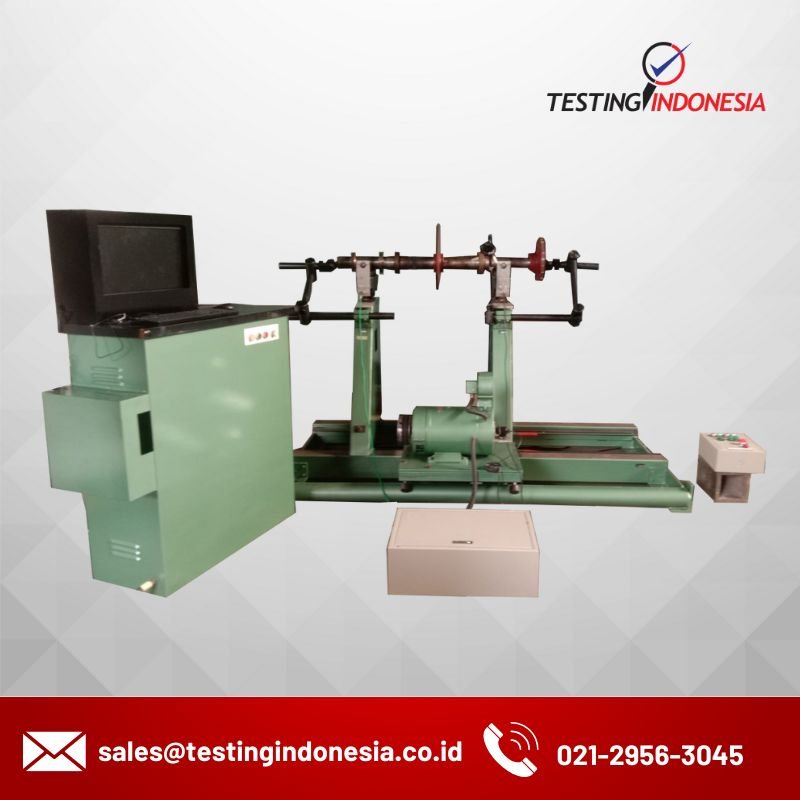

Mencari solusi balancing yang andal dan teruji untuk rotor berukuran sedang hingga besar? Kami menawarkan IRD Horizontal Axis, General Purpose, Soft Bearing Balancing Machine bekas dengan kapasitas 2300 KG. Mesin ini merupakan pilihan ideal untuk berbagai aplikasi industri yang membutuhkan presisi balancing tinggi.
- Rotor Safety Hold Downs
- V-Block Rotor Work Supports
- Negative Load Hold Down
- Large Diameter Rollers
- Narrow Width Roller Work Supports
- 236 Digital Balancing Instrument
- 246 Portable Balancing Instrument
- 290 Touch Screen Balancing Computer
- Larger Drive Motor
- External Transformer for other voltages
Spesification:
| No | Spesifikasi | Detail Spesifikasi |
| 1 | Weight Capacity | 2300 kg |
| 2 | Max Rotor Dia | 2.380 mm |
| 3 | Maximum sensitivity | 4 g mm |
| 4 | Standard Bed Length | 2170 mm |
| 5 | Journal Diameter Range | 19 – 330 mm |
| 6 | Journal-to-Journal Separation | 140 – 2030 mm |
| 7 | Drive Type | Underslung Belt Drive with manual belt tensioning |
| 8 | Drive Motor (std) | DC 3.7 kW (5 HP) variable speed motor with encoder |
| 9 | Balancing Speed Range | 250 to 6000 RPM |
| 10 | Number of Balance Planes | 1 or 2 |
| 11 | Encoder output port |
Used by IRD Balancing Instrument for determining rotor angular position Standard accessories: (6) flat drive belts, (2) roller work supports, Suspension motion locks, end thrust assemblies, motor control console. |
| 12 | General configuration without rotor | Diameter 4826 x 1830 x 1525 mm |
| 13 | Weight | 832 Kg |
| 14 | Power (std) | 230 VAC, 50 or 60 Hz |
| 15 | Operating Temperature | 0 to 40 Celcius Degree |
