Horizontal Inclinometer Probe

Description

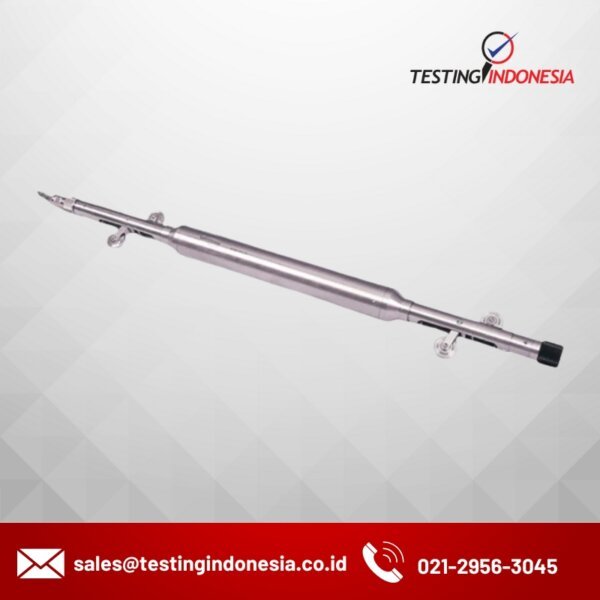

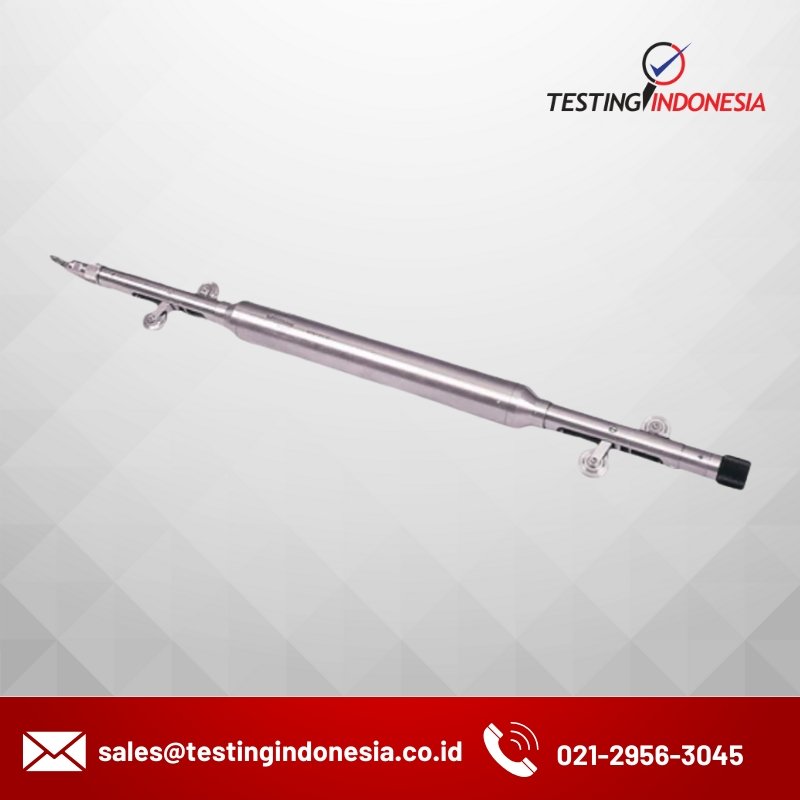

Horizontal Inclinometer Probe | Model 6015

The Model 6015 Horizontal Inclinometer Probe is a modification of the standard Model 6000 Inclinometer Probe, which allows it to be used in horizontal inclinometer casing. The probe, in effect, measures differential settlement along the length of the casing.



Spesification

  • Standard Range: ±53°
  • Resolution: ±0.025 mm/500 mm (±10 arc seconds)
  • Total System Accuracy¹: ±6 mm/30 m
  • Temperature Range: 0°C to +50°C
  • Length × Diameter: 671 × 45 mm
  • Casing Size I.D.: 59 to 79 mm
¹Within 3° of horizontal.
