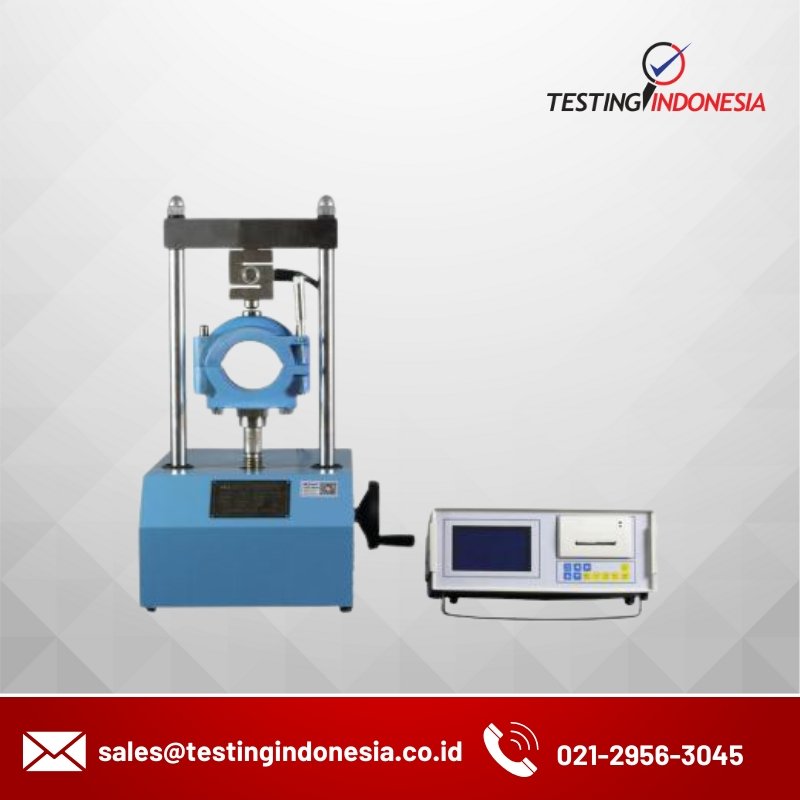

LD-5B Asphalt Mixture Stability Tester

LD-5B Asphalt Mixture Stability Tester

Category: Tags: , , , , , , , , , , , , , , ,

Description

The automatic asphalt mixture stability tester is used to measure the ultimate pressure value and vertical deformation of the asphalt mixture specimen when the pressure reaches the failure point. It is a commonly used testing equipment for asphalt mix ratio design and asphalt pavement construction quality inspection.

Features

This machine adopts ARM core processor, high-precision load sensor, high-precision displacement sensor, and high measurement and control precision.

Spesification

ModelLD-5B
Load range kN30±0.1
Displacement range mm10±0.1
Loading speed mm/min50±5
Loading methodautomatic/ manual
Relative Humidity %RH≤85
Working power supply AC220V±10%
Power W500
Dimensions mm550×350×700
Weight kg60
