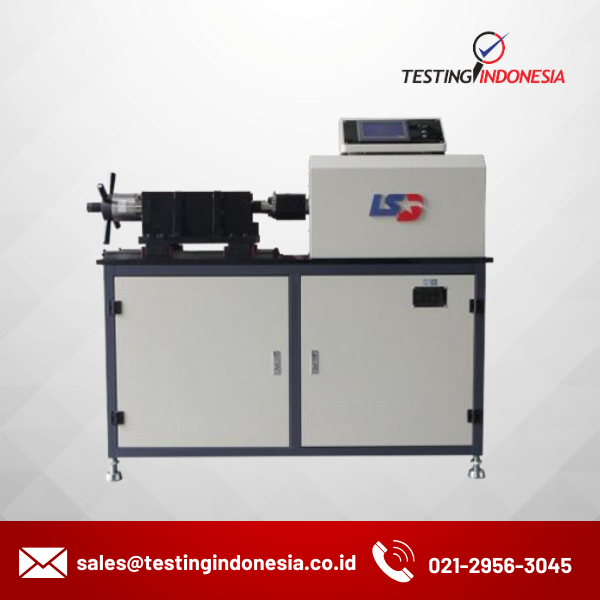

LD-JZ500D Fully Automatic High-strength Bolt Axial Force Torque Composite Detector

LD-JZ500D Fully Automatic High-strength Bolt Axial Force Torque Composite Detector

Category: Brand:

Description

It can detect, display and print the axial force and torque of 7/16 inch non standard bolts. It can be equipped with a special torsional shear wrench, and can also detect the axial force (pre tightening force) after the shear-type high-strength bolt connection pair 7/16 is twisted off (this wrench needs special order).

Features

  1. This product has the function of parameter backup and recovery, automatic calibration function, and the monitoring of peak value is also set according to the detection requirements of high-strength bolts.
  2. In order to meet the needs of users, the instrument is equipped with a network interface connected to the computer, which can transmit data to the computer and upload the data, and print out the report after further processing.

Specification

Parameter Specification
Axial Force Measurement Range 30~500 Kn
Torque Measurement Range 50~2000 Nm
Resolution ±0.1 Kn
Indication Error ±1% Kn
Display Mode Liquid crystal display
Overall Dimensions 1470×550×1400 mm
Machine Weight 1600 kg
