Description
This machine is mainly used for roll forming of asphalt mixture tests in rutting tests. It is also suitable for using the rolling method to make samples of other physical and mechanical properties of asphalt mixtures.

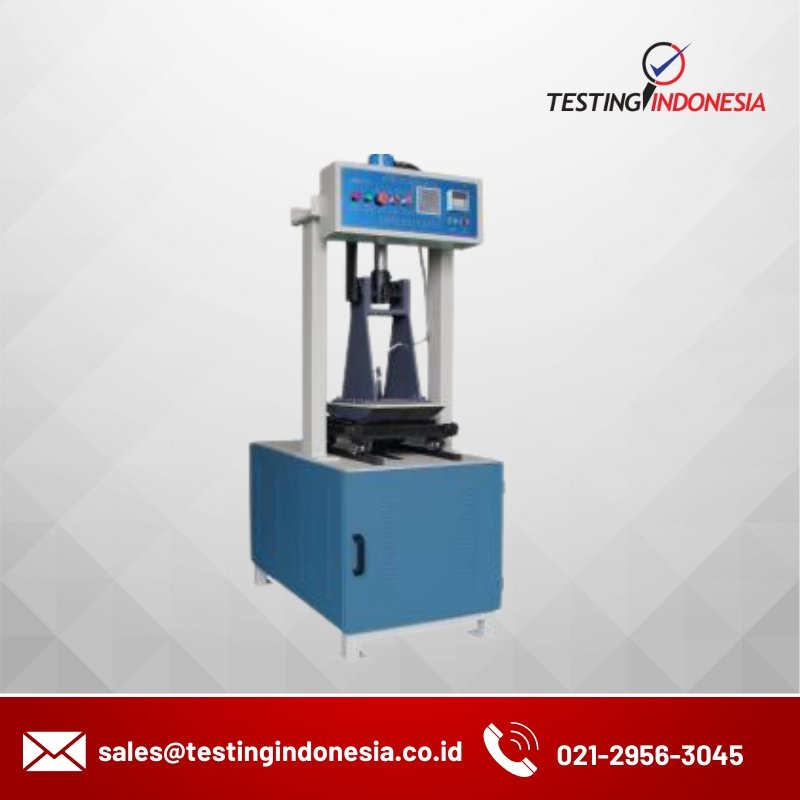

LDCX-1 Hydraulic Rut Sample Forming Machine
Features
This machine integrates machinery, electricity and hydraulic pressure. Compared with similar products, it has the characteristics of small size, high degree of automation, strong function and convenient operation. Rolling temperature can be set arbitrarily After the test mold is installed on the trolley, it can be centered automatically. The rolling times of the trolley can be set arbitrarily, and the rolling times can be recorded at any time.Spesification
Technical Parameters:| Mould size mm | 300×300×(30-100) |
| Trial car travel mm | 300 |
| The height change value of the test mold mm | 30~ 100 |
| The pressure of the grinding wheel can be adjusted arbitrarily within 0 ~ 20 KN | |
| The radius of the roller is 500mm and the width is 300mm | |
| Roller preheating | 20-200°C, can be set arbitrarily. (Usually set to 100°C) |
| The pressure of the rolling wheel line is 300N/cm . (The width of the rolling wheel is 30cm, so the positive pressure should be 9kN) | |
| Dimensions mm | 620×1100×1900 |
| Voltage | 380V±10% |
