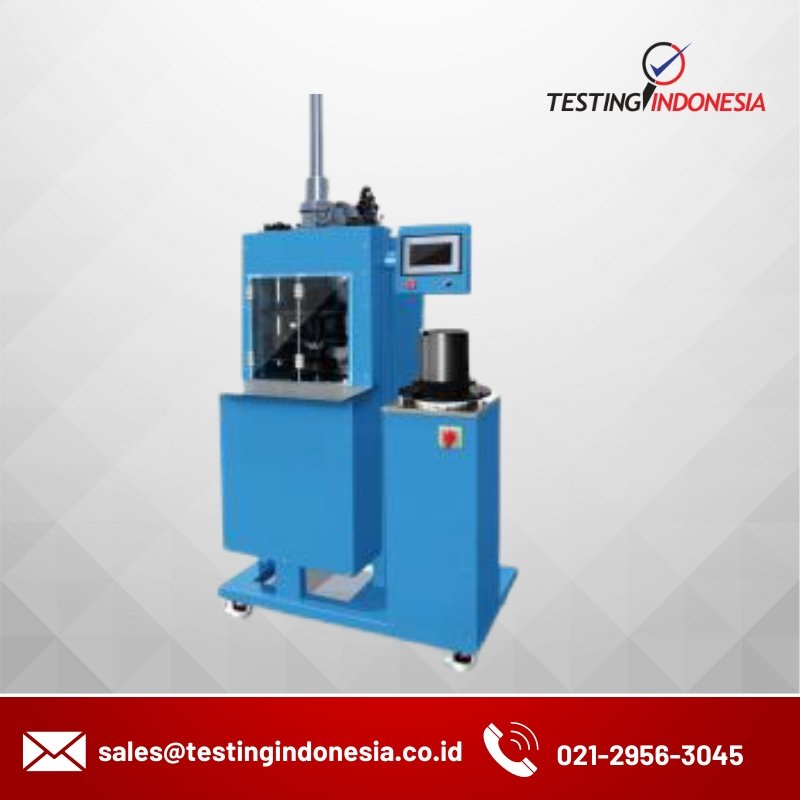

LDSY-3 Asphalt Mixture Rotary Compactor

Description

The asphalt mixture gyratory compactor is a kind of simulating the volume and properties of the actual pavement material, under the conditions of constant pressure, fixed compaction angle and fixed compaction speed, the hot- mix asphalt mixture cylinder test is carried out by kneading method,compaction molding equipment for piece production.

Features

This machine adopts imported accessories, under the given compaction pressure and rotation compaction angle, it can operate safely and reliably, and the experimental data is accurate and reliable.

Spesification

Technical Parameters
Mould sizediameter 100mm, 150mm,Height: 250mm
Forming height50-150mm
Compaction pressure100~ 1000kPa (adjustable)
Number of rotations1~999 times (adjustable)
Rotation rate30 rpm/min
Rotation angle0.5°~2.0° (adjustable)
Power2150W
Power supply380V
Size900×900×1900mm
Weight450kg
