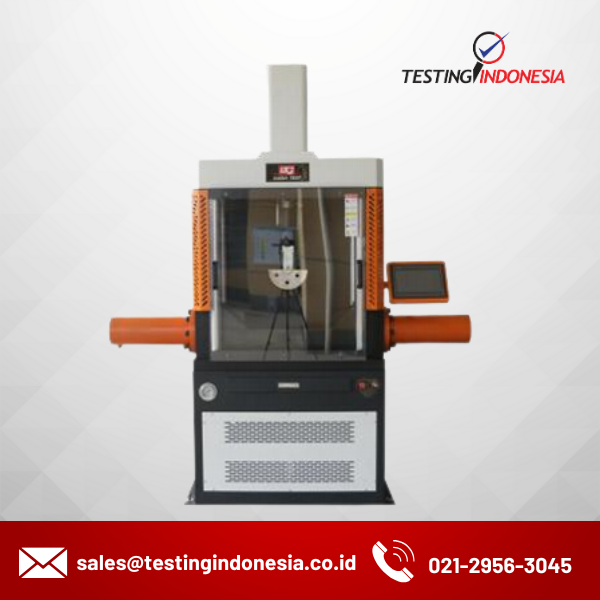

LDWQ-40D Vertical Steel Bar Positive and Negative Bending Testing Machine

Features

1. Vertical closed integrated fuselage design, silent oil pump hydraulic system.
2. 3-cylinder design, the roller span is driven by 2 lateral cylinders with displacement measurement.
3. With a fully transparent protective cover that can be observed in all directions, the front plexiglass protective sliding door slides silently.
4. Imported PLC control, equipped with 10.1-inch configuration touch screen, with animation display, real-time display of angle, automatic control of bending process and other functions. Friendly operation interface, the test steps have been decomposed into the whole screen interface, follow the prompts to operate step by step, easy to learn.
5. Support bending test (0-180 degrees), reverse bending test (forward bending 90 degrees, reverse bending 20 degrees), reverse bending needs to use additional bending support (optional).
6. With dross, steel oxide skin collection drawer.
7. One-click test. After the user selects the steel bar type parameters and diameter, the bending machine automatically adjusts the span and gives the number of the bending core. After the press test, the bending machine automatically completes the press bending and lateral pressurization. After the end, the vertical oil cylinder and the lateral oil cylinder return automatically.
