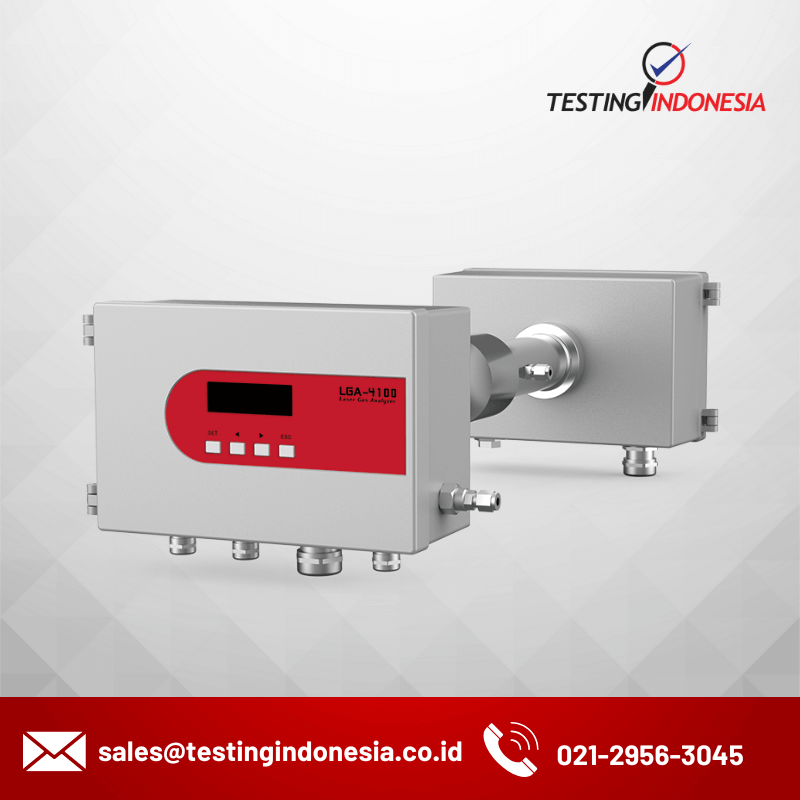

LGA-4100 In-situ Tunable Diode Laser (TDL) Gas Analyzer

LGA-4100 adalah gas analyzer berbasis teknologi Tunable Diode Laser (TDL) yang mampu melakukan pengukuran in-situ gas berbahaya (seperti HF, NH₃, HCl, H₂S) dengan akurasi tinggi, respon cepat (< 1 detik), dan pemeliharaan minimal — ideal untuk aplikasi industri di kondisi ekstrem.

Description

LGA-4100 In-situ Tunable Diode Laser (TDL) Gas Analyzer merupakan penganalisis gas terdepan yang didukung oleh teknologi Tunable Diode Laser Absorption Spectroscopy (TDLAS) yang telah dipatenkan. Sistem ini secara khusus dikembangkan untuk memenuhi kebutuhan pengukuran gas in-situ di lingkungan industri yang paling menantang.

Dengan memanfaatkan prinsip penyerapan energi laser secara selektif oleh gas, LGA-4100 mampu memberikan hasil pengukuran konsentrasi gas berbahaya dan beracun dengan akurasi sangat tinggi, keandalan yang kuat, dan waktu respons yang kurang dari satu detik. Keunggulan utama dari teknologi TDL adalah kemampuannya untuk beroperasi tanpa sistem pengambilan sampel gas, yang secara drastis mengurangi biaya dan kebutuhan pemeliharaan.

Product Features

  • In-situ, no gas sampling.
  • No cross interference.
  • A fast response less than one second.
  • Diverse optical length (0.5~20m).
  • Reliable in all harsh conditions: high temperature & pressure, dust density, moisture, and corrosion.
  • Online calibration, no zero drift.
  • Thousands of tailor-made solutions for various applications.
  • International ATEX certified.

Application Area

  • HCl, HF in waste incineration.
  • NH3 and HF monitoring in fertilizer plant.
  • HCl in pharma industry.
  • NH3 slip in thermal power plant SCR, SNCR.

Spesication

Spesifikasi Keterangan
Components O₂, CO, CO₂, H₂O, H₂S, HF, HCl, HCN, NH₃, CH₄, C₂H₂, C₂H₄, CH₃I
Accuracy HF: 0.02ppm; HCl, NH₃, C₂H₂: 0.1ppm; H₂O, HCN: 0.3ppm; CH₄: 0.4ppm; C₂H₄, CH₃I: 0.6ppm; CO, CO₂: 10ppm; H₂S: 20ppm; O₂: 100ppm, at room temperature and pressure with reference to a one-meter optical range.
Range HF: (0~5)ppm; C₂H₂, NH₃: (0~10)ppm; HCN: (0~30)ppm; CH₄: (0~40)ppm; HCl, H₂O: (0~50)ppm; C₂H₄, CH₃I: (0~60)ppm; CO, CO₂: (0~1000)ppm; H₂S: (0~2000)ppm; O₂: (0~1)%Vol., customized.
Linearity ≤±1%F.S.
Span Drift ≤±1%F.S./6 months
Response Time ≤1s
Preheating Time ≤15min
Working Temperature -30~60℃
Storage Temperature -40~80℃
Purge Gas Instrument air, industrial N₂: (0.3~0.8)Mpa
Enclosing Rate IP65
Explosion-Proof Ex d IIC T5
Power Supply 24V DC, 220V AC is optional
Consumption ≤20W
Analog Outputs 2 way 4~20mA
Relay Outputs 3 way 24V DC/1A
