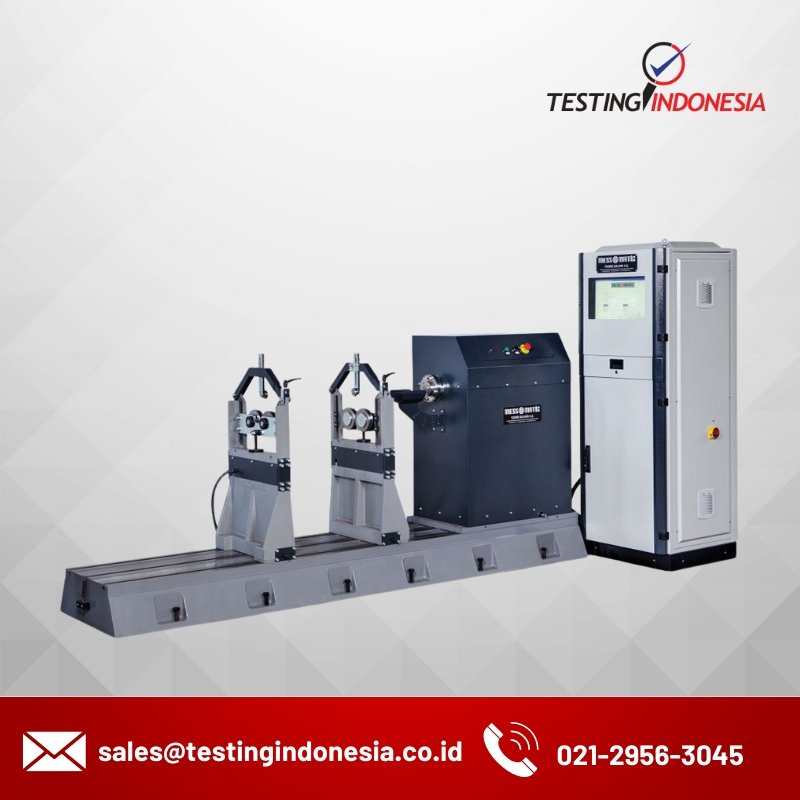

Mess-Matic SYM-6000



SYM 6000 series horizontal balancing machines are innovatively designed for balancing operations of various rotors between 50 – 30.000 kg, with cardan or belt drive system. By help of 2 universal rigid type pedestals having vibration sensors, bearings, and protection cover, cylindrical rotors having their own shaft journals and disc shaped rotors on balancing arbors can be balanced with high balancing accuracy.

These machines are used for balancing in horizontal axis of heavy industry rotors such as cylinders, shafts, impellers, fans, turbines, electric motors, generators and rotors in marine industry. Optionally, all over the balancing machine can be surrounded by switch controlled protection cage according to CE regulations. With the user-friendly software, the operation is very easy.


  • Manual loading & unloading
  • Automatic unbalance measurement with high accuracy

Optional Accessories

  • Switch controlled protection cage according to CE regulations
  • Additional bench

Technical Specifications

Technical Specifications
SYM 6300
SYM 6500
SYM 10000
SYM 30000
Maximum Rotor WeightKg300050001000030000
Minimum Rotor WeightKg50100100100
Maximum Rotor Diametermm1550200020002480
Bearing DiametermmØ30-Ø155Ø30-Ø200Ø50-Ø250Ø75-Ø230
Balancing Speed (*)rpm1-20001-20001-20001-2000
Optional Additional Benchmm1000+1000
Compressed Airbar6
(*) Balancing speed may vary depending on rotor tube diameter and weight.
