Miniature In-Line Load Cell

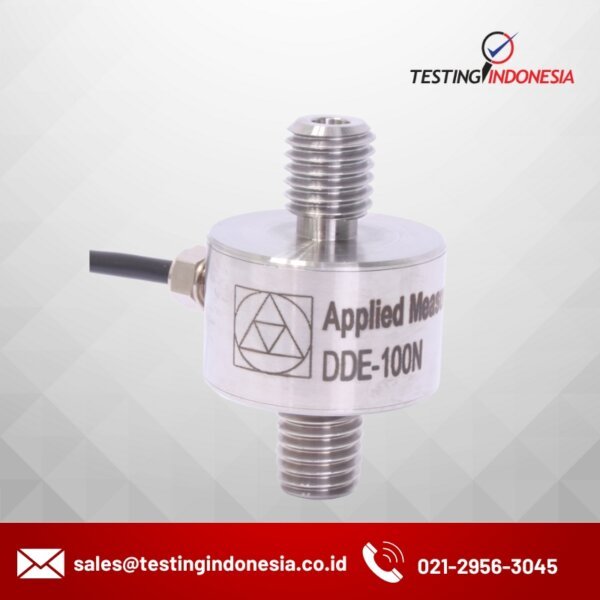

Applied Measurements DDE miniature in-line load cell is suitable for use in both tension and compression and offers a very low profile body coupled with integral mounting threads to allow use in applications with restricted mounting space where other in-line load cell designs such as S-Beam load cells are too large.

The DDE’s small size means that weight is kept to a minimum, this, in conjunction with its low deflection, results in a high stiffness assembly and makes the load cell suited to the measurement of fast changes in load and high-frequency transients.

The DDE miniature in-line load cell is currently being used in many applications including automotive production, cable tension monitoring and suspension force monitoring.  Customised versions with different thread sizes, specific dimensions and interim capacity can also be provided if required.

Product Dimensions (mm)

DDE Miniature In-Line Load Cell Outline Drawing
Deflection mmResonant Frequency kHz

Wiring Details

Red+ve excitation
Blue-ve excitation
Green+ve signal (compression)
Yellow-ve signal
ScreenTo ground – not connected to load cell body


  • Capacities: 0-100N up to 0-50kN
  • Output: 2mV/V
  • Environmental Protection: IP65
  • Accuracy: <±0.30%/RC
  • Low Profile Design


Rated Capacity (RC)N0-100, 0-250, 0-500, 0-1000, 0-2500, 0-5000, 0-10000, 0-20000, 0-50000
Operating ModesTension/Compression / Tension & Compression
Sensitivity (RO)mV/V2.0 nominal (1.2 approx on 100N)
Zero Balance/Offset±%/Rated Output<1.0
Output Symmetry (tension vs. compression±%/Rated Output<1
Non-Linearity±%/Rated Output<0.3
Hysteresis±%/Rated Output<0.3
Repeatability±%/Rated Output<0.2
Temperature Effect on Zero±%/Rated Output/ ˚C<0.005
Temperature Effect on Sensitivity±%/Applied Load/ ˚C<0.005
Input ResistanceOhms750 nominal
Output ResistanceOhms700 nominal
Insulation ResistanceMegohms>5000 @ 50Vdc
Excitation VoltageVolts AC or DC10 recommended (2-15 acceptable)
Operating Temperature Range˚C-20 to +80
Compensated Temperature Range˚C0 to +70
Storage Temperature Range˚C-20 to +80
Safe Overload% of Rated Capacity150
Ultimate Overload% of Rated Capacity200
Maximum Allowable Sideload% of Rated Capacity<5
Deflection @ Rated CapacitymmSee dimensions table
Fundamental Resonant Frequency*kHzSee dimensions table
IP Rating (Environmental Protection)IP65
Weight (excluding cable)grams150 nominal
Fatigue Life108 cycles typical (109 cycles on fatigue-rated version)
Cable Length (as standard)metres2
Cable Type4-core + screen, PVC sheath, Ø3.5 typical
ConstructionStainless Steel
Resolution:1 part in 250,000 (with appropriate instrumentation)
*The resonant frequency is calculated with the body of the load cell attached to a large plate, ensuring that only the sensing element oscillates: This is vital to achieve the highest natural frequency and subsequent frequency response.
