Multiple-Bond-Strength-Pull-off-Tester-MHP-400

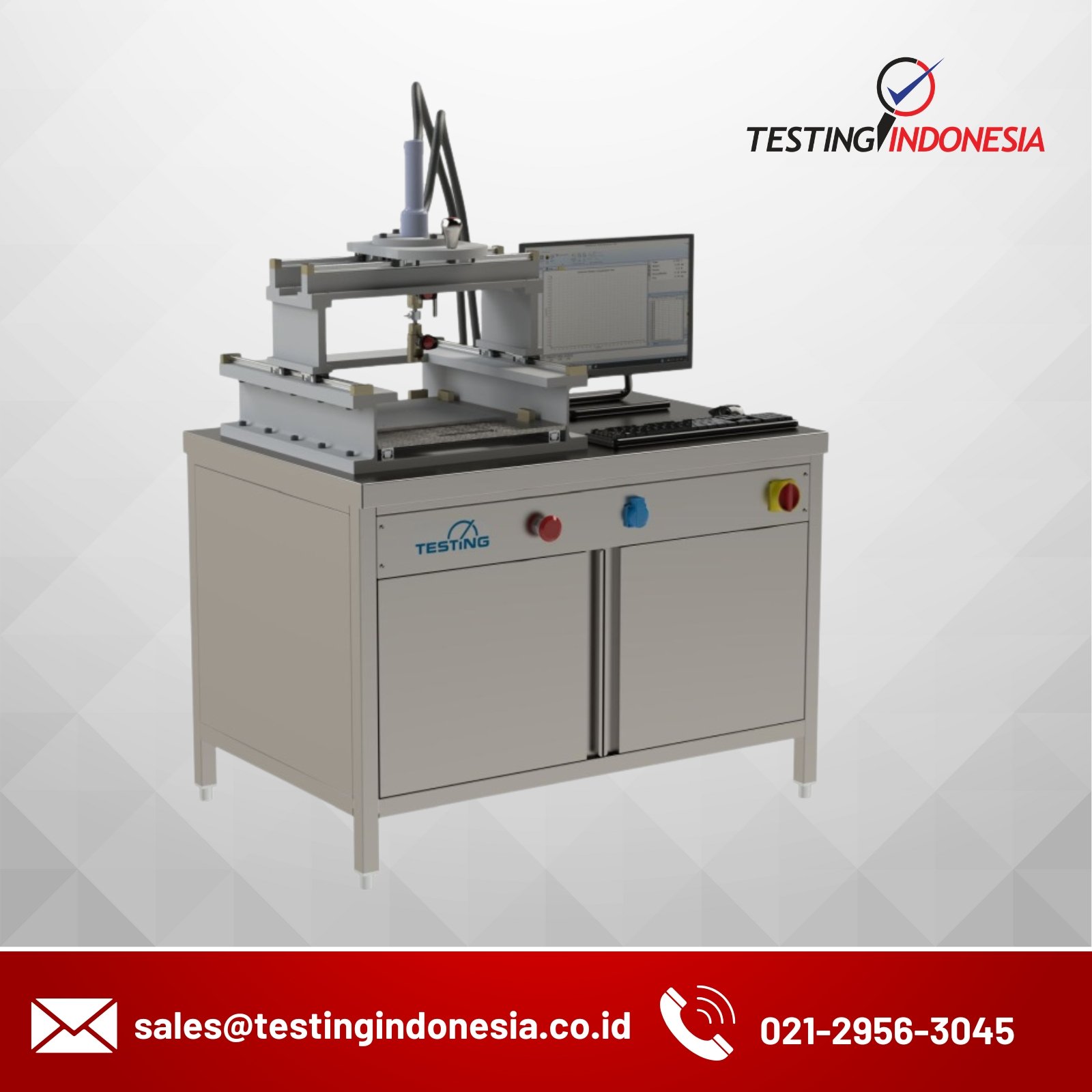

Multiple Bond Strength Pull-Off Tester MHP 400

Category: Tags: , ,

Description

For testing bond strength of adhesives, mortar, coatings, paints, etc. Optimized for plates 400 x 400 mm to glue on samples, for example 50 x 50 mm or 100 x 100 mm (test stamps must be ordered separately).

Norms: EN 12004-2, EN 12002, EN 1324, DIN 1048-2, DIN 13279-2, EN 13892-8, ISO 4624 (and many more).

Technical Data

  • Force display range: 0 - 20 kN
  • Force measuring range: 0,4 - 20 kN, class 1
  • Stroke: 100 mm
  • Various tensile stamps available
    (optionally adaptable force ranges 0,1 - 5 kN or 0,2 - 10 kN)

Control Unit

Control cabinet SV-i20 with main switch inclusive undervoltage release and emergency stop switch, as well as a Schuko socket on the front panel. Connection plug CEE plug 16 A (3~ 400 V, 50 Hz)

Dimensions

  • (W x D x H) = approx. 1200 x 800 x 1600 mm
  • Weight: approx. 650 kg
  • 3 ~ 400 V / 50 Hz / 1.1 kW
