NEXUS 8100XLM

Name: Testingindonesia
Rating: 5

Category: Universal Hardness Tester Tags: hardness tester, Jual Hardness Tester, universal hardness tester

Description

Robust, Sturdy & Rigid

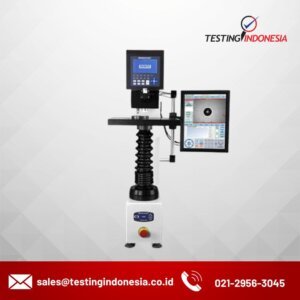

The NEXUS 8100 and NEXUS 8100XLM are dual Z-axis Universal hardness Testers. Not only can the spindle be located at any position in height, the test head with 50mm stroke will then conduct all testing, to reduce that spindle movement to a minimum.

It can be seen as the best of two worlds, having workpiece accommodation freedom and conducting testing at visual height. The range contains high-quality mechanical components and is equipped with an 18 Megapixels integrated camera with calibrated zoom function guaranteeing fast and accurate user-independent measurements.

The sturdy design allows rough workshop conditions. Aircraft engine parts, automobile parts, production line integration, general quality assurance and laboratory use are all fields covered by the NEXUS 8100 series.

Highlights

Scales: Rockwell, Superficial Rockwell, Brinell, Vickers, Knoop, HVT & HBT, Plastic ISO 2039/1, Carbon Test Forces: 200gf – 3000kgf Camera: 18 Megapixels, Full HD camera system, with zoom and auto-focus Overview Camera: Full HD optical zoom stage overview camera Objectives: 0.7X, 2.5X, 5X, 10X, 20X, 40X, 60X, 100X. 8 Position Turret: 3 indenters, 3 objectives, Class 2 laser for positioning and optional integrated overview camera Load App. System: Fully automatic, Load cell, closed loop, force feedback Control: Fully integrated Windows Controller, SSD hard disk, Windows 10 operated IMPRESSIONS™ advanced workflow software, includes automatic measurement, keyboard & mouse

Display: 15” full color touch screen Advanced Output: Multi USB, CSV files, single readings, reports, printer, Q-DAS certified Software: No. of tests, Mean, St. Deviation, Min., Max., Range, CP, CPk, individual readings list, storage memory, Dwell time, test force setting, scale selection, calibration etc Illumination: Power LED Spindle: Manual or motorized, ball bearing slide, with fast up down and digital scroll wheel for fine adjustment XY-Stage: Manual, motorized stages or/and anvils or work tables at choice Workpiece Acc.: 550mm (H) X 285mm (D)
