Description
Pen Type Hardness Tester TIME®5100/5102/5104 is economically priced and suitable for quick hardness testing on metal materials, especially on-site hard testing of large, non-transportable components.

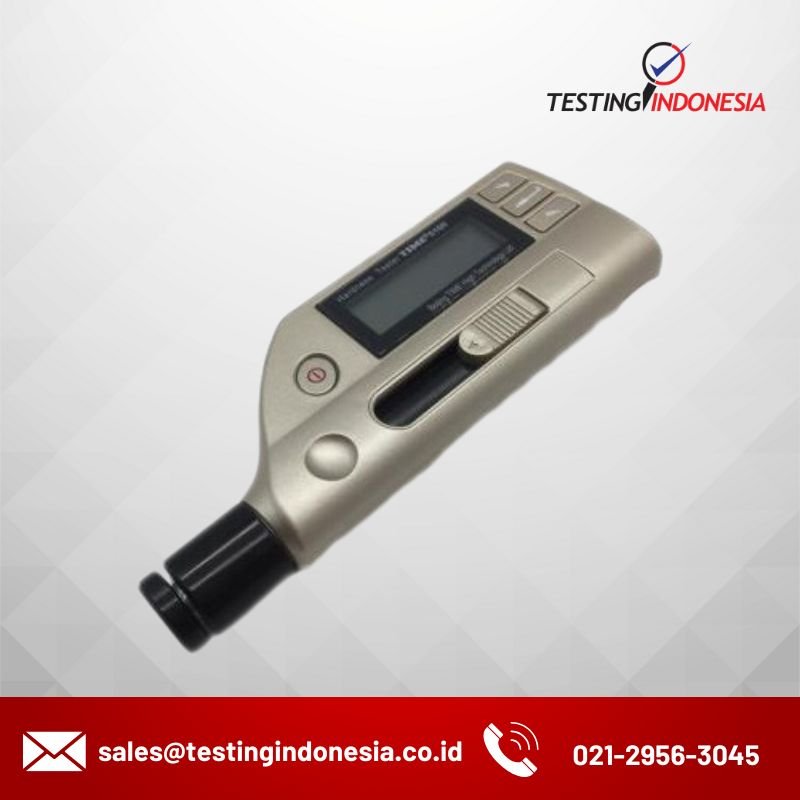

Pen Type Leeb Hardness Tester TIME®5100/5102/5104
Pen Type Hardness Tester TIME®5100/5102/5104 is economically priced and suitable for quick hardness testing on metal materials,
Spesification
| Model | TIME ® 5100 | TIME ® 5102 | TIME ® 5104 |
| Impact device | D integrated | C integrated | DL integrated |
| Hardness scales | HLD, HB, HRC, HRB,HV, HS | HLC, HB, HRC, HRB, HV, HS | HLDL, HB, HRC, HRB,HV, HS |
| Accuracy | ±6HLD(760 ±30HLD) | ±12HLC | ±12HLD |
| Memory | 270 average readings in 9 group files | ||
| Output | RS232 to printer | ||
| Min. surface roughness of work piece | 1.6μm ( Ra) | 0.4μm ( Ra) | 1.6μm ( Ra) |
| Max. work piece hardness | 960HLD | 960HLC | 950HLDL |
| Min. radius of work piece (convex/concave) | Rmin = 50mm (with support ring Rmin=10mm) | Rmin=11mm (with support ring ) | Rmin = 10mm (with support ring Rmin=10mm) |
| Min. work piece weight | 2~5kg on stable support 0.05~2kg with compact coupling | 0.5~1.5kg on stable support 0.02~0.5kg with compact coupling | 2~5kg on stable support 0.05~2kg with compact coupling |
| Min. work piece thickness coupled | 5mm | 1mm | 5mm |
| Min. thickness of hardened layers | 0.8mm | 0.2mm | 0.8mm |
| Indentation depth | Impact devices data | ||
| Continuous working time | 8h (without backlight) | ||
| Power | AAA 1.5V batteries | ||
| Operating temperature | 0~40℃ | ||
| Dimensions (mm) | 155×55×25 | 160×60×25 | 215×60×25 |
| Weight (g) | 180 | ||
