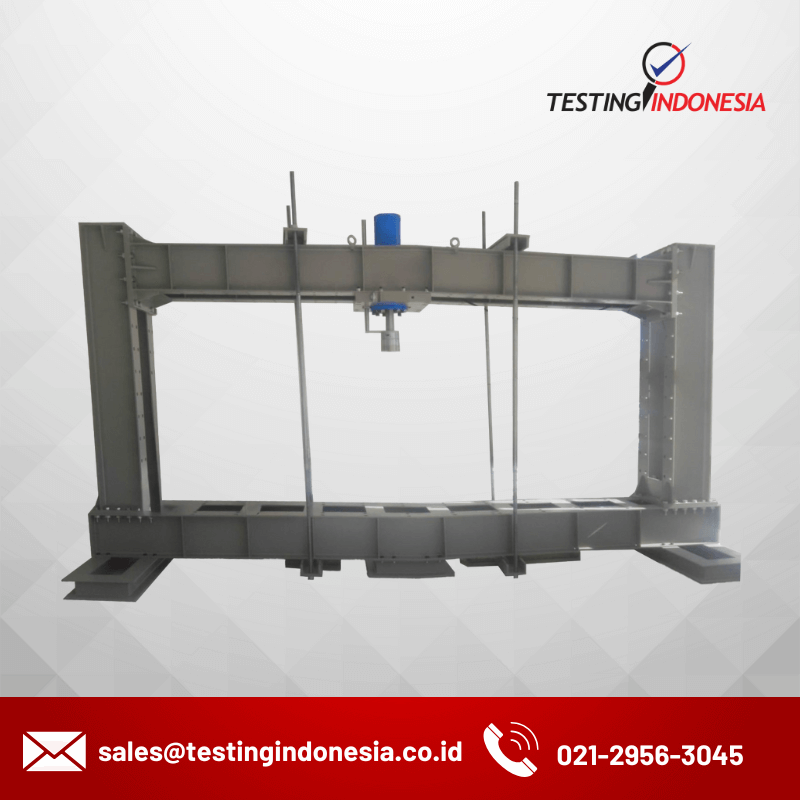

PLMT-600LXS Series Servo Hydraulic Universal Loading Frame System 600kN

Description

Our Advance PLMT-600LXS series Servo Hydraulic Universal Loading Frame System, designed for special structure testing applications and special compression and bending testing purpose in universities and R&D departments, the LXS Models feature a long test stroke (500mm (+/ 250mm) standard *contact us for other stroke requirements). Understanding the critical importance of operator safety, these actuators incorporate high quality materials, components, and craftsmanship, and are ideal for testing applications

Features and Benefits

  • Adjustable vertical test space (up to 200cm) for different applications
  • Large horizontal test space (400cm) which allows variety of a test applications on lager samples
  • Long test stroke accommodates a variety of test fixtures and applications, 500mm
  • Powerful, yet user-friendly materials testing software provides repeatable and reproducible results for simple to sophisticated testing requirements
  • Constant pressure hydraulic power supply provides continues pressure, reducing heat generation, increasing oil life, fan type oil cooling system
  • External hydraulic power supply provides convenient table top working surface

Testing Applications

Metals, Pipe & Tube, Rebar, Structural, Concrete samples, Large beams, Wood and many more

Standards

Our LXS Models conform to many international standards, including (but not limited to) Note: Extra accessories may require as optional.

Load measurement

Load measurement and control with high precision advanced load cell with class 0.5 accuracy between 0.1kN – 50kN/sec. Load measurement resolution is 20,000,000 steps

Displacement measurement

Displacement measurement and control with position sensor of 0.001mm resolution. User can select any speed between 0.001mm to 150mm/min.

Measuring and control electronics

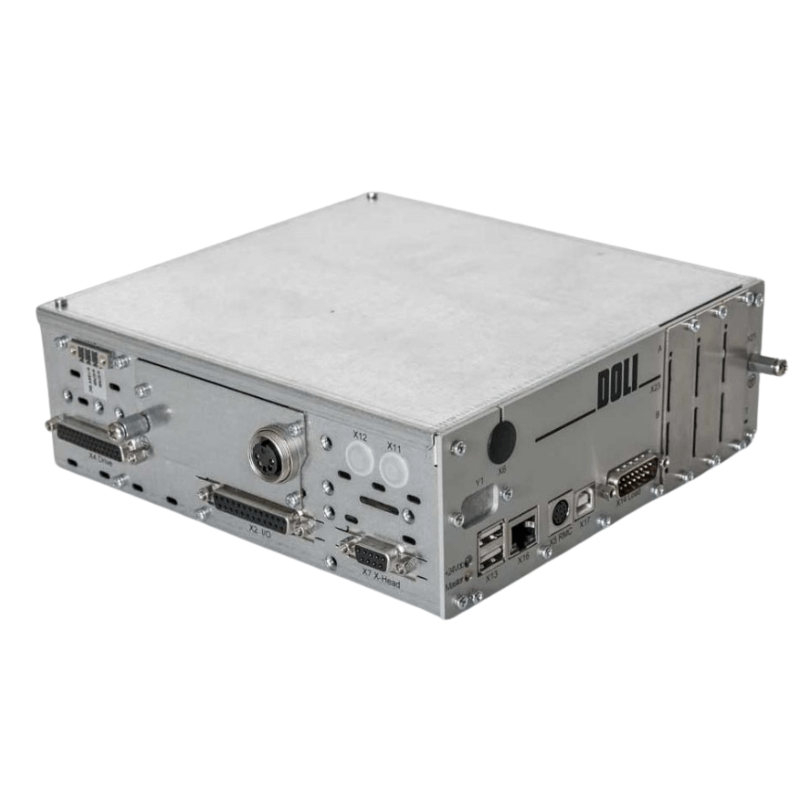

As universal digital measuring and control electronics for testing machines, a Doli EDCi20 controller is used. It is installed in the control cabinet and can be operated with a remote control. The control electronics enables a fully automatic test execution with given load speeds for force, position and strain controlled tests. With sensitive and adjustable break detection, the failure of the sample is detected early. Communication to the PC: Ethernet socket / USB 2.0

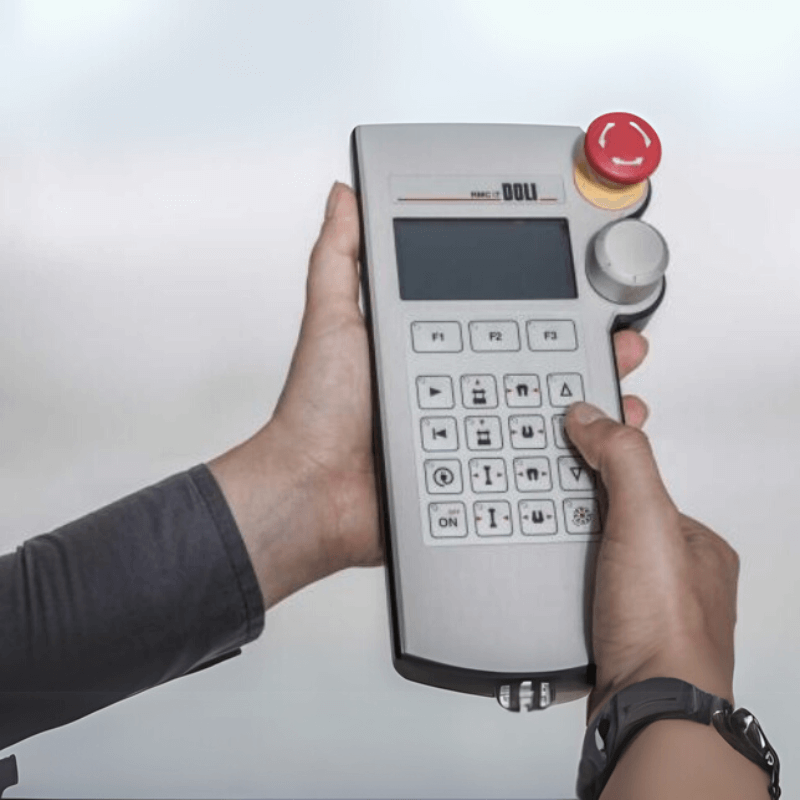

  • Remote Machine Control RMCi for controlling the testing machine via function keys and DigiPoti
  • OLED monochrome display with 128p x 64p and status LEDs
  • Magnetic foil for flexible attachment to the testing machine


Technical data EDCi20

  • Expansion option: 3 iSI modules (2 onboard)
  • Data acquisition and control speed: 2.5kHz
  • Automatic sensor recognition through intelligent sensor plug SGS
  • Universal digital IO interface, connection for 8 digital inputs and 8 digital outputs, 24V DC
  • Machine control, control output analog ± 10 V or various digital interfaces
  • Connection for display / operating unit Remote Machine Control RMCi with emergency stop option 2 | Material Testing Equipment
  • Connection for incremental digital sensors, e.g. for position measurement
  • iSYNC interface for multi-axis applications. Connection of several EDCi. PLMT-600LXS Series Loading Frame
  • Analog input amplifier (e.g. for load cell) with DC supply with a resolution of 20,000,000 steps
  • ‘+/- 10V control output
  • Ethernet RJ45, communication with PC. 10/100Mbit
  • USB 2.0, communication with PC
  • Serial interface for external electronics (optional)

Hydraulic unit

The powerful hydraulic unit with 100 L oil tank including all necessary safety and control valves. It generates a maximum system pressure of 250 bar. A fine 5 µm pressure filter in the pressure line is filtering the hydraulic oil and protecting the system components. Incl. filter pollution, oil level and temperature switch (60°C). The hydraulic unit is inside of the control cabinet and is thereby particularly low noise. A high-quality servo system for pressure or volume flow control enables the most precise force and position control (closed-loop control).

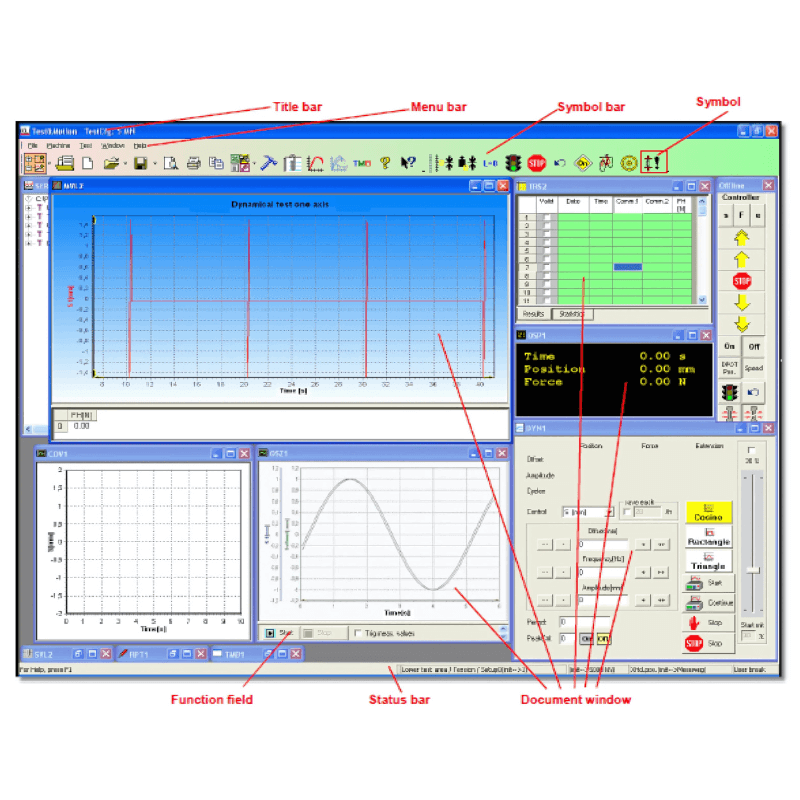

Universal Testing Software

Innovotest Universal is the testing industry’s most powerful and advanced testing software. Its intuitive workflows are designed to simplify operator training, increase testing efficiency, and minimize safety hazards. User can Configure unlimited Live Displays to show force, displacement, time, and results to provide users with immediate feedback on current test status. Graphs, most typically displaying force vs. displacement data or stress vs. strain data, can easily be viewed in more detail by pinching to zoom. Multiple graphs can be displayed in the workspace, including control charts in a completely customizable layout. Create customized report templates that ensure a professional and consistent style for reporting test results. Reports can be generated, printed, and emailed with the press of a button. Report format options include CSV and PDF
