Portable Weather Station – Weather Monitoring System

Description

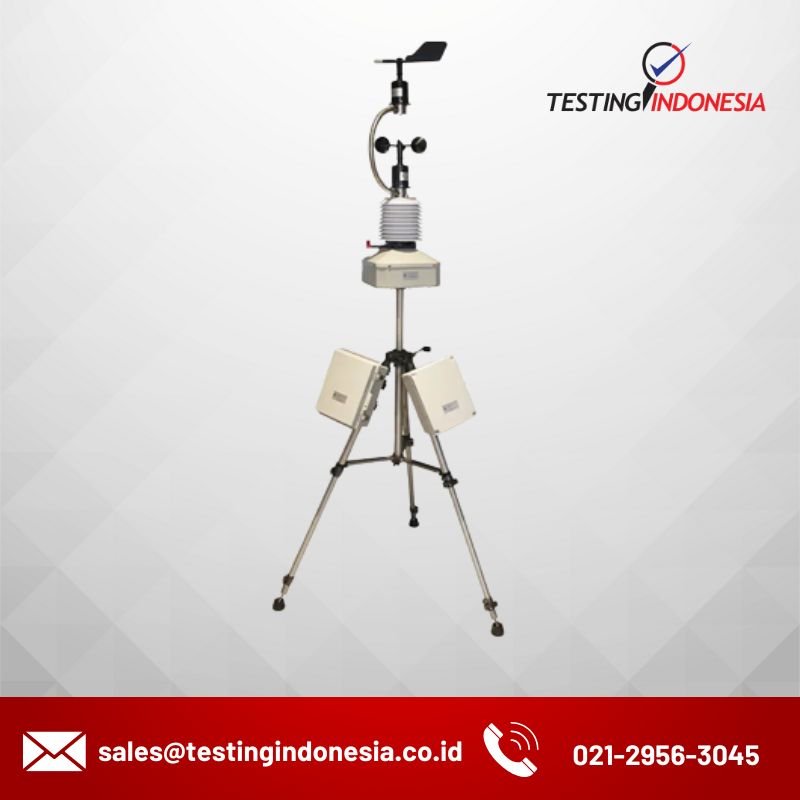

RK900-03 Portable Weather Station is a high-integrated mini weather station of micro-power consumption, equipped with a lightweight telescopic tripod for rapid installation. Its functions as : short-term meteorological observations; chronically continuously monitoring small weather station  and adaptable for mobile real-time data collection. Five sensors are included, such as wind direction, wind speed, barometric pressure, temperature, humidity sensor  (others can be customized). The test data can be transmitted to a fixed meteorological data center or vehicle mobile center system via RS232, RS485, USB or GPRS wireless communications.

Specifications

Measure item Measure range Resolution Accuracy
Wind speed 0-45m/s 0.1m/s ±(0.3±0.03V)m/s
Wind direction 0-360º ±0.5℃
Atmospheric temperature -50-+100℃ 0.1℃ Attached
Atmospheric humidity 0-100%RH 0.1%RH ±3%
Atmospheric pressure 10-1100hPa 0.1hpa ±0.3hPa
Item Details
Storage capacity 4M,if stored hourly, you can store data for one month.
Meteorological monitoring software(for free) Use to real-time display, analysis and storage data on the PC
Communication mode Default R232,RS485 & GPRS is optional
Supply Recharged 4.8 AH lithium battery or ac adapter(AC100-240V) or 12DC
Power consumption <1W
Electronic compass(optional) With electronic compass when installation does not need to manually to the north
Portable aluminum alloy instrument box(optional) 600*200*500mm
Installation The AWS can complete the installation within 1 minute
Ingress protection IP65
Operating temperature -40℃-+70℃
Dimension 1375 mm(Shrinkage at 1135 mm,Height can be customized.)
Weight(unpacked) 5kg

Product Application

  • Solar PV Industry
  • Agricultural
  • Highways And Railways
  • Hydrological Monitoring
  • Courtyard
  • Meteorological Science Research
