Pressure Transducers (Low Pressure) (VW)

Category: Tags: , Brand:

Description

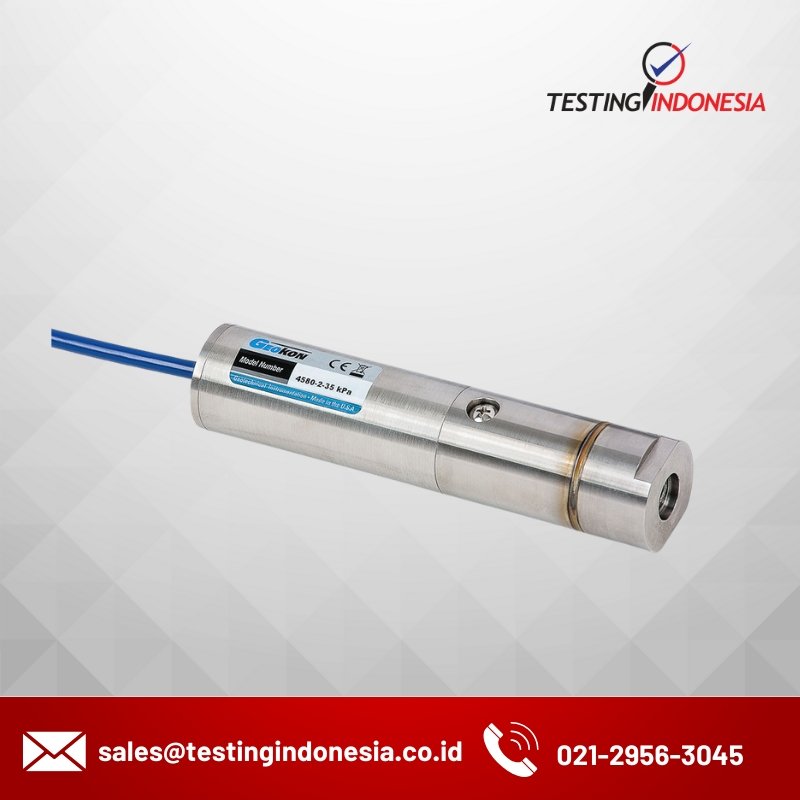

The Model 4580-2/2V/3V Pressure Transducers are designed for very low fluid pressure measurements, such as groundwater elevations in wells, water levels in streams, weirs, flumes, etc. Changes in water levels of as little as 0.2 mm can be measured.

Specification

Standard Ranges
  • 4580-2 | 35 kPa
  • 4580-2V | 17, 35 kPa (available on request)
  • 4580-3V | 7 kPa (available on request)
Over Range
  • 1.5 × rated pressure
Resolution¹
  • 0.025% F.S.
Accuracy
  • ±0.1% F.S.
Linearity
  • <0.5% F.S. (±0.1% F.S. optional)
Temperature Range²
  • −20°C to +80°C
Length × Diameter
  • 4580-2(V) | 165 × 38 (Model 4580-2V available on request)
  • 4580-3V | 165 × 63.5 mm (available on request)
