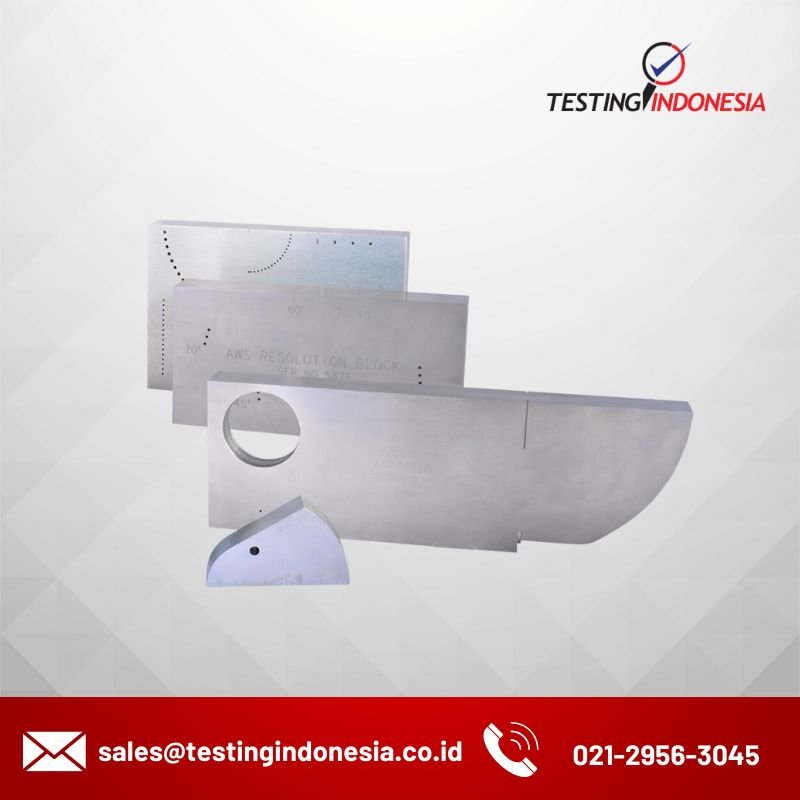

Reference Blocks

Name: Testingindonesia
Rating: 5

Description

Reference Block V1 allows to:

determine the insertion point of ultrasonic oscillations and distance from the piezoceramic plate to the probe housing with accuracy ± 0,5mm;
define the angle of input of the ultrasonic oscillations with accuracy ±1 angle degree;
define the uncontrollable (dead) zone (for steel) straight beam ultrasonic piezoelectric transducers;
determine the linearity of ultrasonic scanning horizontally;
configure the speed and sensitivity of the scan of straight beam, angle beam and dual element piezoelectric transducers.

Reference Block V2 allows to:

calibrate the scanning of flaw detectors through the expansion velocity of ultrasonic waves, working with straight beam piezoelectric transducers;
calibrate the scanning of flaw detectors through the expansion velocity of ultrasonic waves, working with angle beam piezoelectric transducers;
set conditional sensitivity of ultrasonic flaw detectors with straight beam and angle beam piezoelectric transducers;
determine the output point of ultrasonic oscillations and distance from the piezoceramic plate to the probe housing;
define the angle of input of the ultrasonic oscillations into steel.

Specifications of Reference Block V1

Sample is made from low carbon fine-grained steel with a small damping coefficient.
Expansion velocity of longitudinal ultrasonic oscillations in the calibration block at the frequency 5.0 MHz and at the temperature of 20(± 5) °C is 5920(± 30) m/s.
Expansion velocity of shear (transversal waves) ultrasonic oscillations in the insertion material into calibration block at the frequency 5.0 MHz and at the temperature +20(± 5) °C is 2670(±100) m/s.
The geometrical dimensions of the sample corresponds to ISO 2400, DIN 54120, BS 2704.

Specifications of Reference Block V2

Expansion velocity of longitudinal ultrasonic oscillations in the calibration block at the frequency 5.0 MHz and at the temperature 20(± 5) °C is 5920(± 30) m/s.
Expansion velocity of transversal ultrasonic oscillations in the insertion material into calibration block at the frequency 5.0 MHz and at the temperature of 20(± 5) °C is 3255(±15) m/s.
