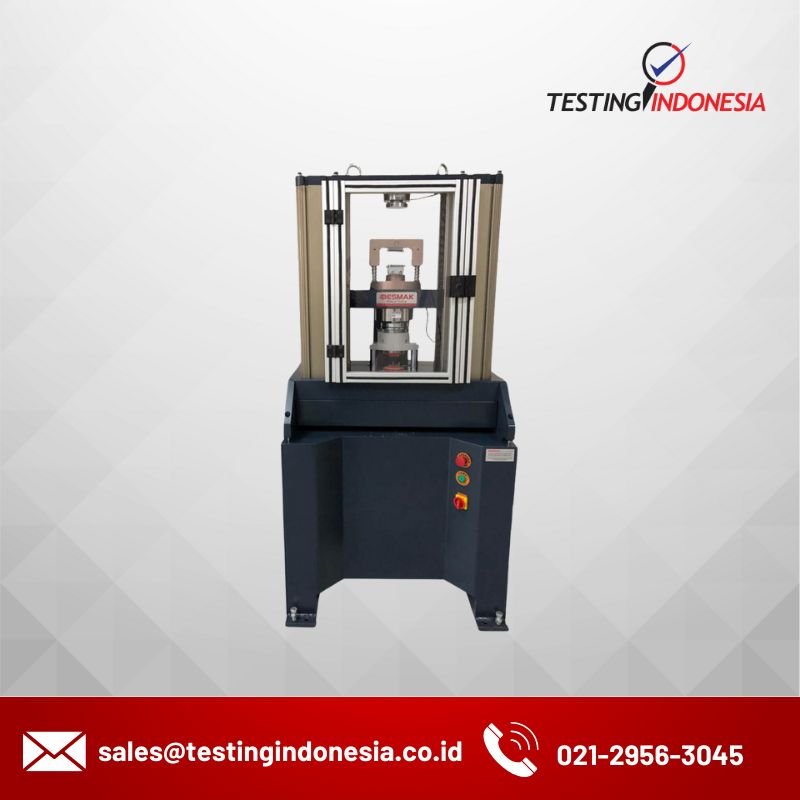

Servo-Electromechanical Cement Test Machine with Dual Test Area

Name: Testingindonesia
Rating: 5

Standards:
✅EN 196-1 ✅459-2 ✅1744-1 ✅1015-11 ✅13459-2 ✅ASTM C109 ✅BS 3892-1 ✅4551-1 ✅EN/ISO 679

Category: Testing Machine For Cement Tag: Servo-Electromechanical Cement Test Machine with Dual Test Area

Description

BESMAK offers advanced solutions for all varieties of bulding materials testing, including standard and static testing. Backed by more than 30 years of experience, BESMAK provides the technology and the specialized expertise labs need to perform accurate, repeatable tests that ensure materials and components meet standards. These complete solutions include:

• Highly stiff, floor-standing servo-hydraulic load frames for a range of force requirements

• Intuitive, versatile and user-friendly software with powerful test design capabilities

• Digital controllers with high channel density, high capacity and superior configurability

• Rugged, high-performance grips and fixtures

A compression test determines behavior of materials under crushing loads. The specimen is compressed and deformation at various loads is recorded. BESMAK can provide and offer a lot of options for users to test mortar samples such as single or double piston, single or double test space, electromechanical or servo-hydraulic universal cement test machines.

While manufacturing machines compliant to standards, BESMAK carries out a number of research and development studies and makes innovations that revolutionize compression machines. Sematron Touch Series Control and Software System, which is fully developed in-house, is capable of high speed data display with 1 kHz data acquisition speed, and reading of different sensors like LVDT, strain gauge, load cell and pressure transducers. Thanks to multiple channel, thecontroller unit allows to attach different frames with single hydraulic power pack.

With industrial 10 inch LCD display and user-friendly BESMAK Universal Testing Software, users can view the real time graphs and analyze the data point by point, make and save their own test templates, create their own test methods, email results directly from LCD, use the machine in their own language and get online support from BESMAK team.

BCE-ED series Servo-Electromechanic Universal Cement Test Machine with Dual Test Area comes with

• Rigid 2-Coulmn type frame

• 1 x 50 mm distance pieces

• 2 channel electronic controller

• Linux based 10 inch industrial LCD display with built in test software

• PC software

• Software user manual

Ürün Kodu	Ürün Adı
BCE-200ED	Servo-Electromechanical Cement Test Machine with Dual Test Area, Capacity 200kN/15kN
BCE-250ED	Servo-Electromechanical Cement Test Machine with Dual Test Area, Capacity 250kN/25kN
BCE-300ED	Servo-Electromechanical Cement Test Machine with Dual Test Area, Capacity 300kN/15kN

Spesification

Compression range 100 to 300Kn
Bending range 10 to 100 kN
Complies to EN 196-1, 459-2, 1744-1, 1015-11, 13459-2, ASTM C109, BS 3892-1, 4551-1, EN/ISO 679

Frame

Rigid load frame in 2-column construction
The columns are screwed free from play to the machine’s upper and lower blocks
Suitable for testing 40×40×40, 50×50×50 mm cube and a different size of core cylinder samples
Upper platen spherically seated to allow an inclination up to 3° for homogenous loading
Given with corrosion-resistant distance platens for different size samples (10 mm, 20 mm, 50 mm, 80 mm)
All transmission surfaces are additionally plane – parallel – treated and fine machined
Lower platen marked to allow centering of both cubes and cylinders
Safety door switch for secure operations
Piston limit switch for secure operations
At the end of the test process to start a new test the piston returns to the default position

Load measurement and control

Load measurement and control is carried out with a loadcell with a sensitivity of class 1 or better according to EN-ISO-7500-1 standard.

Control Unit and Display:

Fully automatic compression test machine with close-loop “Sematron Touch Series” advanced controller
Controller has 1000 Hz (1 kHz) data acquisition-processing and automatic calibration feature (2,5 kHz option is available)
Controller has 2 channels but can be extendable up to 8 channels
Automatic user-defined pace rate adjustment with high accuracy
Users can hold the load at any desired point for a specific time
Linux based 10 inch LCD touch screen with built-in test software
Fast response real-time graphic display
Automatic Calibration feature for all connected sensors
Users can perform Module of Elasticity tests according to different standards. (This option need Displacement Sensors to read strain)
