SF-250A Powersport

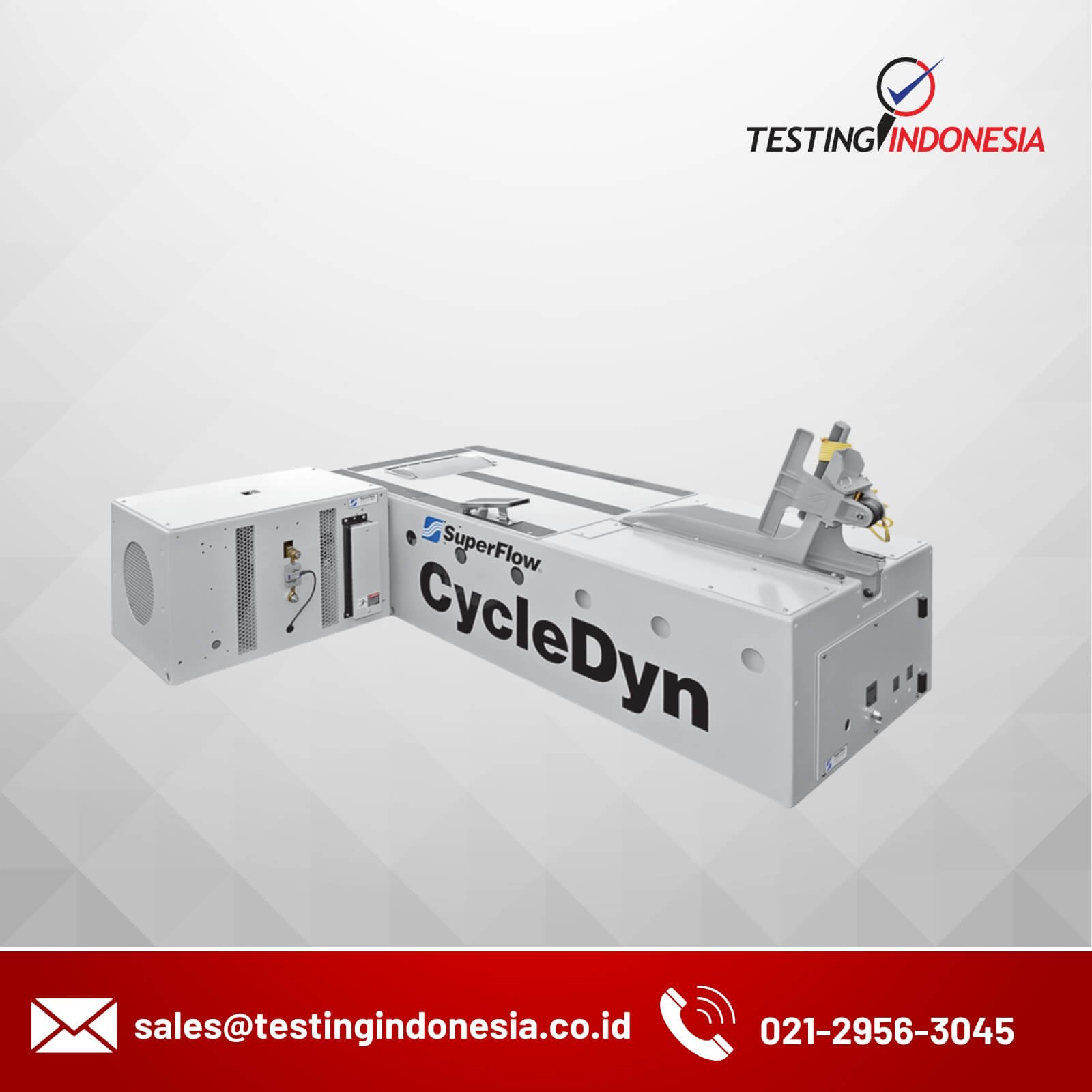

The SuperFlow CycleDyn chassis dyno is used worldwide by motorcycle dealerships, educational institutions, and professional race teams to test motorcycles, karts, ATVs (quads), and similar vehicles within a safe, controlled environment. It is rated for 750+ hp (inertia), 500+ hp (eddy-current) and 200mph. The CycleDyn motorcycle dyno utilizes SuperFlow’s rugged, impact resistant hand held controller for easy operation. The CycleDyn is available as inertia only, with eddy-current load for controlled acceleration, steady state (mapping) and step tests, or with eddy-current load and an AC motor. Loaded models also perform inertia only runs, giving users the capabilities of two dynos in one unit.

Because it is manufactured by SuperFlow, the CycleDyn delivers on both price and quality. This motorcycle dyno is not constructed with a cheap angle iron frame wrapped in thin sheet metal. Instead, we use sturdy steel plates and weld them at the seams to create a strong, vibration resistant enclosure and sealed air compartment for the innovative road speed fan options. The CycleDyn comes standard with a motorized front wheel restraint that accepts motorcycles with wheelbases from 48”- 72” (122 – 183cm) and an air-actuated front wheel clamp. It also comes standard with a temperature compensated load cell (eddy-current models) for precise torque measurement during loaded testing. Also standard is a complete data acquisition and control system that includes with our industry leading WinDyn software. So, whether you want to add a profit center to your business, justify customer purchases, or increase the on-track performance of your race motorcycles, the CycleDyn high-performance motorcycle chassis dynamometer can handle it.

Typical Applications

  • Racing
  • Performance testing and tuning
  • Research and Development
  • Diagnostics
  • Durability and quality control
  • Emissions and fuel consumption testing
  • Education
  • Vehicle certification


Peak Power750 hp (559 kW)
Peak Absorbed Power500 hp (373 kW)
Max Speed200 mph (322 km/h)
Adjustable Wheelbase58 – 84 in. (147 – 213 cm)
Roll Diameter20 in. (51 cm)
Roll Width16 in. (41 cm)
Base System Inertia323 lbs (147 kg)
Axle Weight1,000 lbs. (454 kg)
Air Requirements80-100 psi (552-690 kPa)
Power RequirementsDynamometer: 240V AC, 30 amp, single phase Computer & Sensor Box: 120V-240V AC, 15-8 amp
Dimensions85L x 69W x 21H in. (216 x 174 x 53 cm)
Weight1,800 lbs (816 kg)


Product Brochure CycleDyn-FAQ CycleDyn-Test-Cell-Requirements
