SmartSolo IGU-16HR 3C

3 Component Smart Seismic Sensor
Easy to Deploy. Rugged and Reliable.
Patented Modular Design for Easy Battery Replacement
Fast Charging and High Speed Data Downloading

Description

More about SmartSolo IGU-16HR 3C

The SmartSolo IGU-16HR 3C seismic node leverages the advancements in mobile internet technology to offer a cost-effective and high-performance solution for seismic exploration. Designed for both active and passive seismic surveys, this node is suitable for a wide range of applications including energy and mineral exploration, urban seismic surveys, earthquake monitoring, and geophysical scientific research. It shares peripherals with the IGU-16 and IGU-16HR models, allowing for significant equipment investment savings.

Incorporating reliable, low-power components commonly found in mobile phones, the SmartSolo IGU-16HR 3C is a smart sensor that efficiently captures and records high-quality seismic data. Its design prioritizes simplicity in function and structure, making it user-friendly, cost-effective, and capable of operating autonomously even in the most challenging environments.

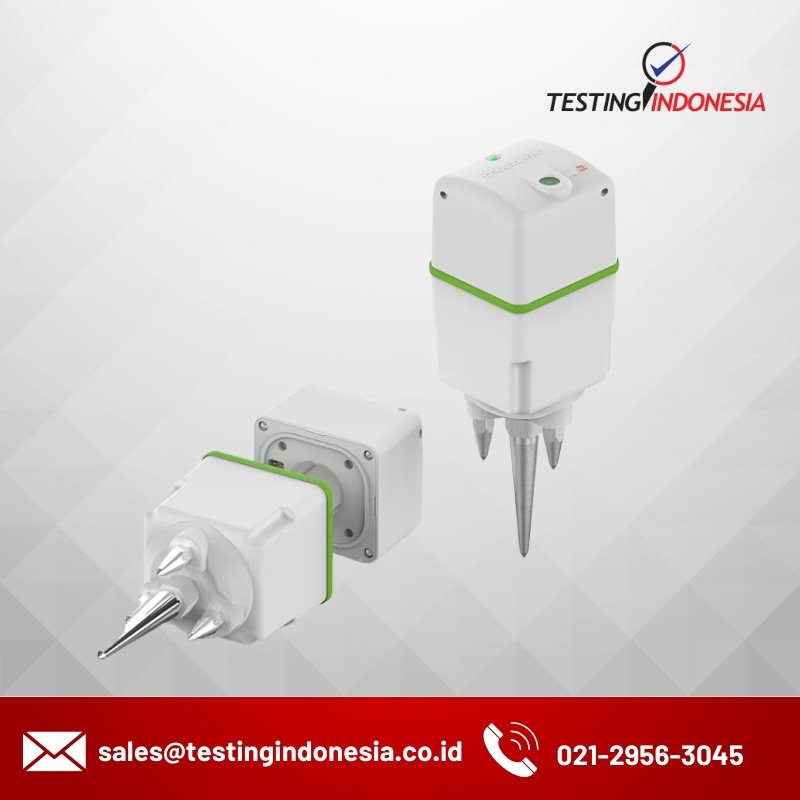

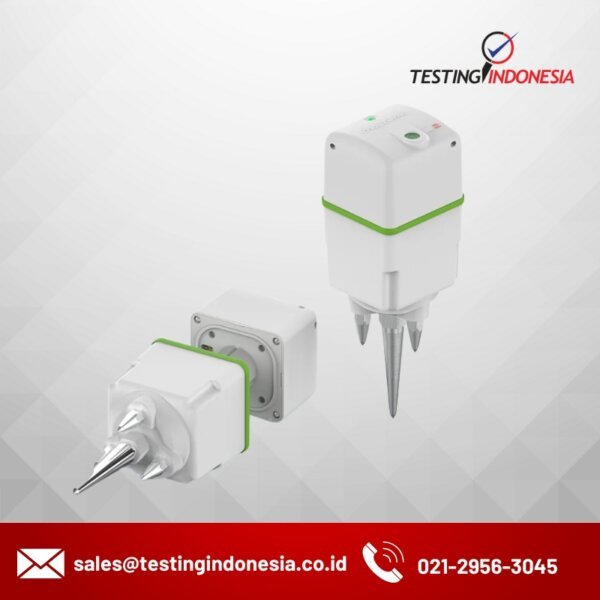

The SmartSolo IGU-16HR 3C features a three-component (3C) geophone, specifically designed for land-based applications such as HVSR, MASW, and vibration analysis. This 3C geophone is robust, lightweight, and convenient for field operations. It houses one vertical and two horizontal high-precision geophone sensors, securely coupled and mounted within a durable, waterproof case equipped with 75mm steel spikes.

Key Features

  • High-quality 5Hz 3-Component Geophones for accurate seismic measurements.
  • Rugged and durable construction for reliable performance in any environment.
  • Compact and lightweight design for easy deployment and portability.
  • Advanced connectivity options for seamless data transmission and integration.
  • Real-time monitoring capabilities for immediate observation and analysis.

SmartSolo offers a variety of 3C geophones with frequency ranges from 5Hz to 10Hz

Specification

General & Power

Parameter Specification
Dimensions (w/o spike) 103mm (L) × 95mm (W) × 187mm (H)
Weight 2.4 kg (including internal battery and spike)
Data Storage 64 GB
Recharge Time < 6 hours
Operating Life (@ 25°C) • 30 days Continuous @ 2ms


• 60 days Segmented (12h ON / 12h SLEEP) @ 2ms | | External Power Supply | Exchange EB battery | | Communication | — |

Physical & Environmental

Parameter Specification
Seismic Data Channels 3
ADC Resolution 32 bits
Sample Intervals 0.25, 0.5, 1, 2, 4, 8, 10, 20 ms
Preamplifier Gain 0 dB to 36 dB (in 6 dB steps)
Anti-Alias Filter 206.5 Hz @ 2ms (82.6% of Nyquist)


Selectable: Linear Phase or Minimum Phase | | DC Blocking Filter | 1 Hz to 10 Hz (1 Hz increments) or DC Removed | | Operating Temperature | -40°C ~ +70°C | | Charging Temperature Range | +3°C ~ +45°C | | Waterproof Rating | IP68 |

Acquisition Performance (5Hz vs. 10Hz)

Parameter 5Hz Option 10Hz Option
Natural Frequency 5 Hz 10 Hz
Spurious Frequency > 170 Hz (> 150 Hz horizontal) > 240 Hz
Distortion < 0.1% @ 12Hz (0° ~ 10° vertical, 0° ~ 3° horizontal tilt) < 0.1% @ 12Hz (0° ~ 10° vertical, 0° ~ 3° horizontal tilt)
Damping 0.7 0.7
Open Circuit Intrinsic Voltage Sensitivity 80 V/m/s (2.03 V/in/s) 85.8 V/m/s (2.18 V/in/s)

*Note: 5Hz parameters are specified at +22°C, and 10Hz parameters at +25°C (in vertical position for vertical geophone and horizontal position for horizontal geophone, unless otherwise stated).

Channel Performance

Parameter Specification
Maximum Input Signal ±2.5 Vpeak @ Gain 0 dB
Equivalent Input Noise 0.18 μV @ 2ms, Gain 18 dB
Total Harmonic Distortion < 0.0002% @ Gain 0 dB
Common Mode Rejection > 100 dB
Gain Accuracy < 1%
GPS Time Standard 1 ppm
Timing Accuracy ±10 μs (GPS Disciplined)
Cross Feed < -110 dB
System Dynamic Range 145 dB
Frequency Response 0 ~ 1652 Hz

*Note: All channel performance parameters are specified at 2ms sample interval, 31.25 Hz, 25°C, unless otherwise indicated.

Features

Design & Portability

  • New Generation Sensor: Smart 3-Component Seismic Sensor designed for modern field operations.

  • Compact & Lightweight: Features a small footprint (95mm x 103mm) for easy transport and deployment.

  • All-In-One Modular Design: Ensures maximum productivity, maintenance-free operation, and hassle-free battery replacement.

  • Simple LED State Indicator: Clear visual status—Green for "good to go" and Red for "no good."

Performance & Technology

  • Proven Geophone Core: Built on the highly regarded DT-SOLO HS geophone, available in 10Hz and 5Hz options.

  • High-Precision Timing: Equipped with a built-in GPS receiver and a disciplined high-precision clock.

  • Extended Recording Life: Capable of up to 30 days of continuous recording (see Technical Specs for details).

  • Broad Source Compatibility: Fully compatible with both vibroseis and impulsive energy sources.

Scalability & Cost Efficiency

  • Flexible Deployment: Scalable for projects ranging from a single station up to a million-station operation.

  • Shared Peripherals: Uses the exact same peripherals as the IGU-16 and IGU-16HR, maximizing your equipment investment savings.

  • Cost-Effective Solution: Delivers one of the most cost-effective seismic systems on the market.
